AR46.10-P-0600-05I Remove/Install Height Adjustment Motor

AR46.10-P-0600-05I Remove/install height adjustment motor
- with CODE (275) Memory package (driver seat, steering column, mirrors)

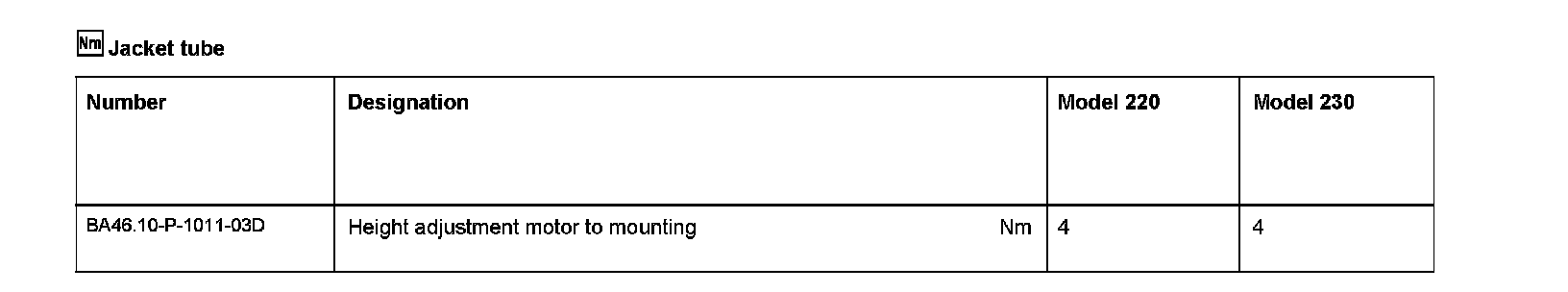

Jacket tube:

Component Identification:

Removing
1 Unclip height adjustment up/down motor connector (M20x2).
2 Detach cable holder (61).
3 Remove bolts of height adjustment up/down motor (M20m2).
4 Remove height adjustment up/down motor (M20m2) and detach gearing connection piece (60e).

Shown on model 220

Install
5 Insert height adjustment up/down motor (M20m2) and slide on gearing connection piece (60e).
6 Install bolts.
7 Align height adjustment up/down motor (M20m2) centrally with mounting console notch (arrow) and tighten bolts.
8 Attach cable holder (61).
