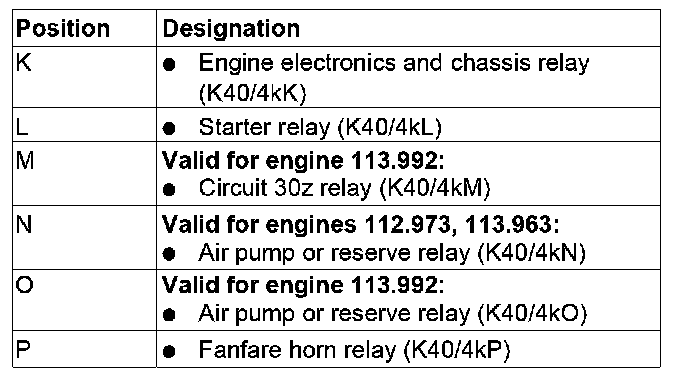

GF54.15-P-1257-02RA Relay Assignment of Fuse and Relay Box In Right Engine Compartment



GF54.15-P-1257-02RA Relay Assignment Of Fuse And Relay Box In Right Engine Compartment
- as of 1.6.02 up to 31.5.03

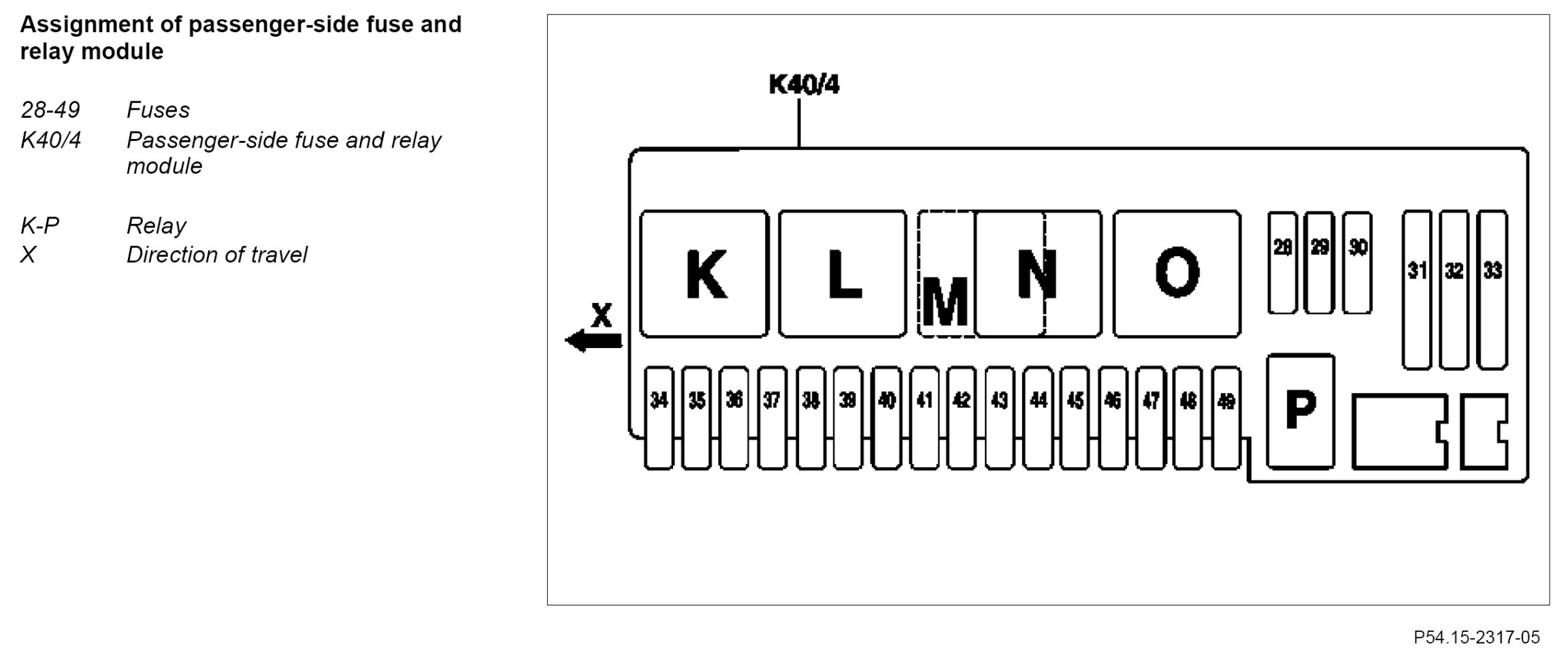

Component Identification:
