Distance Sensor: Service and Repair

AR54.70-P-0001R Remove/Install Distronic (DTR) Sensor
- with CODE (219) Distronic (DTR)

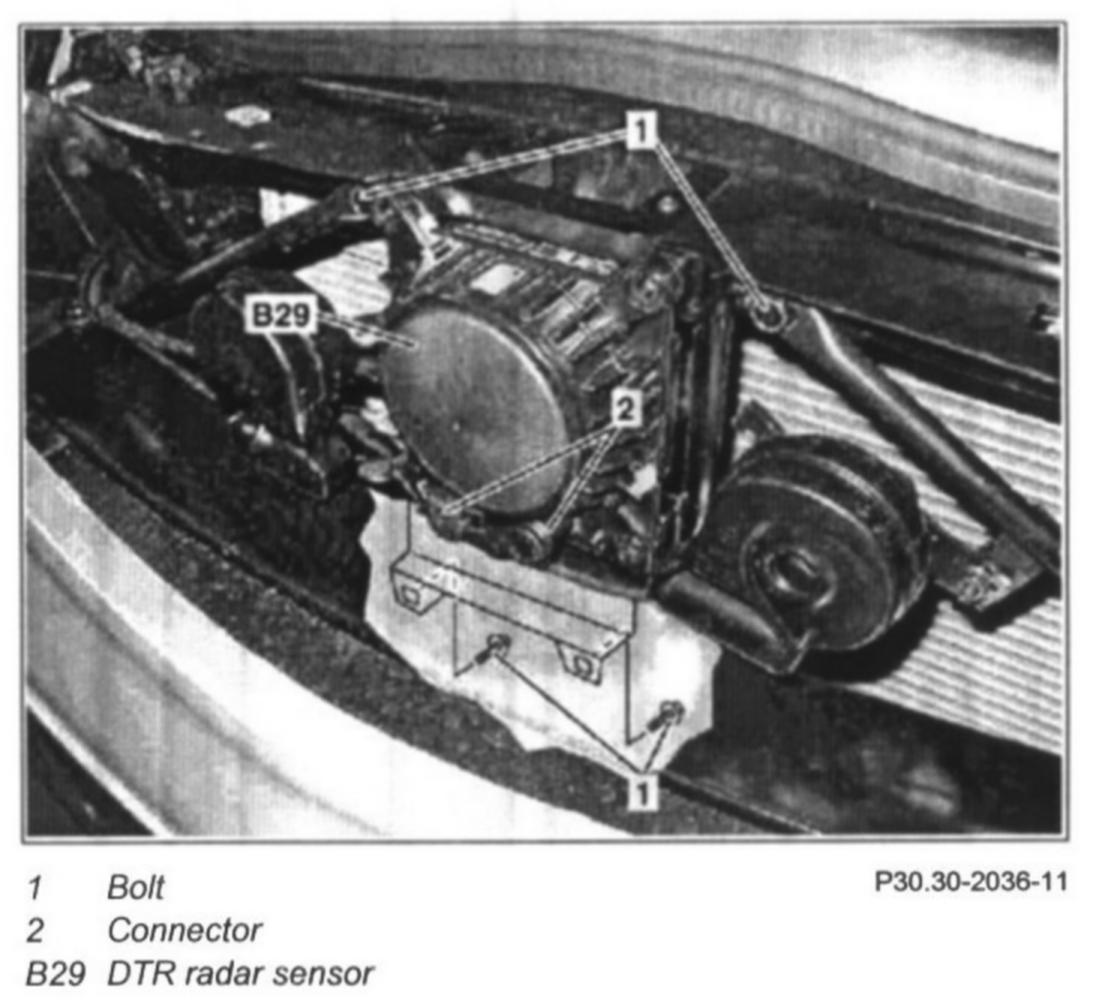

- DTR radar sensor






1 Remove key from electronic ignition switch (EIS)
2 Remove radiator trim
3 Disconnect connectors (2) from DTR radar sensor (B29)

NOTE: Installation: Replace cable straps.

4 Unscrew screws (1) and remove DTR radar sensor (B29)
5 Install in the reverse order
6 Check, correct Distronic (DTR) sensor adjustment
