Catalytic Converter: Service and Repair
AR49.10-P-5500R Remove/install
catalytic converter

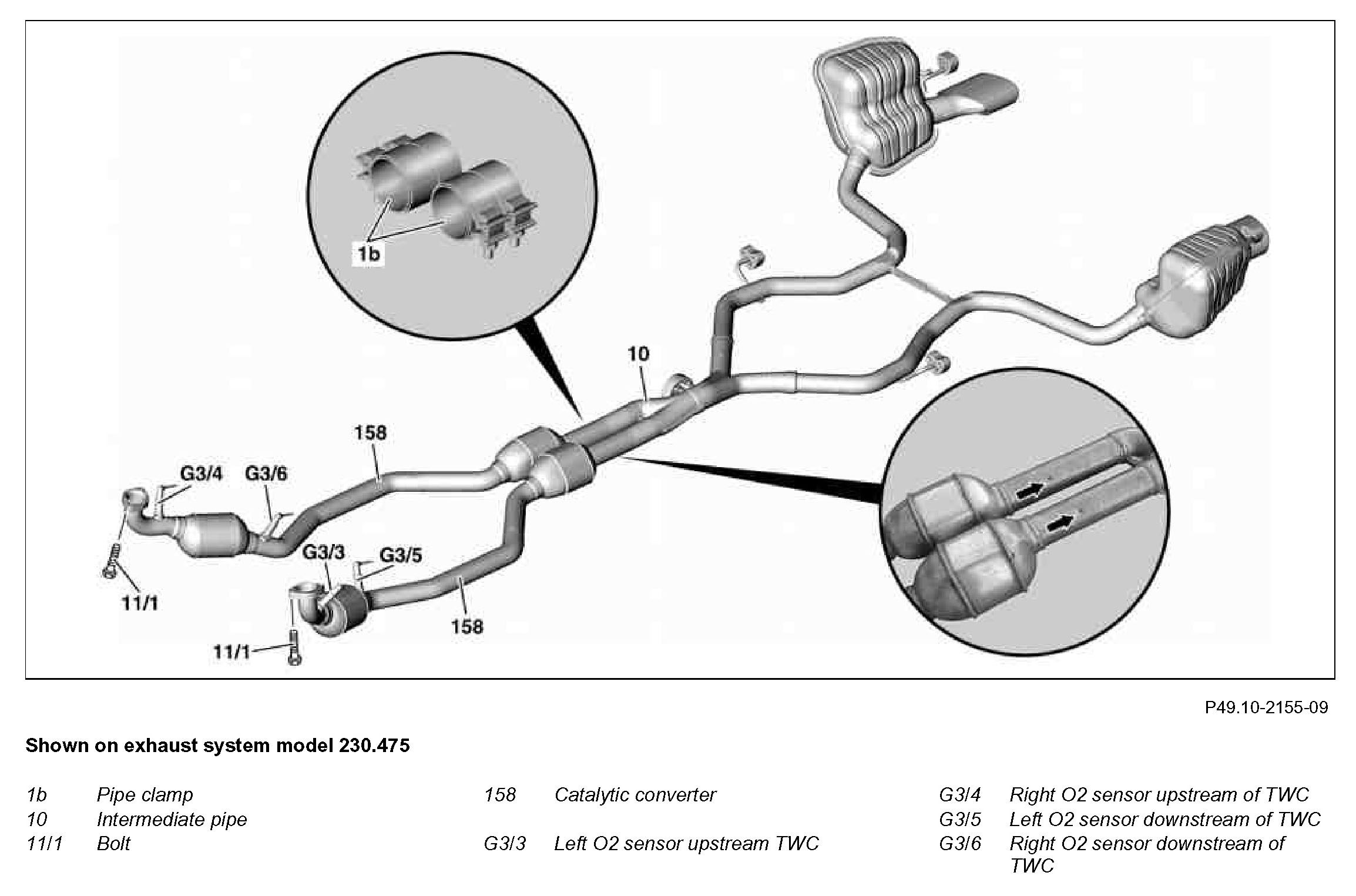

Component Identification:

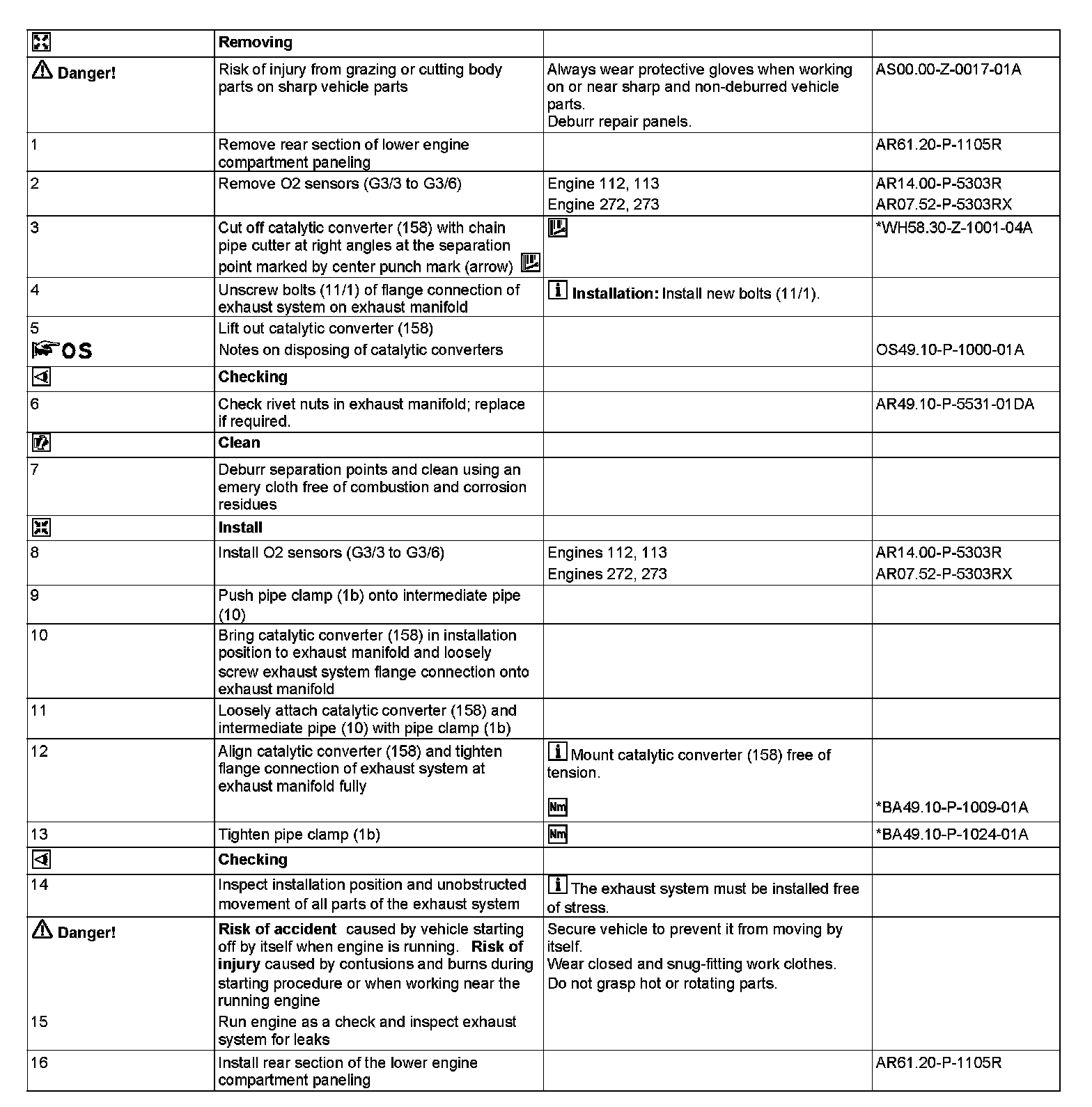

Steps 1-16:

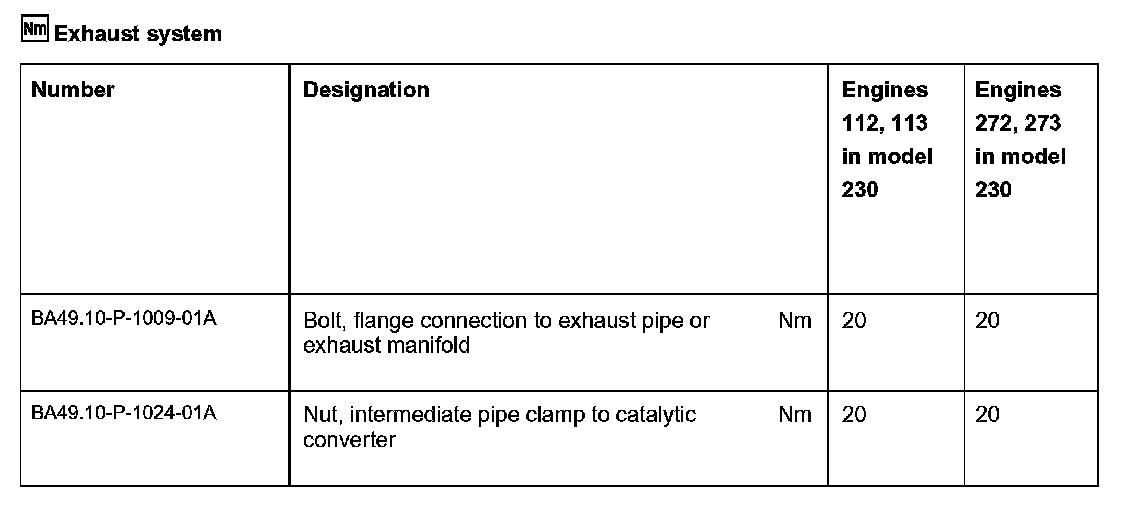

Exhaust system:

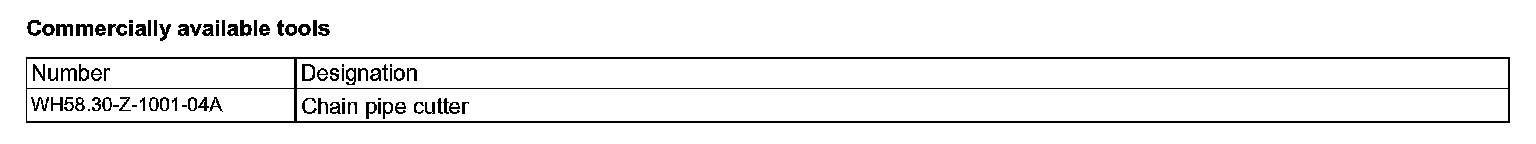

Commercially available tools:
