Fuel Tank Pressure Sensor, Location

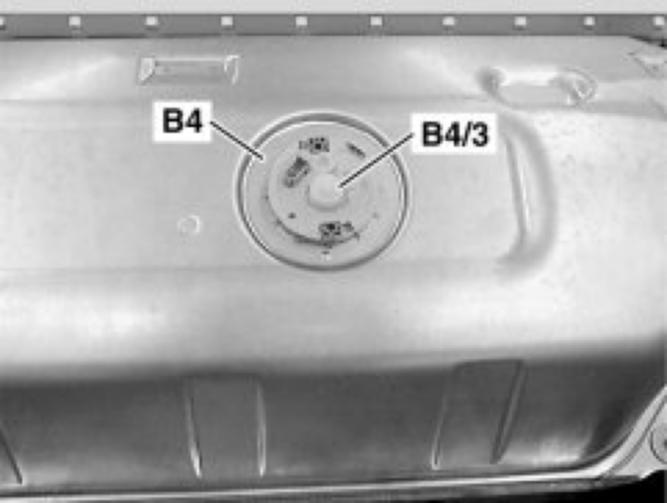

Fuel Tank Pressure Sensor, Position




B4 Fuel gage sensor
B4/3 Fuel tank pressure sensor

The fuel tank pressure sensor is located at the top of the fuel level sensor.
