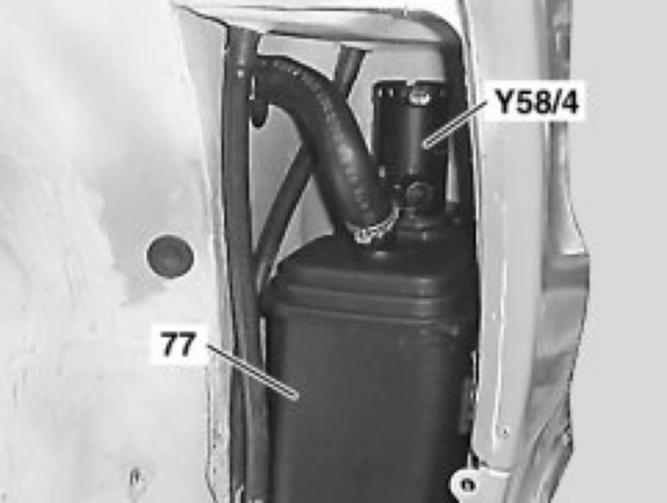

Activated Charcoal Canister Shutoff Valve, Location

Activated Charcoal Canister Shutoff Valve, Position




77 Activated charcoal canister
Y58/4 Activated charcoal canister shutoff valve

The activated charcoal canister shutoff valve is located in the front in the rear right wheelhouse.
