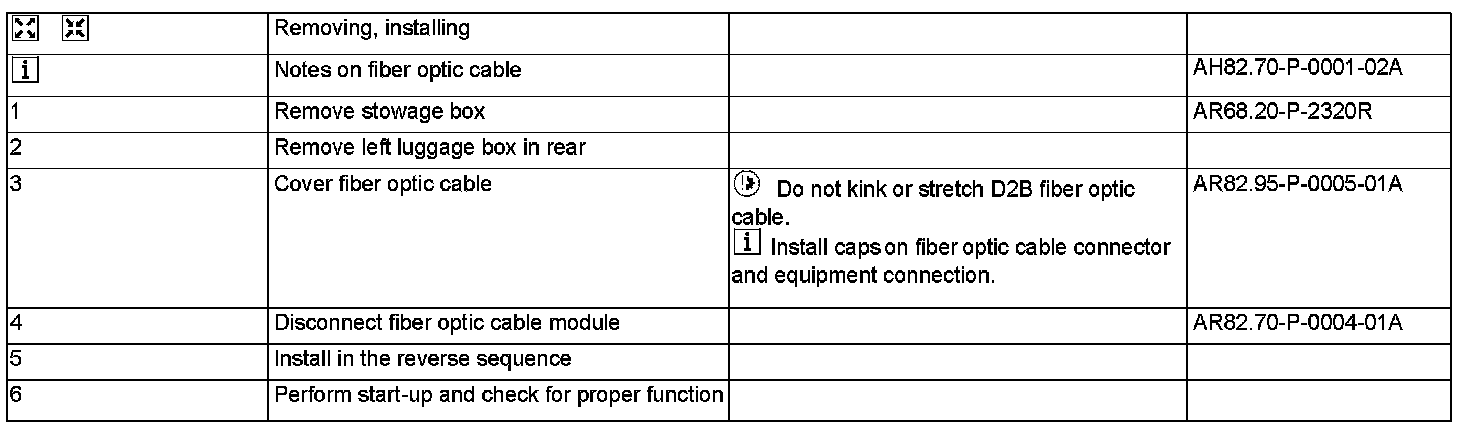

AR82.70-P-0004RC Remove/Install Fiber Optic Cable



AR82.70-P-0004RC Remove/Install Fiber Optic Cable

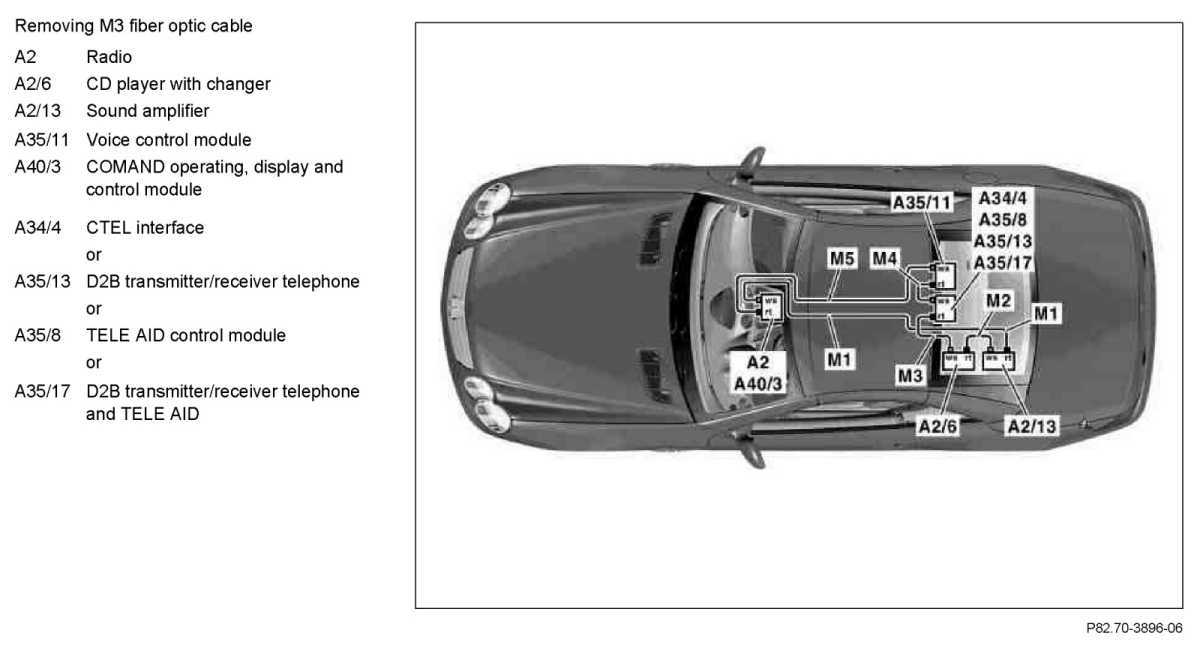

- Fiber optic cable between control modules below luggage box in left rear and control modules behind center armrest
- with CODE (810) Sound system
- with CODE (813) Voice control system (VCS)
- with CODE (819) CD changer
- with CODE (852) CTEL preinstallation assembly at dome
- with CODE (853) MB standard cellular telephone
- with CODE (854) MB portable CTEL
- with CODE (855) TELE AID
