Mercedes Benz
>>
2003
>>
SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Service and Repair
>>
AR13.22-P-1202R Remove/Install Poly V-Belt
AR13.22-P-1202R Remove/Install Poly V-Belt
AR13.22-P-1202R Remove/Install Poly V-Belt

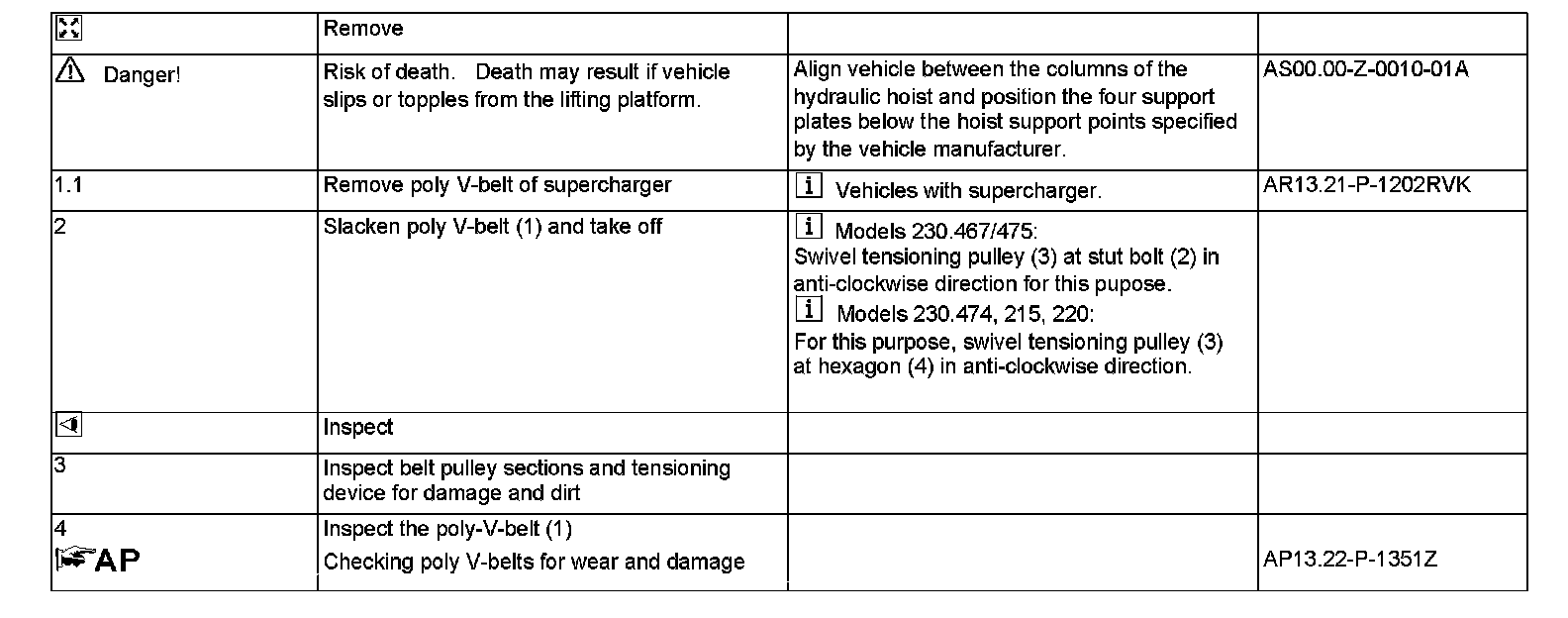

Steps 1-4:

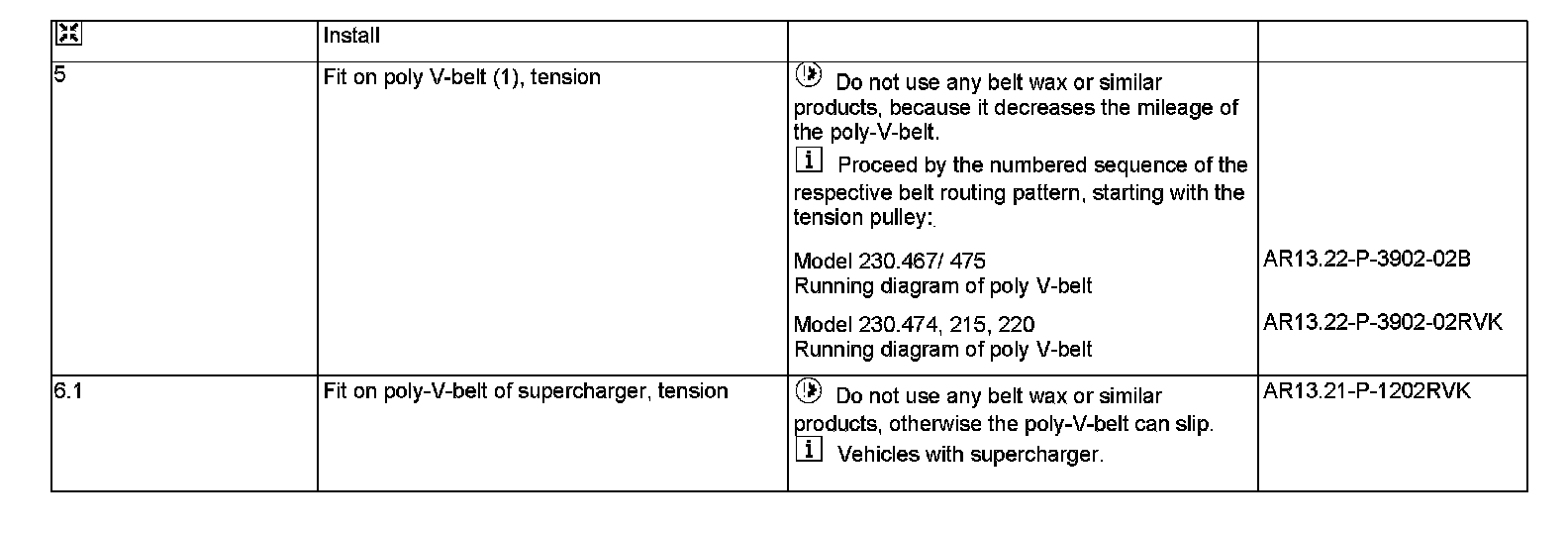

Steps 5-6:
