PE82.15-U-2000KA Headlamp Cleaning System (HCS)




Headlamp Cleaning System (HCS) PE82.15-U-2000KA

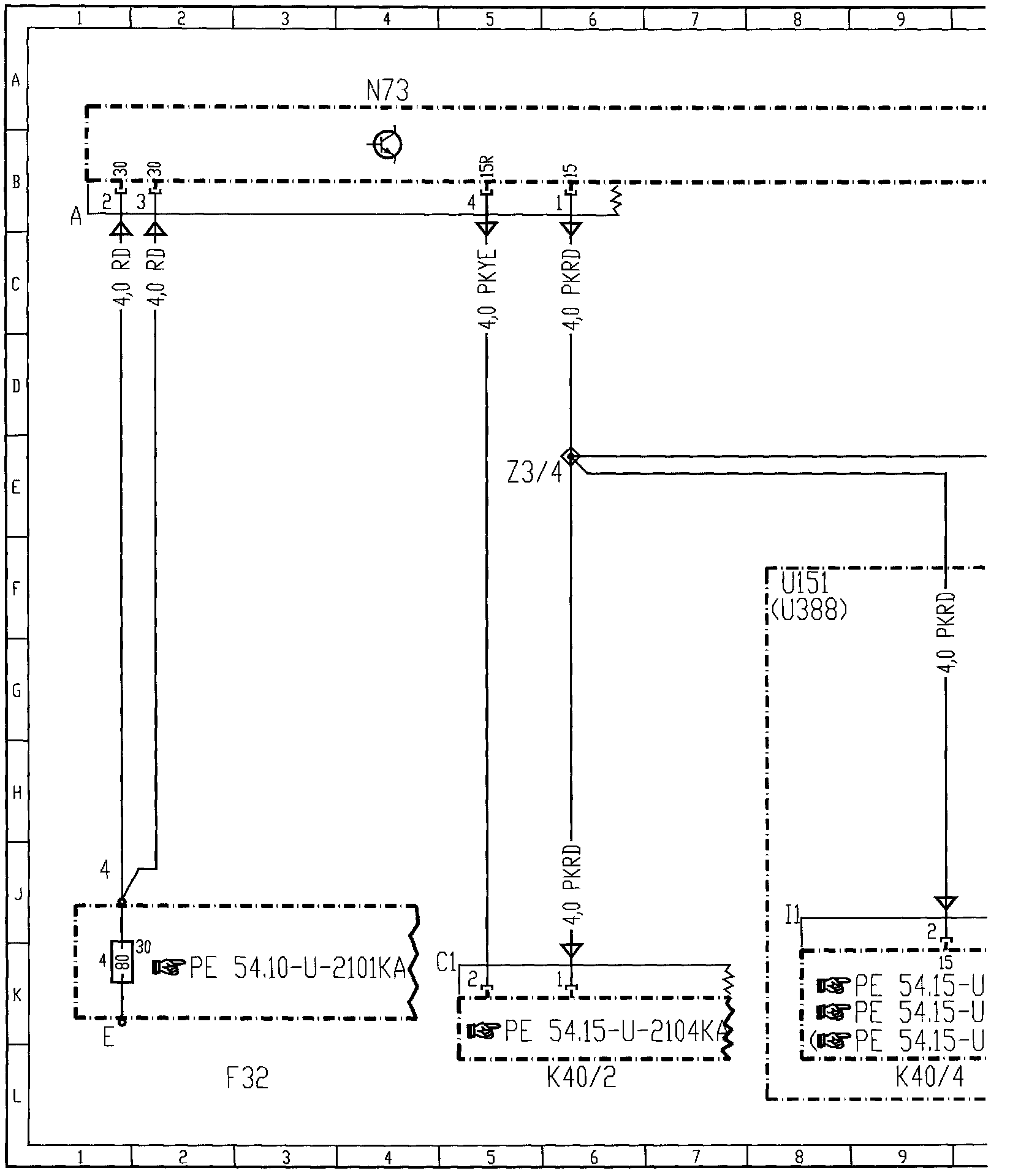

Diagram, Part 1:

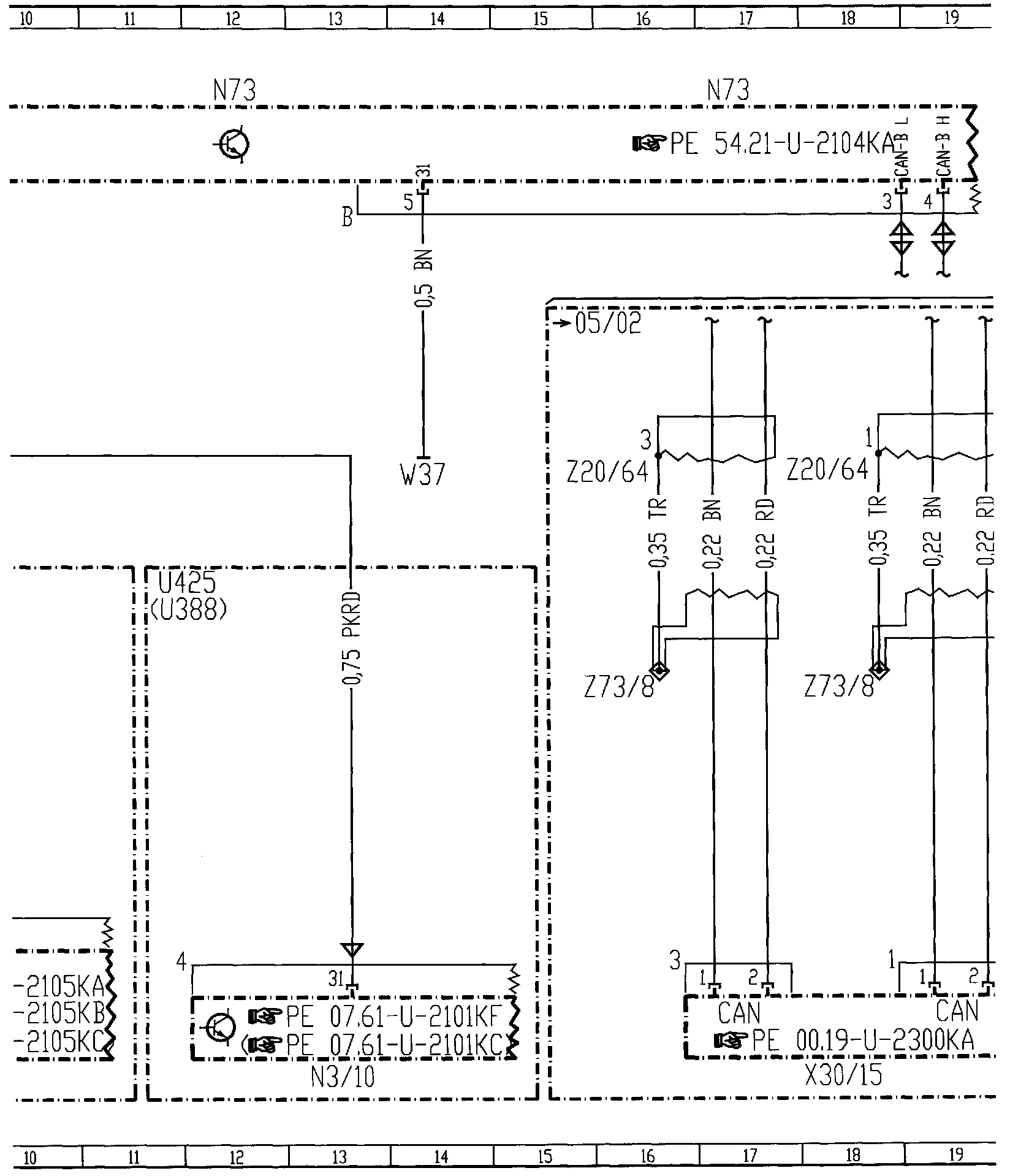

Diagram, Part 2:

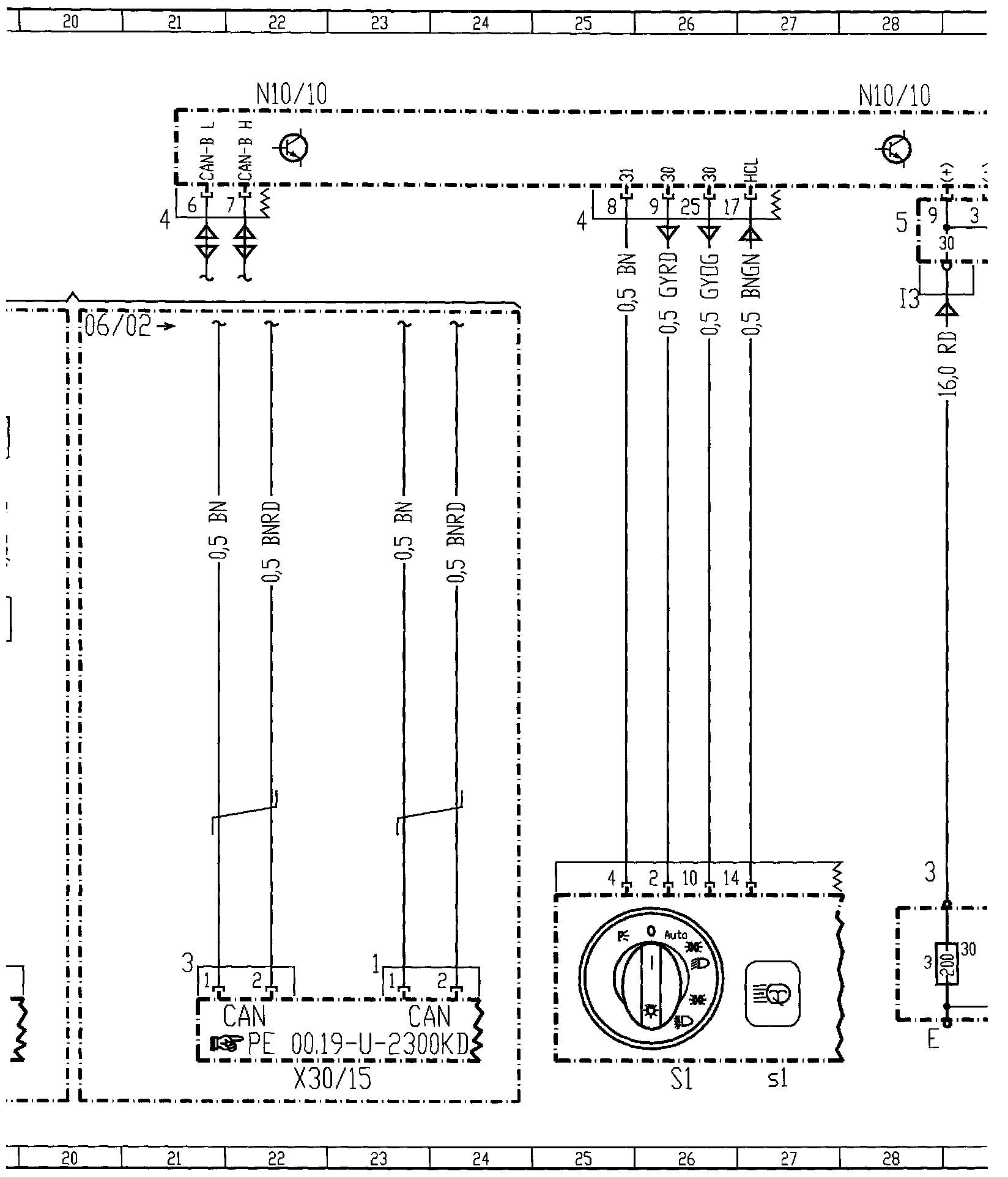

Diagram, Part 3:

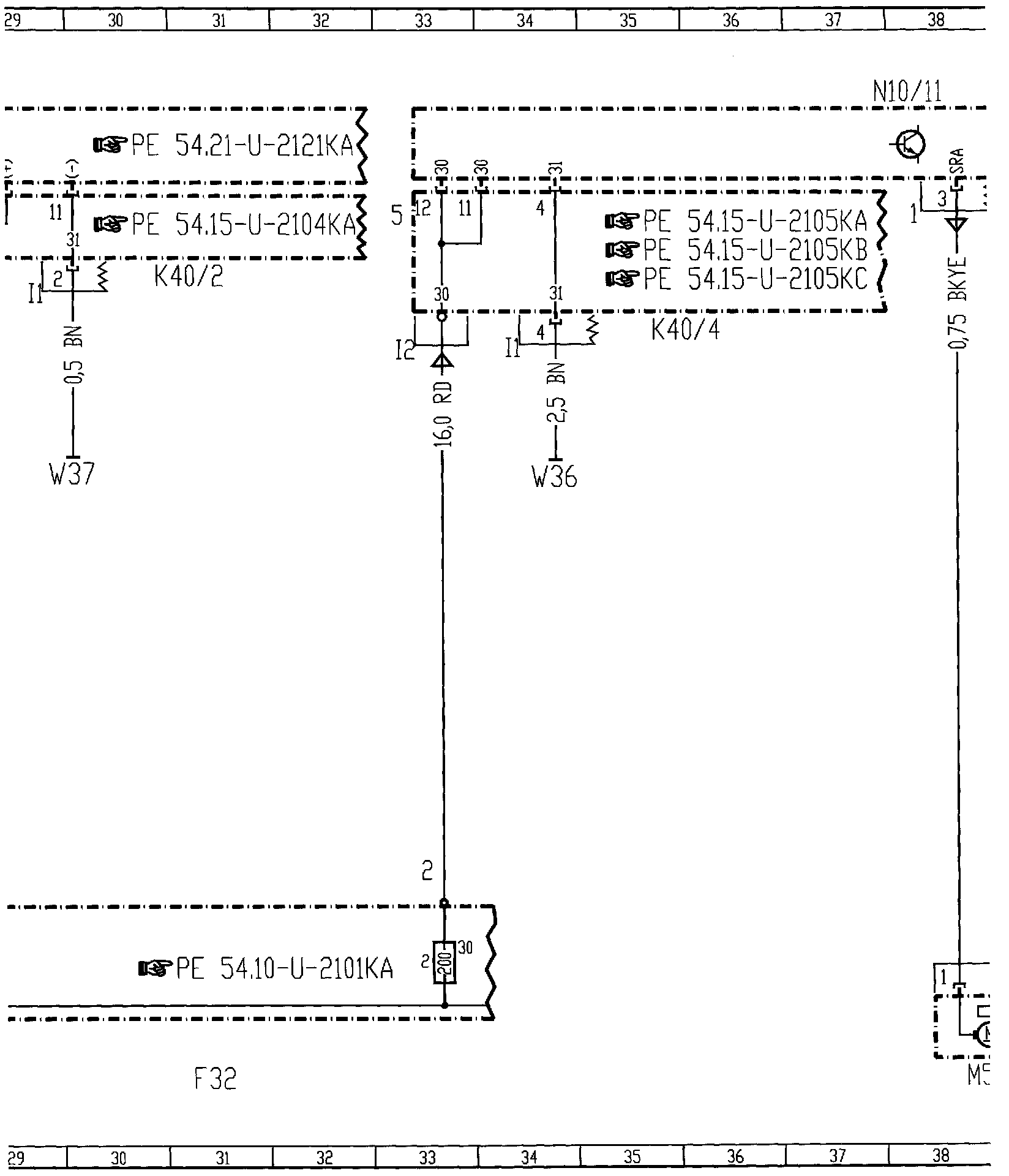

Diagram, Part 4:






Diagram, Part 5:






Diagram, Part 6:

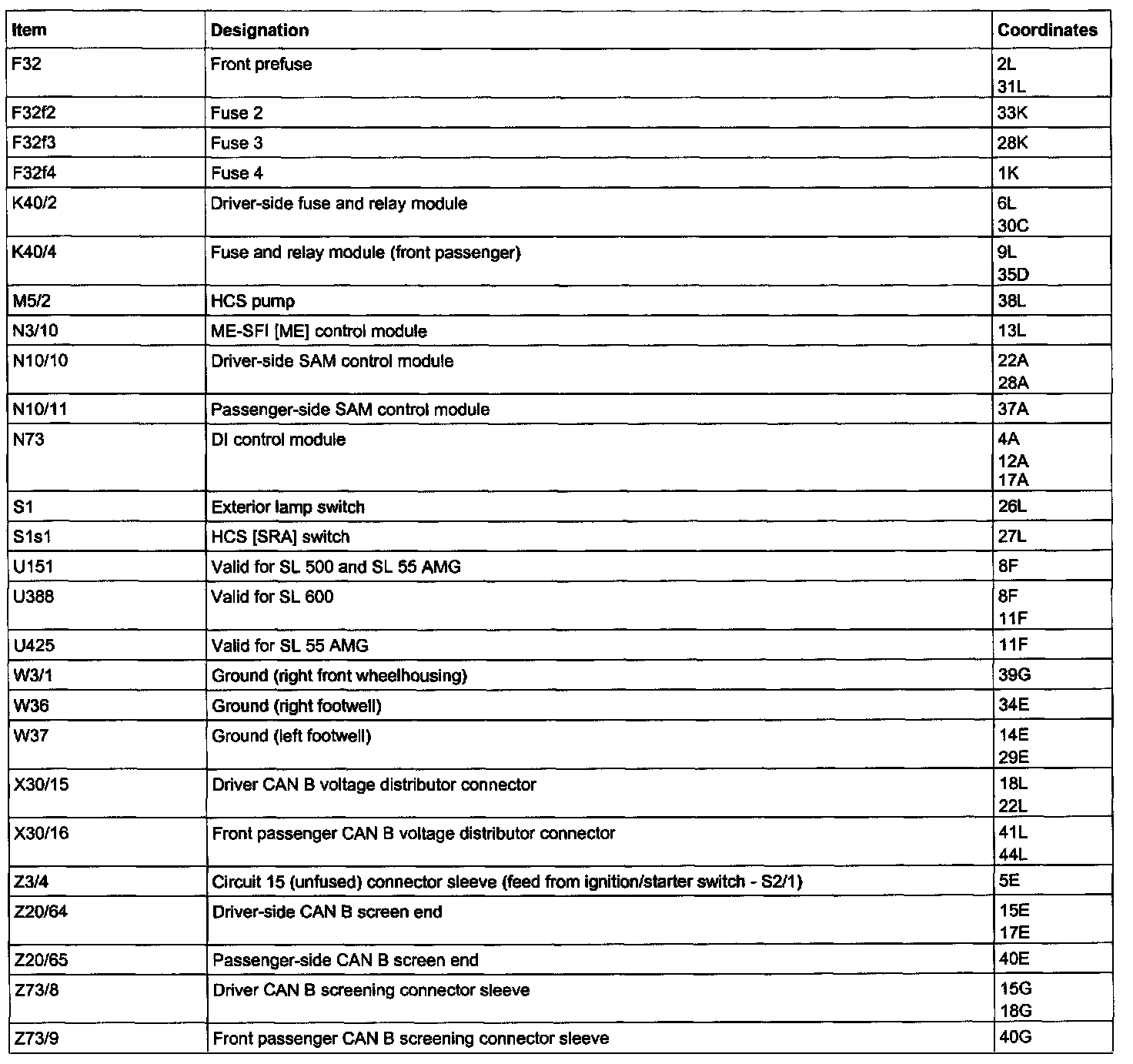

Component Description/Coordinates, F32 - Z73/9:
