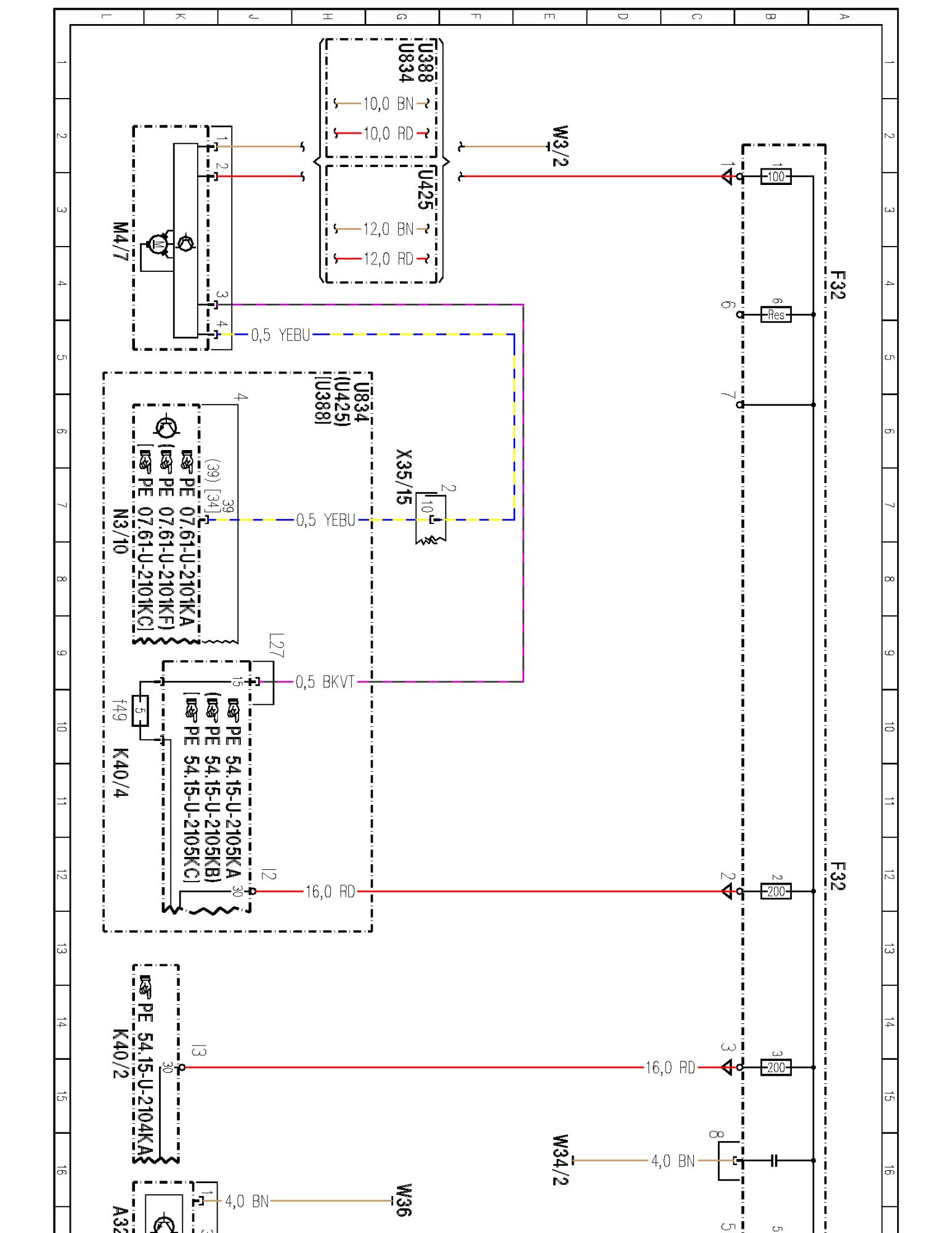

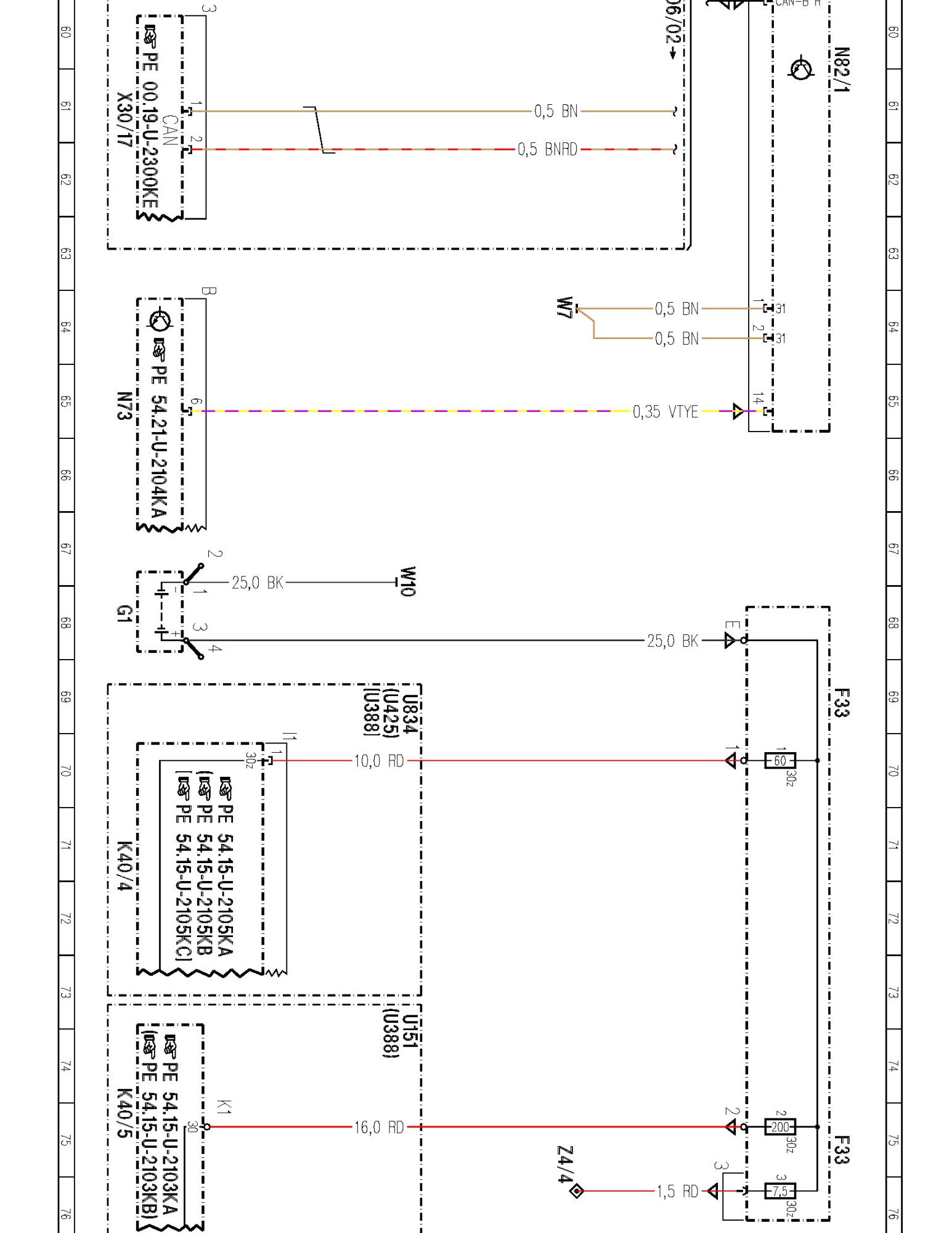

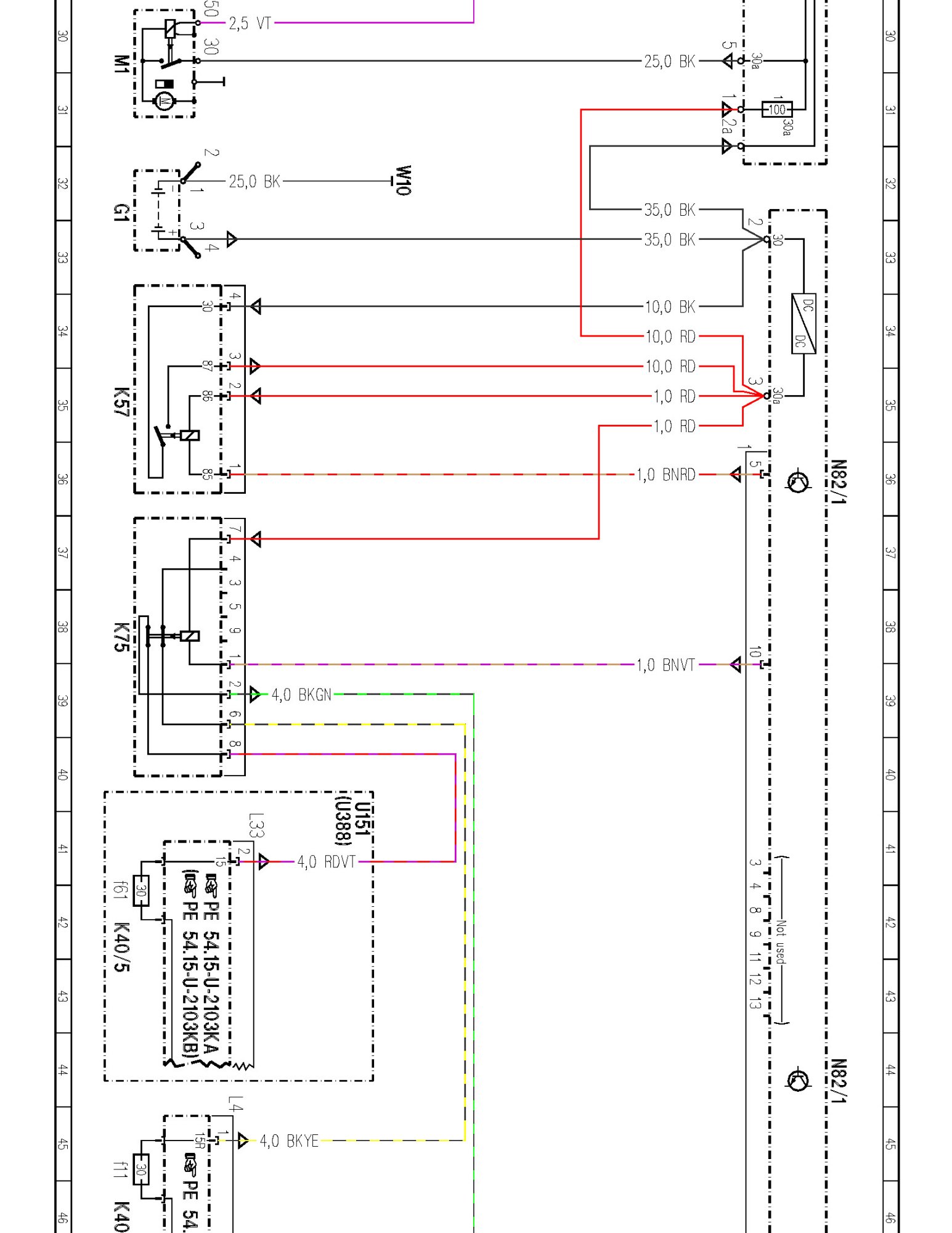

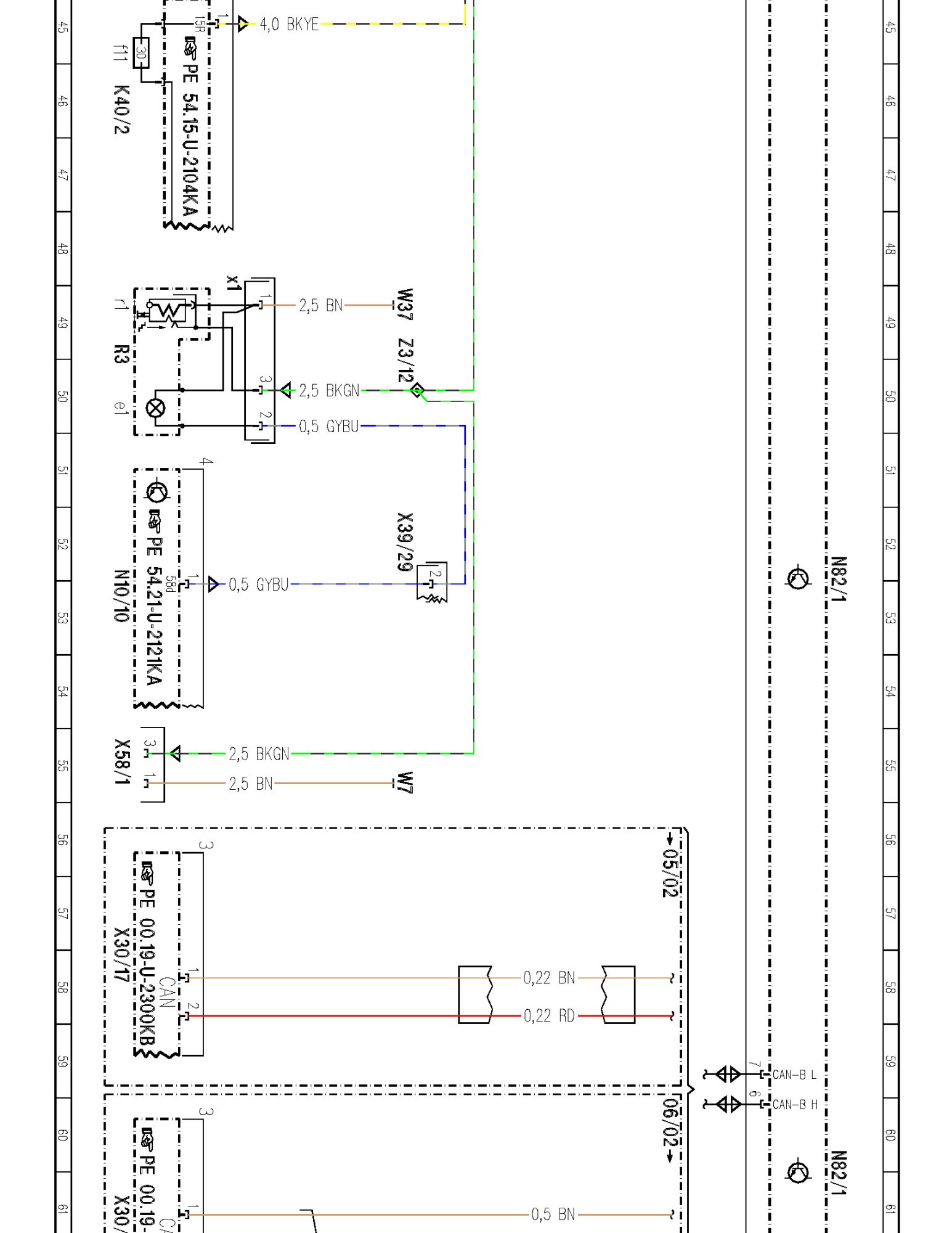

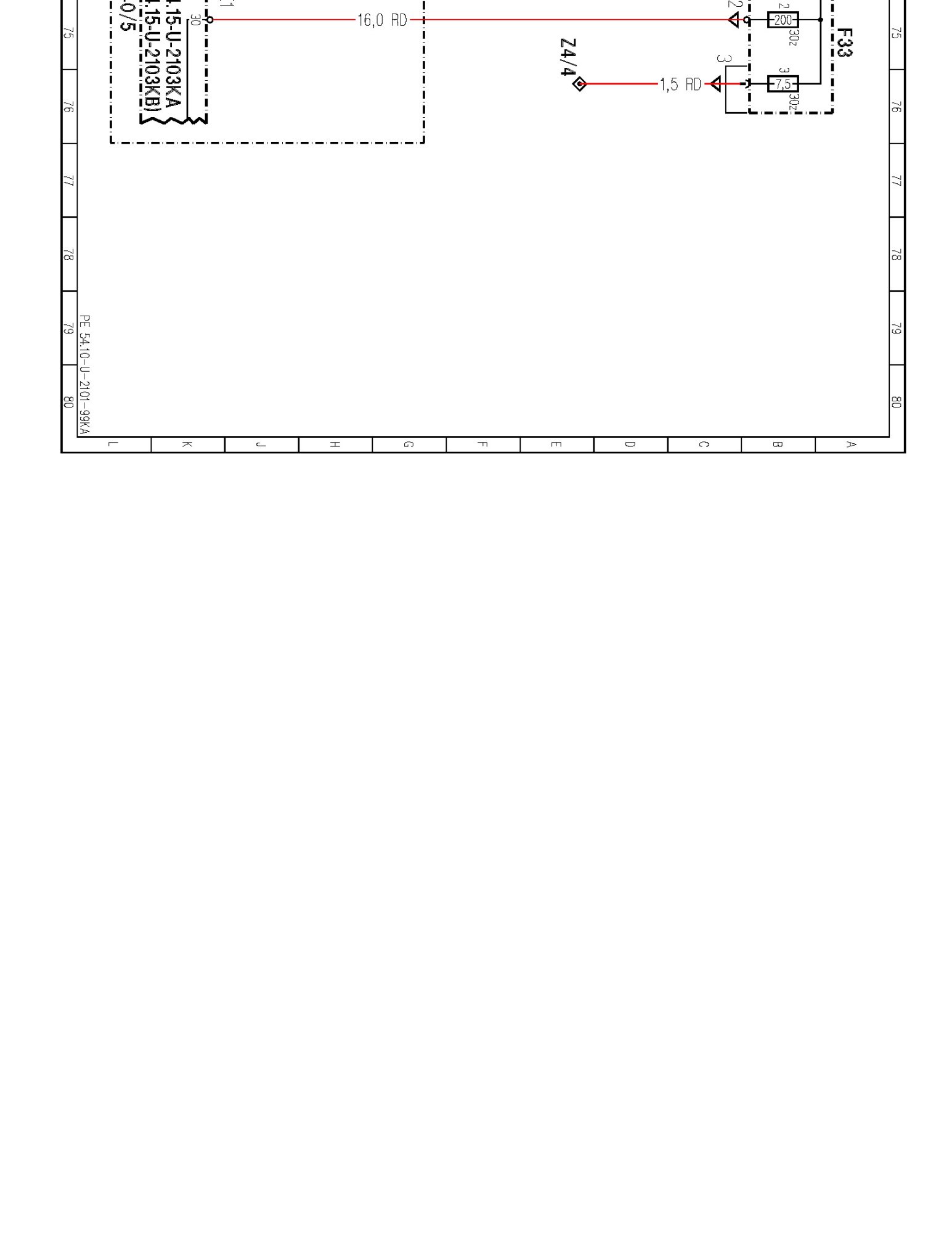

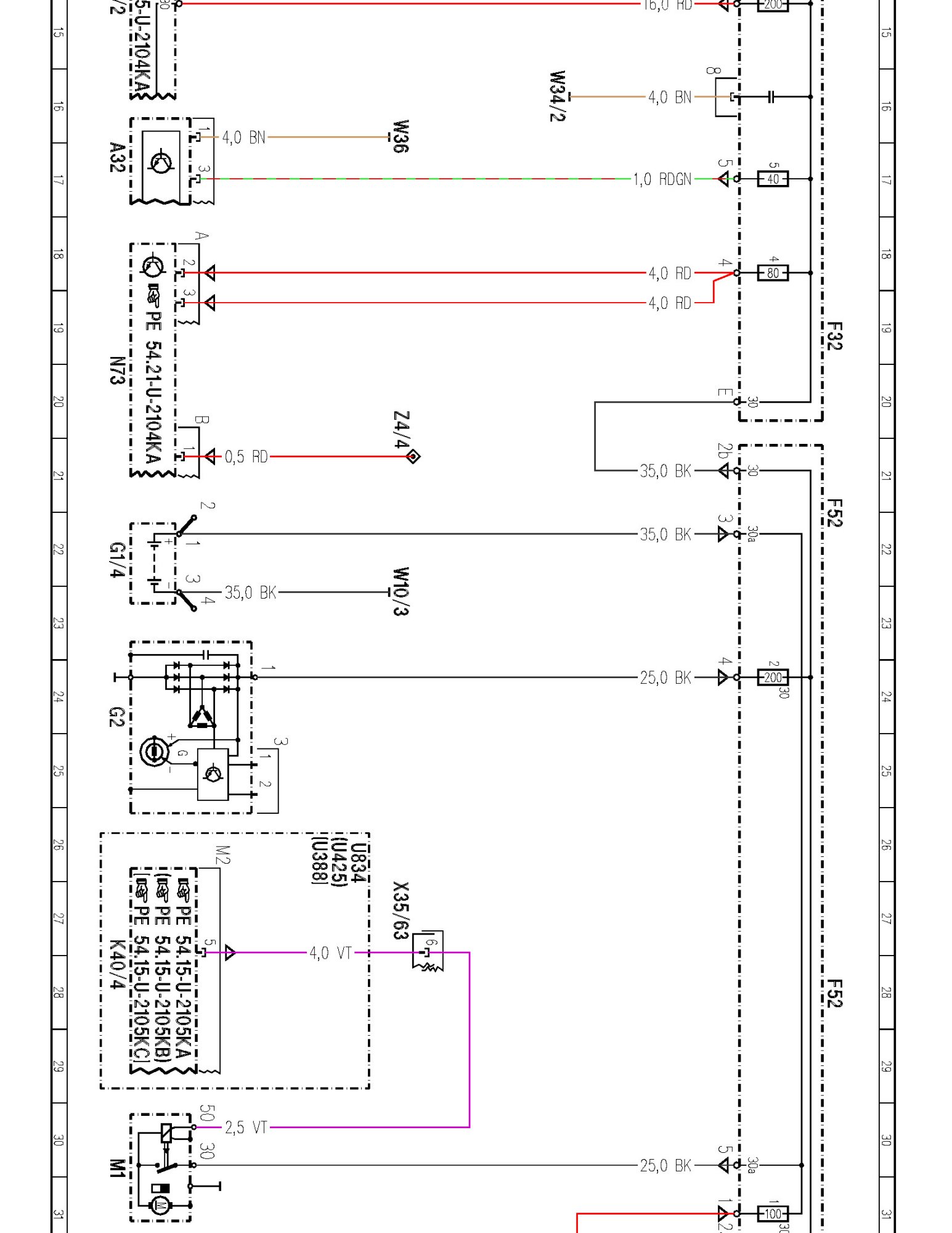

PE54.10-U-2101KA Vehicle Electrical System Control Module

PE54.10-U-2101KA Vehicle Electrical System Control Module

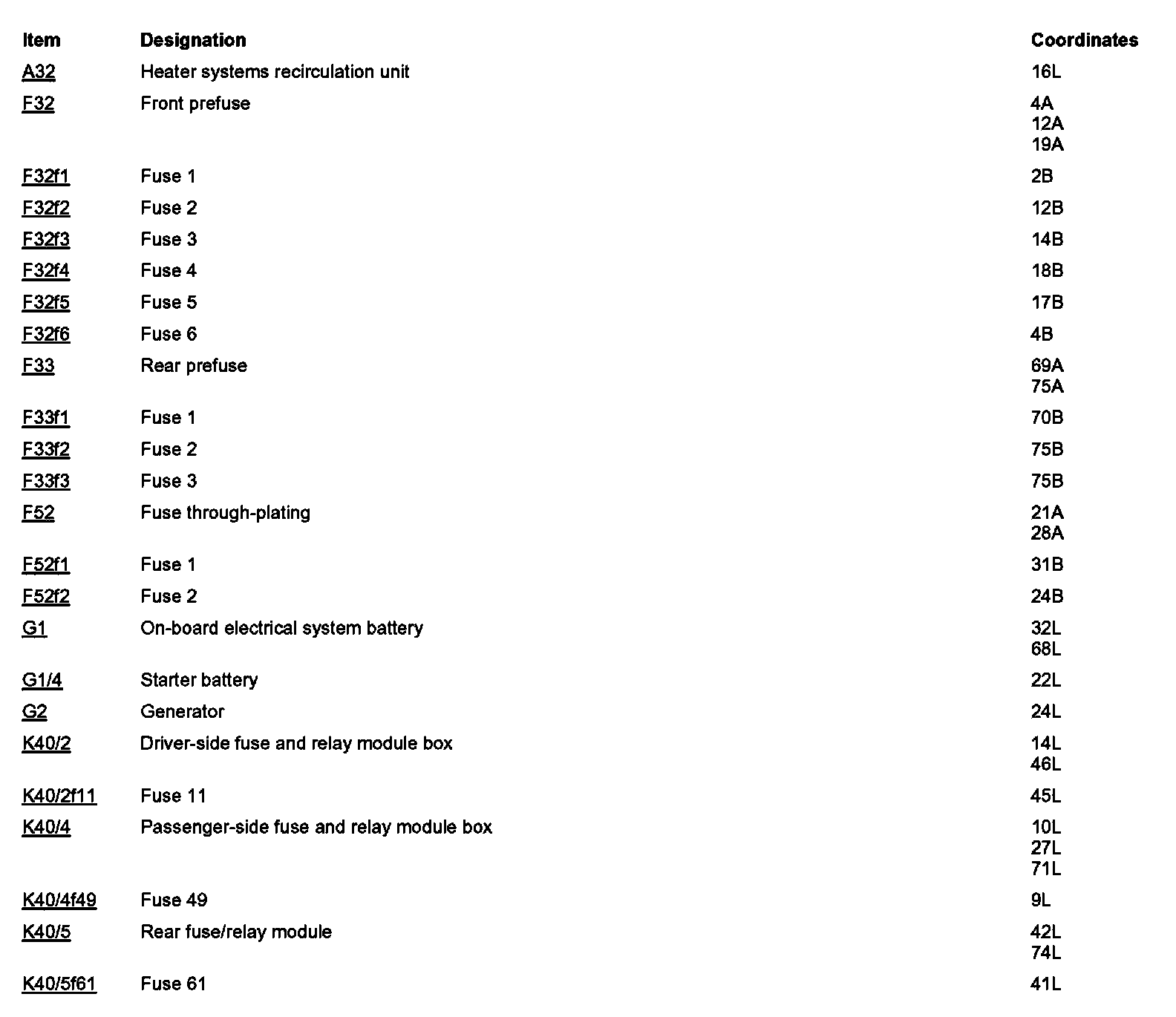

- Control module N82/1
- Fusebox F33, F52
- up to 08/31/03







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
