PE00.19-U-2300KA CAN Bus - Interior Compartment, Sheet 1 (Up to 5/31/02)

CAN Bus - Interior Compartment PE00.19-U-2300KA (Sheet 1)
- Up to 05/31/02
- CAN voltage distributor X30/15

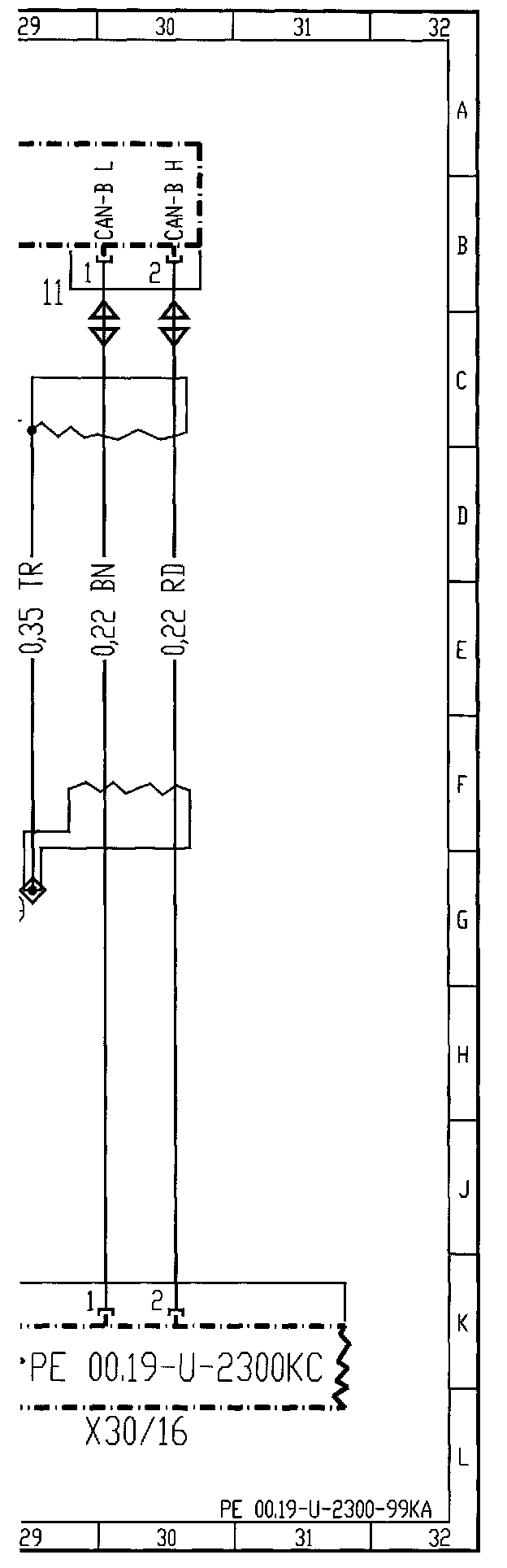

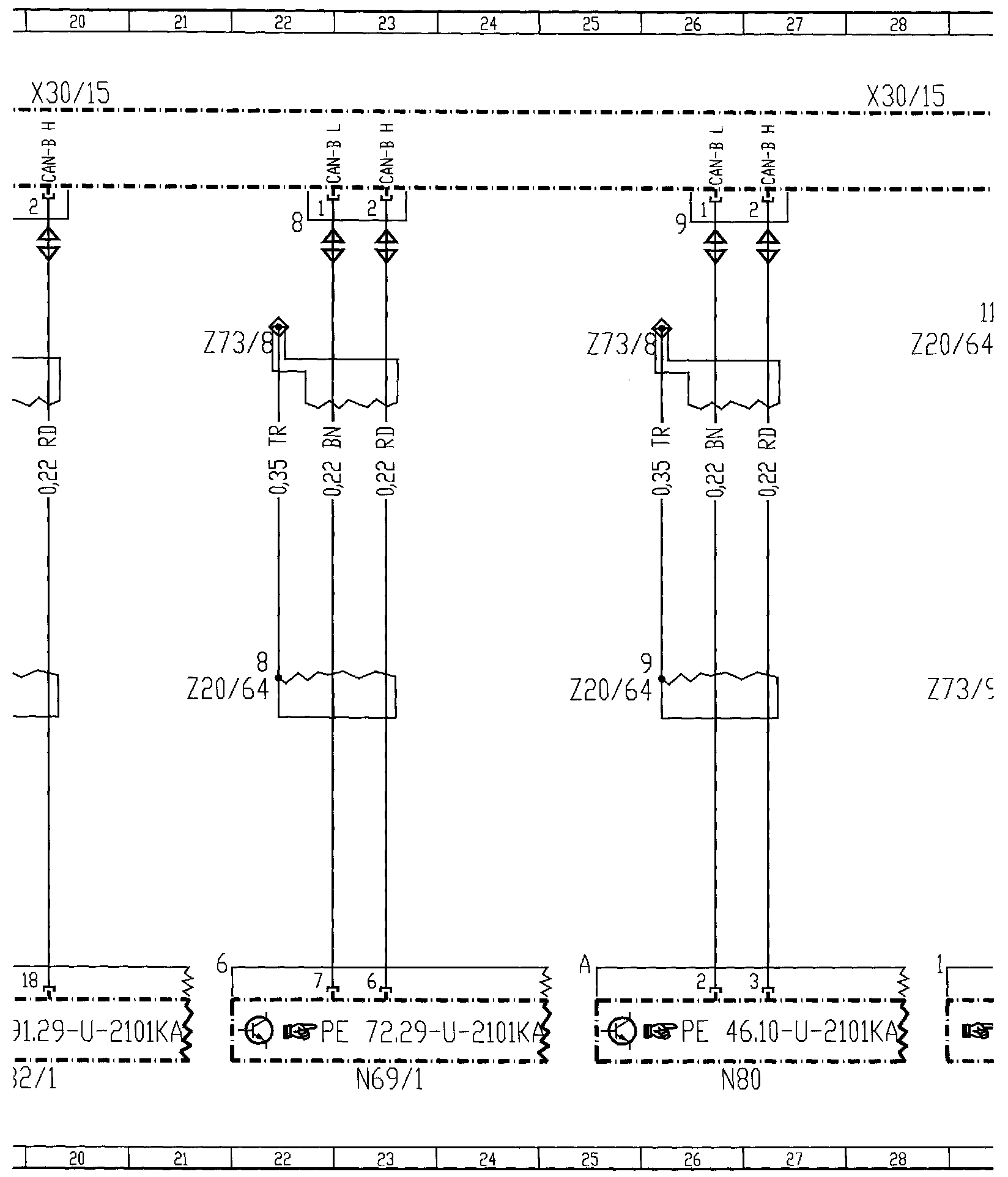

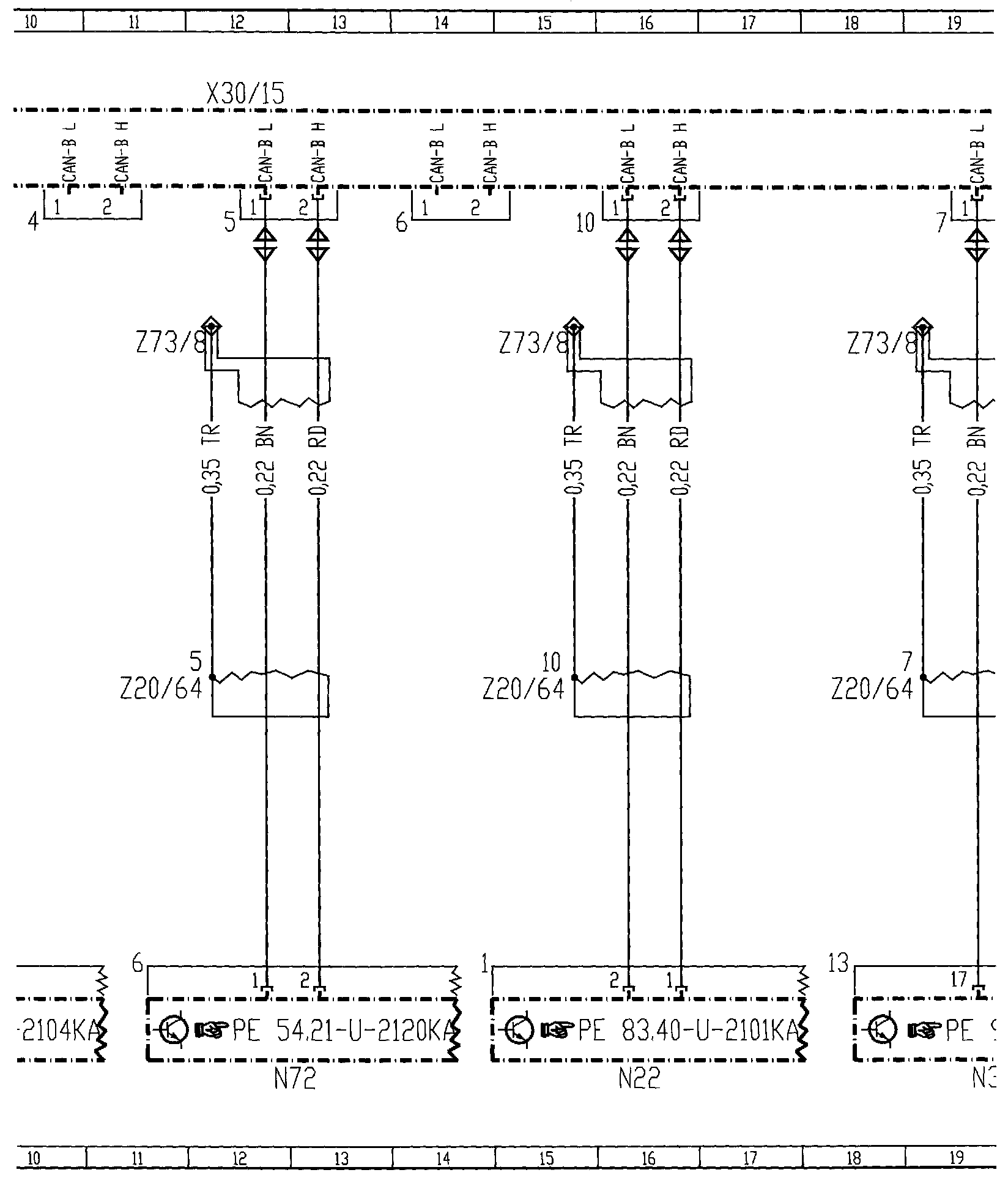

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

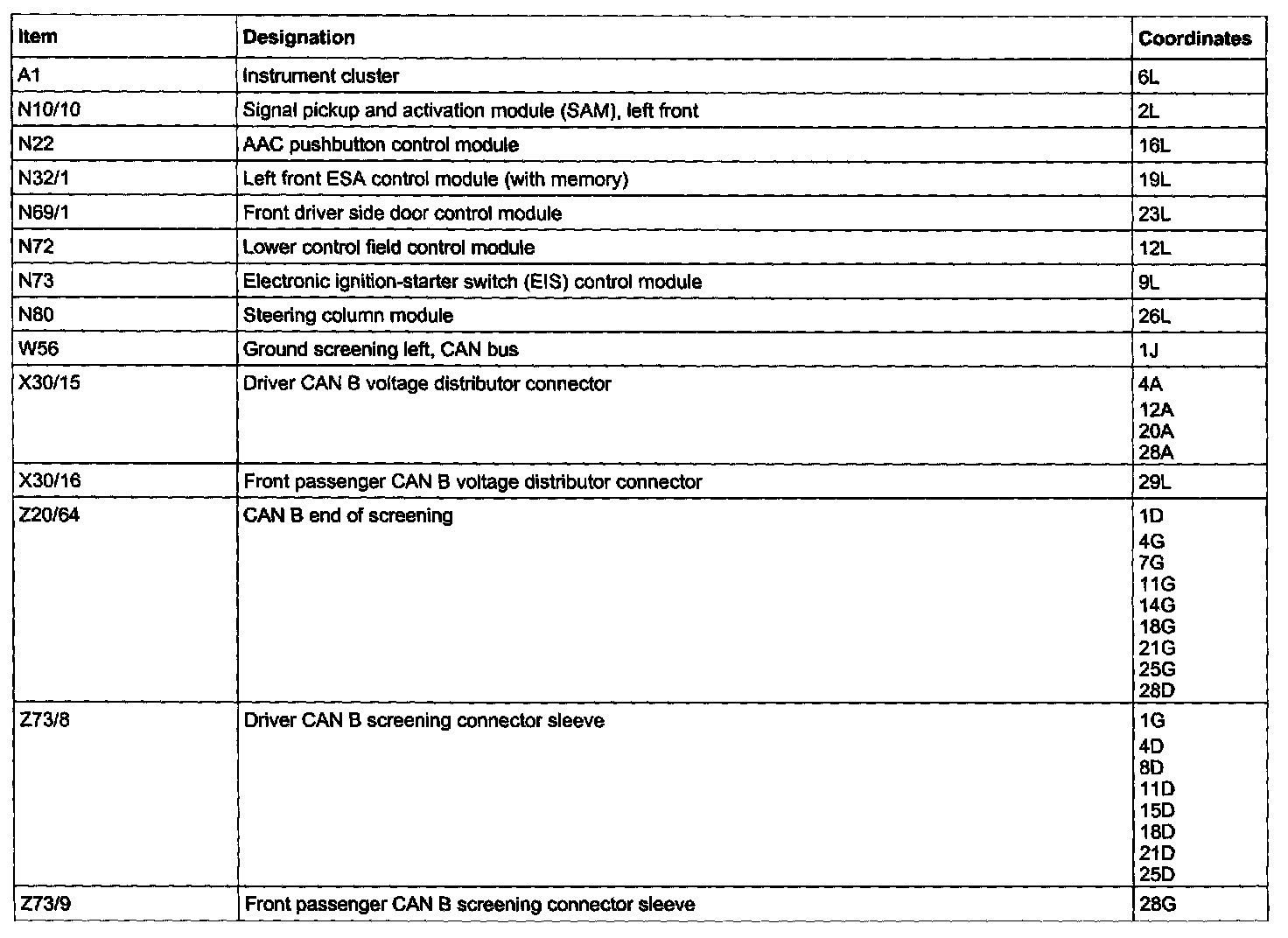

Component Description/Coordinates, A1 - Z73/9:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
