AZ88.50-P-0001-01R Retrofit AMG Rear Spoiler



AZ88.50-P-0001-01R Retrofit AMG Rear Spoiler

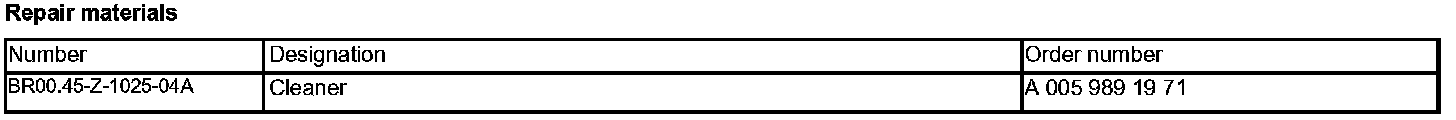

Repair Materials:






NOTE: The vehicle and the rear spoiler should have the same temperature (ambient temperature) when installing to prevent later distortion from various thermal expansion.

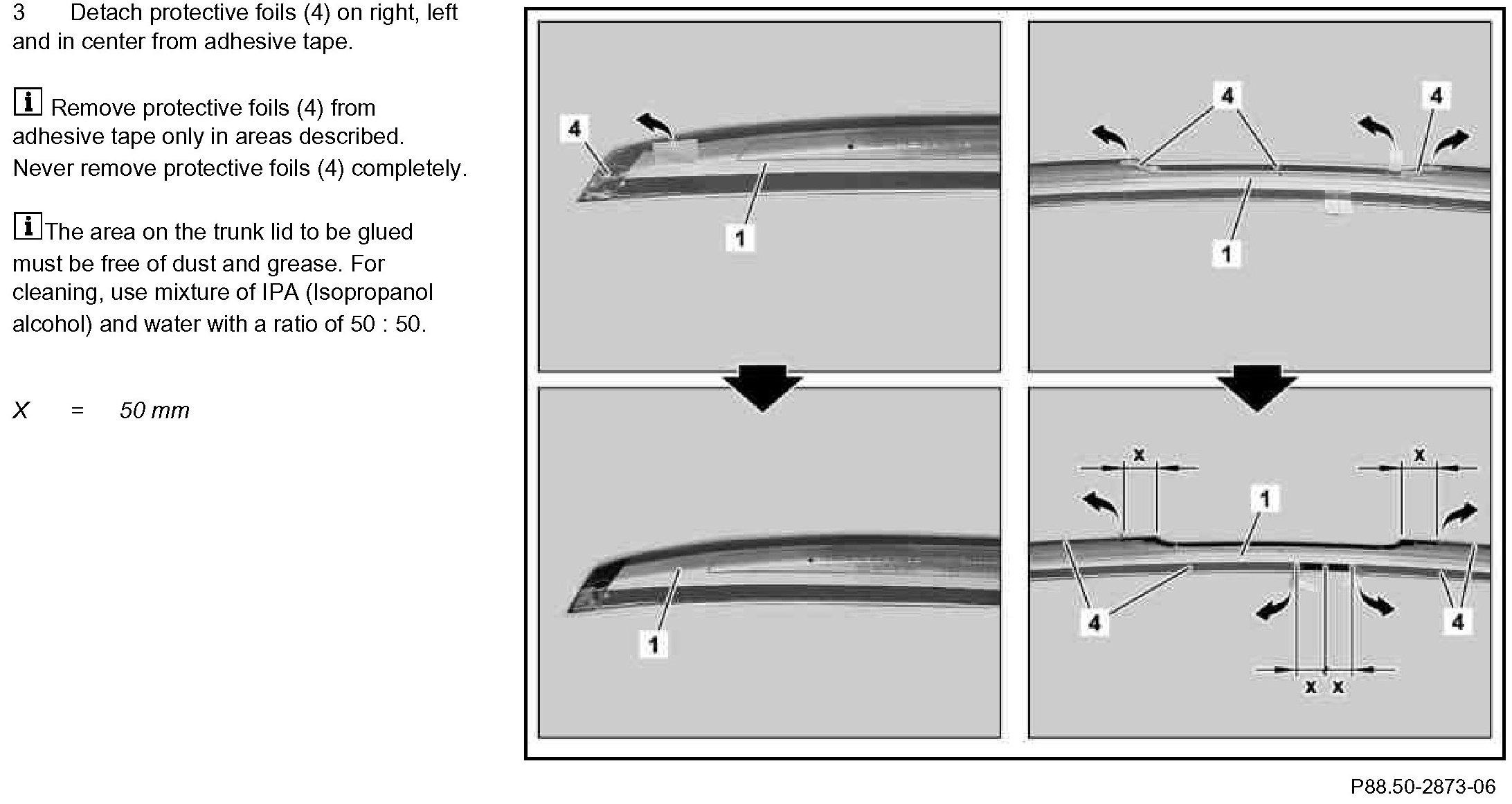

NOTE: The area on the trunk lid to be glued must be free of dust and grease. For cleaning, use mixture of IPA (Isopropanol alcohol) and water with a ratio of 50 : 50.
