Home >> Mercedes Benz >> 2003 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Body and Frame >> Spoilers, Flaps, and Air Dams >> Spoiler >> Description and Operation >> GF88.50-P-0008-01RIT Rear Wing, Location of Components

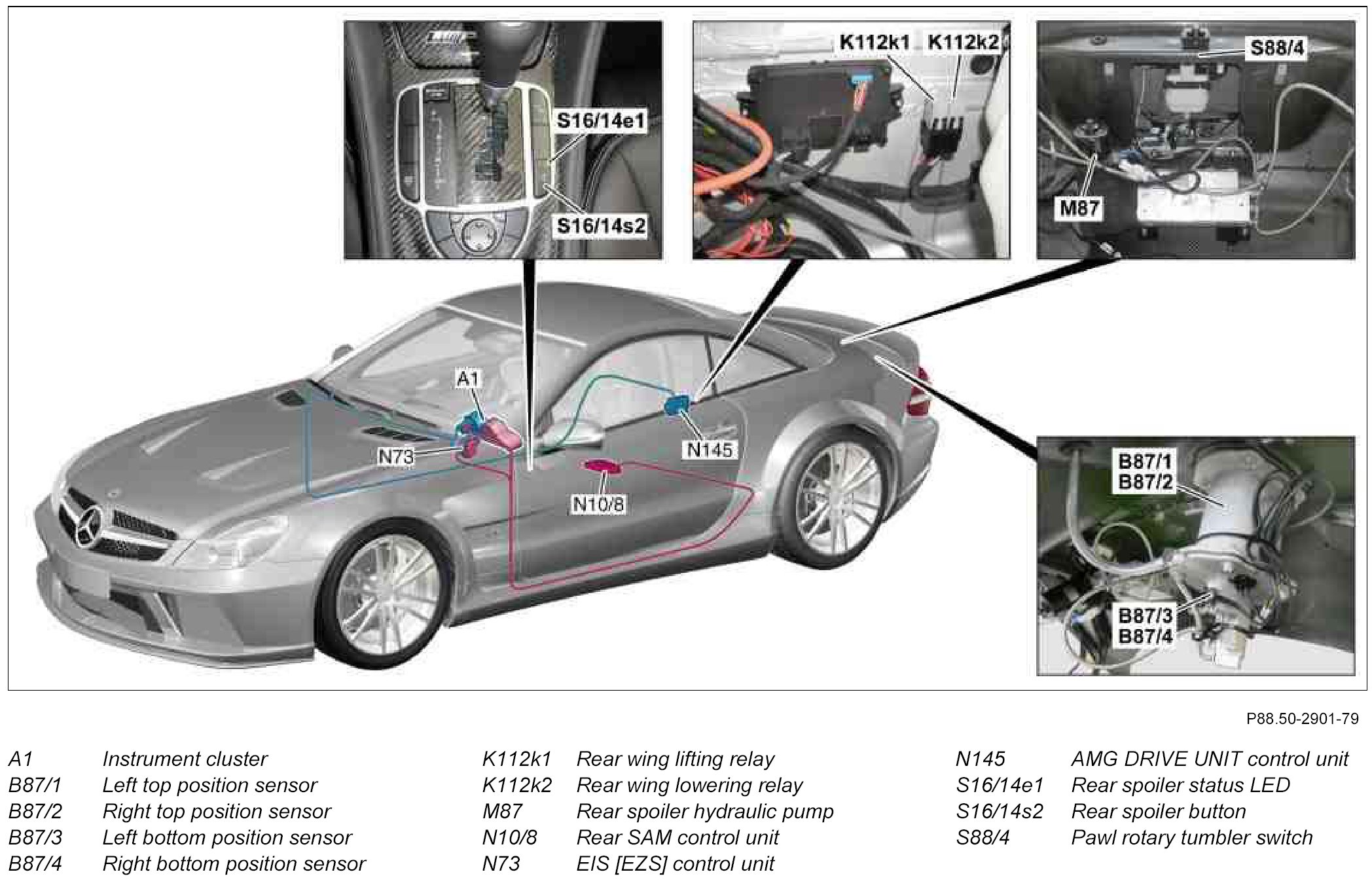

GF88.50-P-0008-01RIT Rear Wing, Location of Components



GF88.50-P-0008-01RIT Rear Wing, Location Of Components
- with CODE (P99) Special model "AMG Black Series"


Component Identification:
