Air Dam: Service and Repair



AR88.30-P-0530RBS Remove, Install Rear Diffuser
- with CODE (P99) Special model "AMG Black Series"

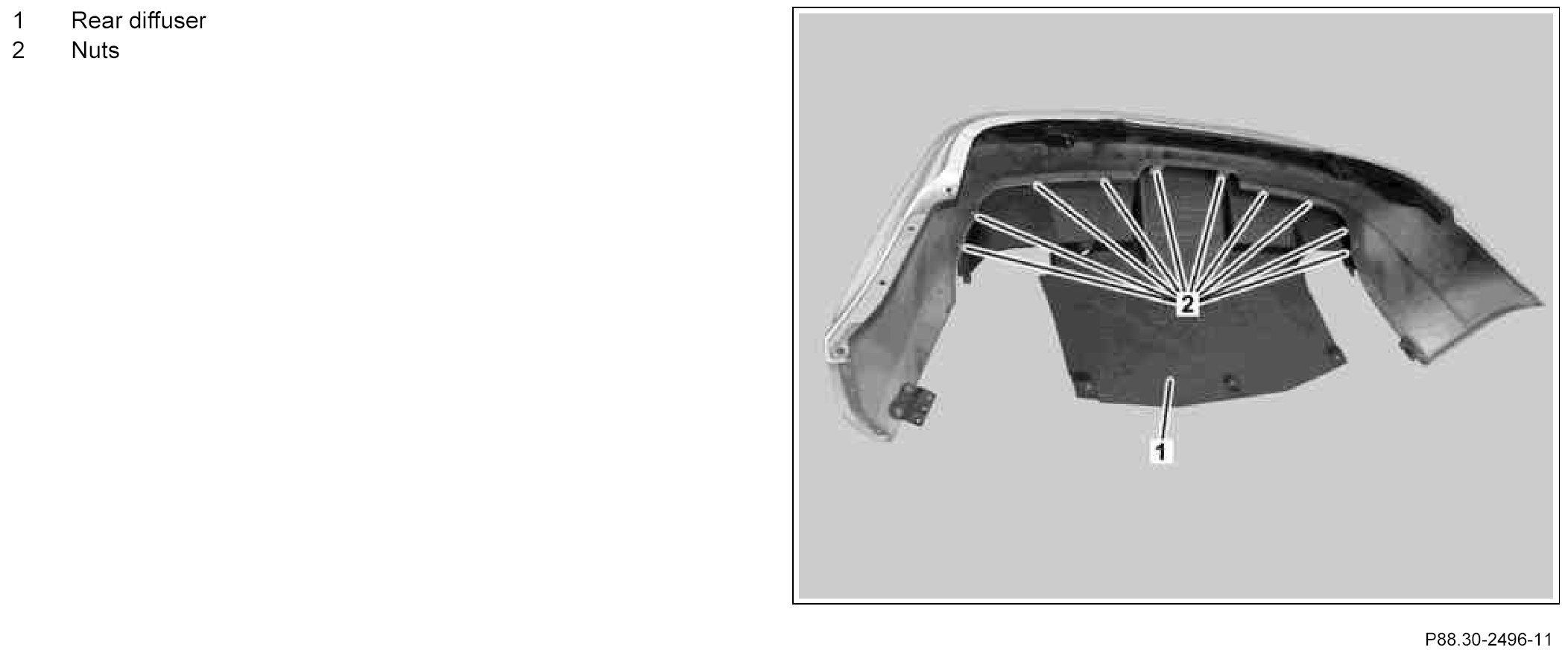

Component Identification:

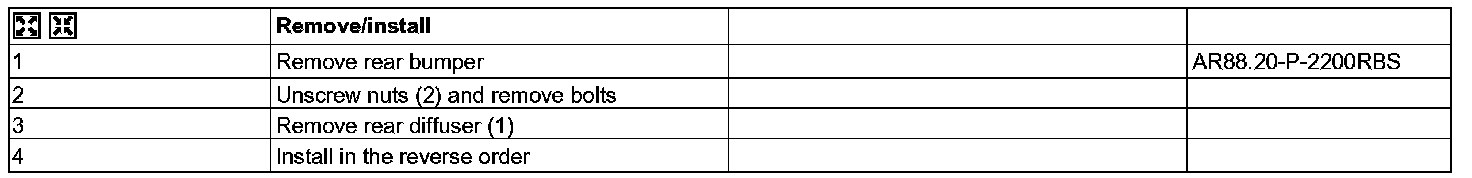

Steps 1 - 4:
