Vario Roof Up/Down Limit Switch, Location/Purpose

Vario Roof Up/Down Limit Switch, Location/Purpose

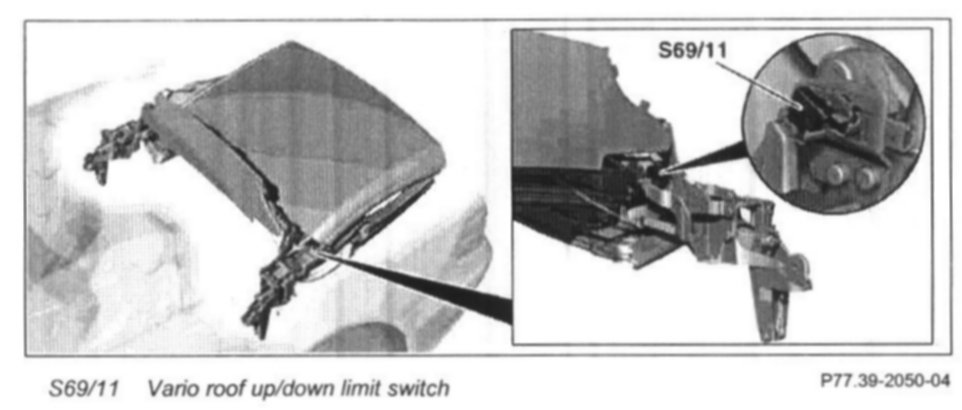

Location
On left main bearing

Purpose
The single-pole normally open contact sends a ground signal to the RVC control module (N52) as soon as the Vario roof reaches the down position (in trunk).
