Vario Roof Closed Limit Switch (Right Lug), Location/Purpose

Vario Roof Closed Limit Switch (Right Lug), Location/Purpose

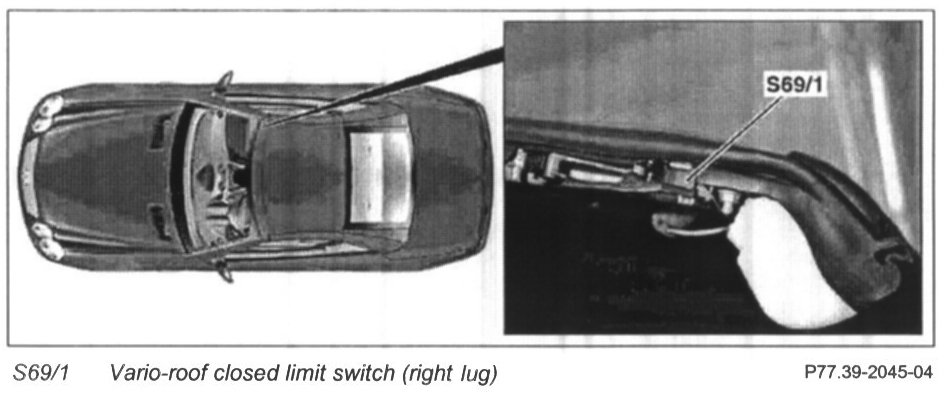

Location
In right receptacle in upper windshield frame

Purpose
The single-pole normally open contact sends a ground signal to the overhead panel control module (N70), as soon as the lug on the variable roof has reached the receptacle in the windshield frame (Vario roof closed).
