Vario Roof Catches For Tubular Frame In Trunk, Location/Purpose



Vario Roof Catches For Tubular Frame In Trunk, Location/Purpose

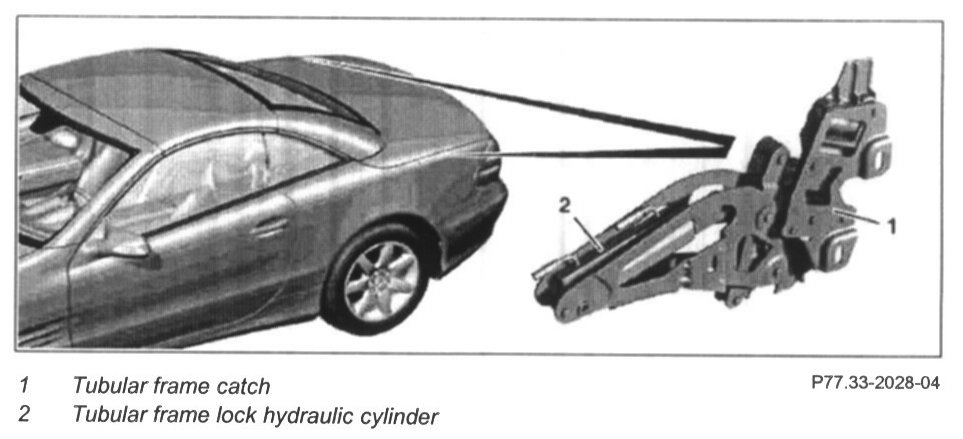

Location
Above wheelhouses in trunk behind left and right side paneling

Purpose
Locking and unlocking tubular frame when trunk lid is actuated.
