Home >> Mercedes Benz >> 2003 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Latch >> Service and Repair >> AR77.50-P-6764R Remove/Install Striking Plate on C-Pillar Upper Section For Vario Roof

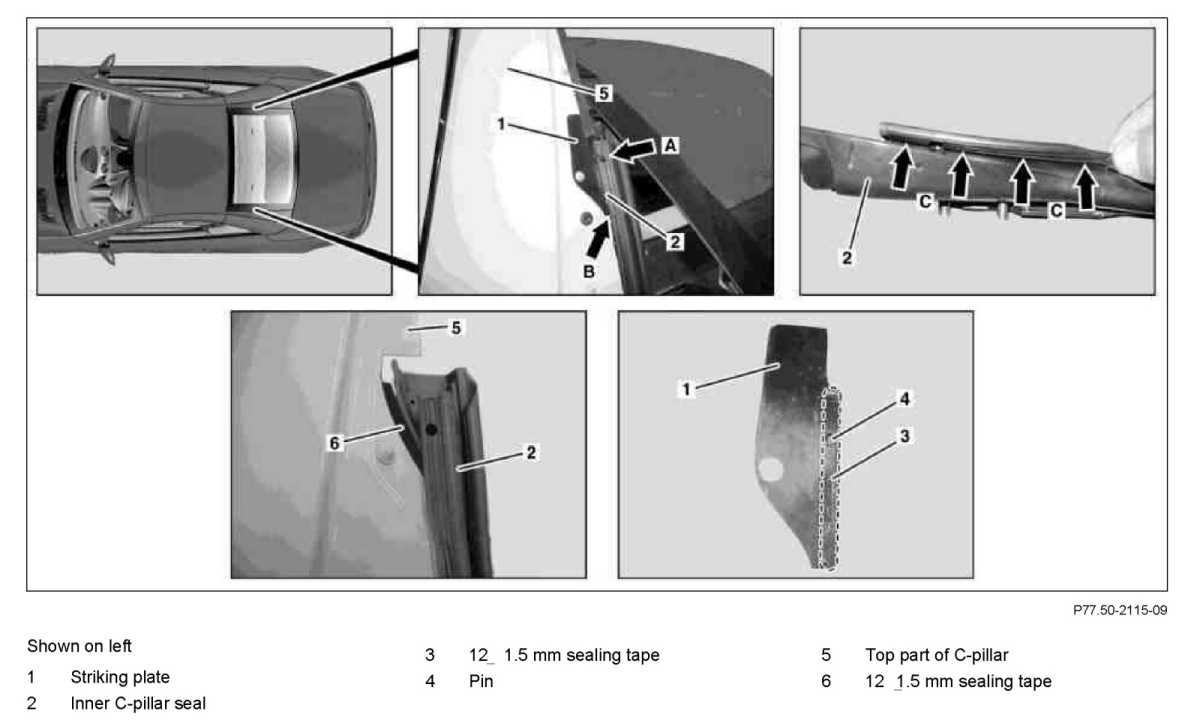

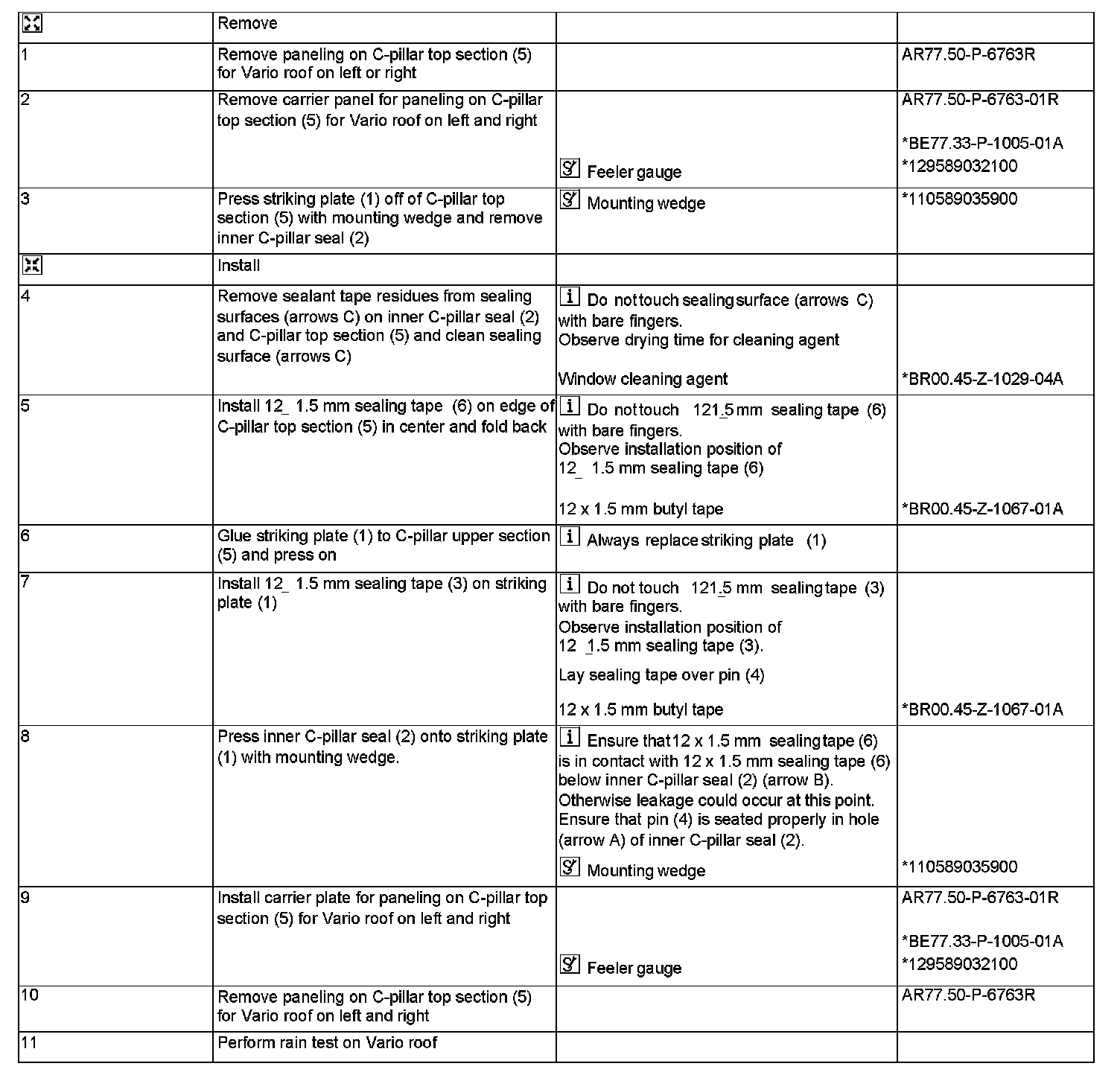

AR77.50-P-6764R Remove/Install Striking Plate on C-Pillar Upper Section For Vario Roof



AR77.50-P-6764R Remove/Install Striking Plate on C-Pillar Upper Section For Vario Roof

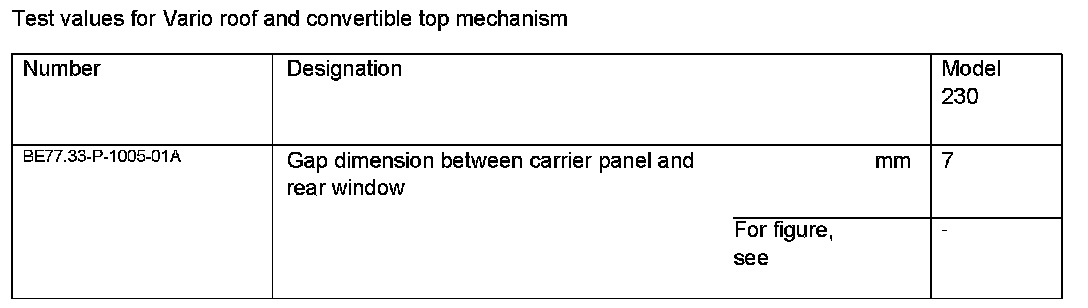

Test Values For Vario Roof And Convertible Top Mechanism:
