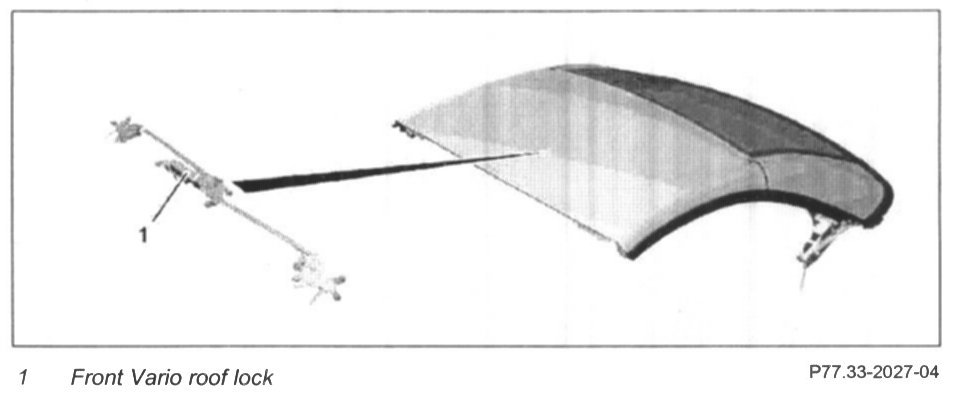

Front Vario Roof Lock, Location/Purpose



Front Vario Roof Lock, Location/Purpose







Location
On front of Vario roof

Purpose
Locking and unlocking when roof is actuated
