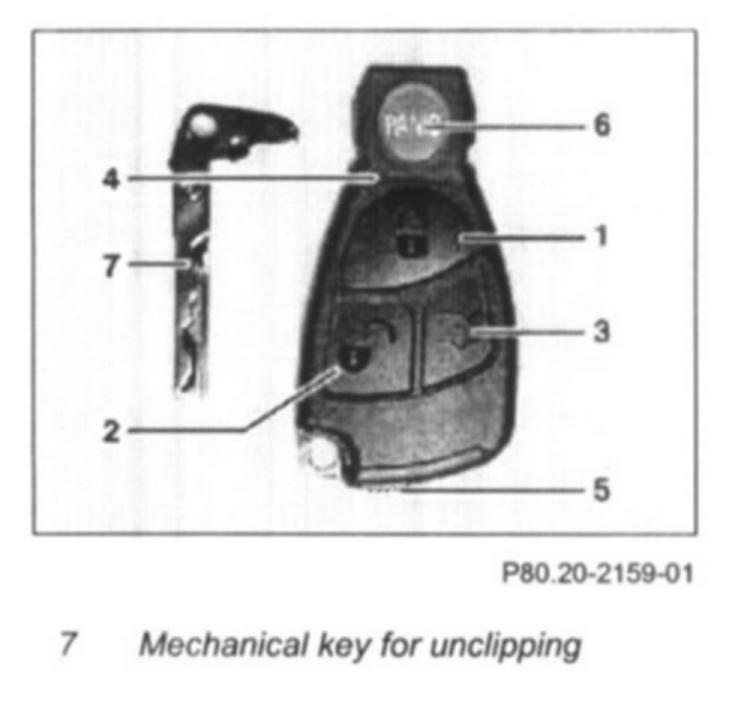

Locking/Unlocking Driver's Door With Mechanical Key



Locking/Unlocking Driver's Door With Mechanical Key, Function


Part 1:






The driver's door can be unlocked or locked with the mechanical key. This does not change the status of the central locking, i.e. the other locking points are not unlocked or locked. This does not deactivate or active the anti-theft alarm (ATA). The convenience feature is not operated.


Part 2:

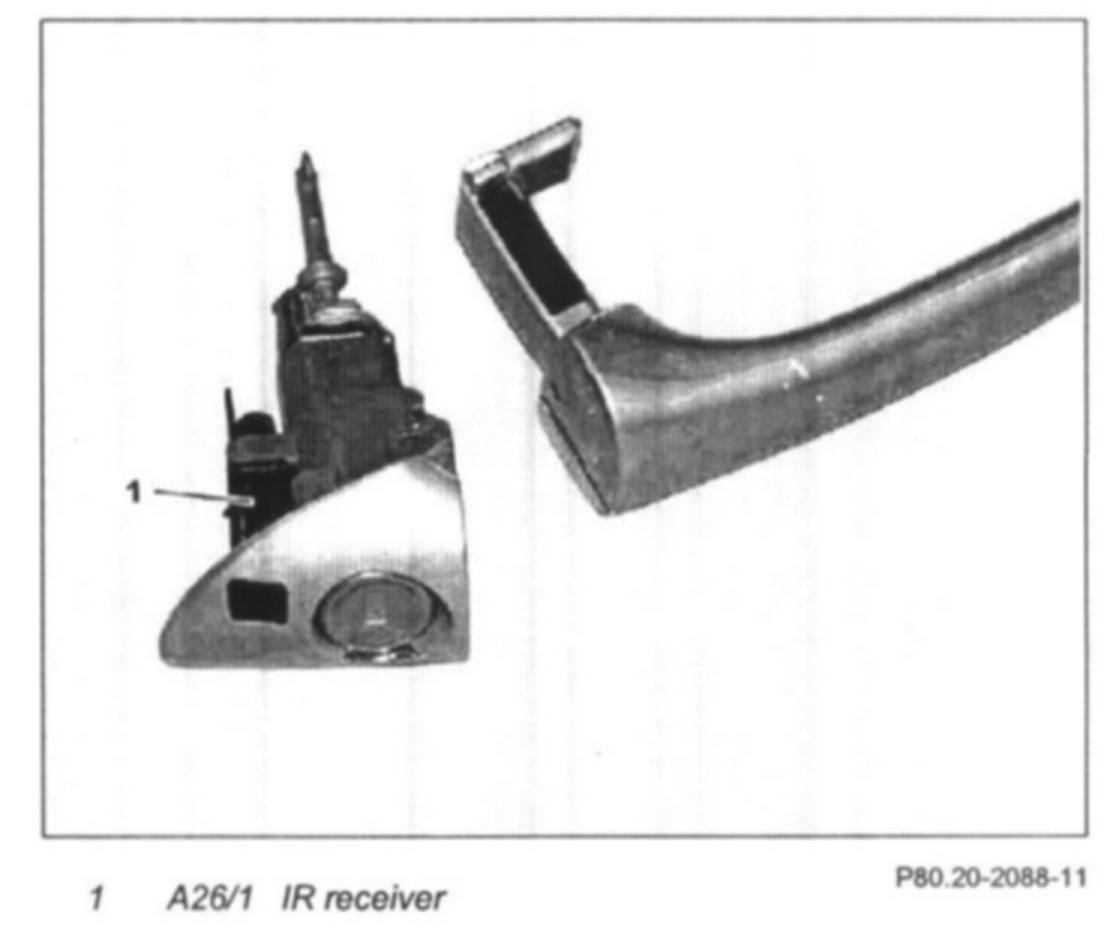

The lock cylinder is located next to the left front IR receiver (A26/1) (driver's door).
