AR68.30-P-7440R Remove/Install Rear Luggage Box

AR68.30-P-7440R Remove/Install Rear Luggage Box







NOTE: Removing and installing right and left luggage box is identical

1 Open Vario roof

NOTE: Refer to operating instructions.

2 Remove rear wall panel
3 Unscrew screws (3) at luggage box (1)

NOTE: Only at luggage box to be removed.

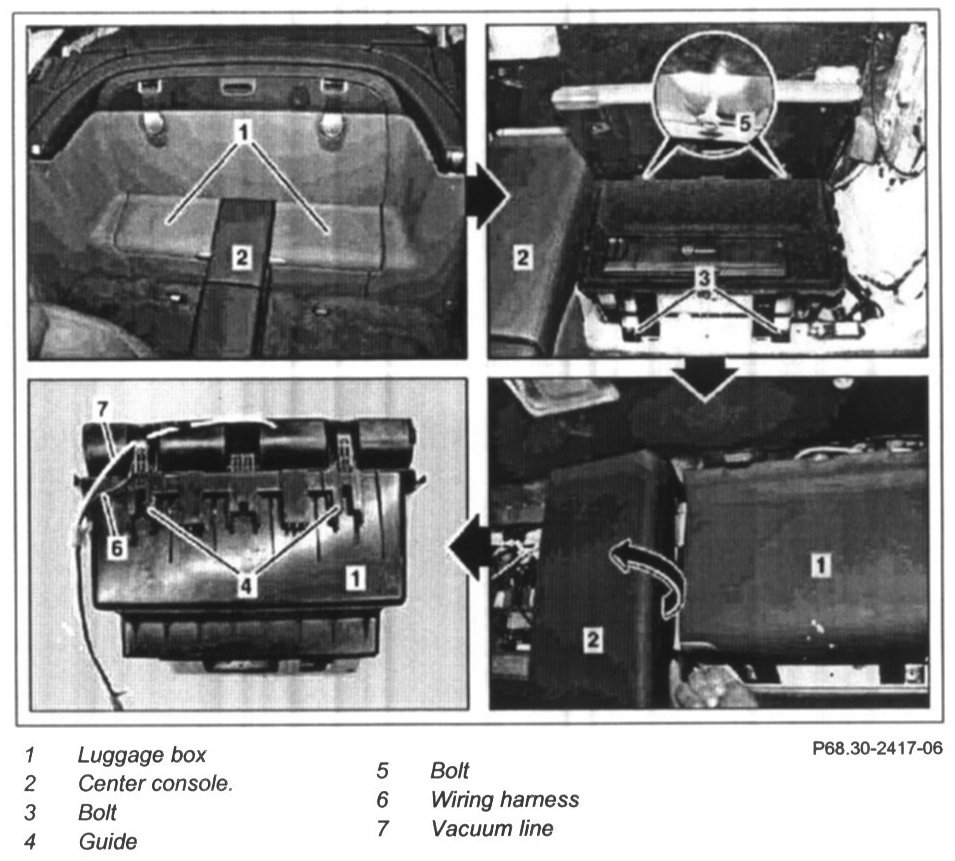

4 Raise center console (2) slightly at the side and rear (arrow), take luggage box (1) together with guides (4) out of bolts (5) and place to the side with lines connected

CAUTION: Do not damage center console as it is stall attached in the front area.

NOTE: Installation: Ensure that the guides of the luggage box are pushed over the bolt heads.

5 Separate connector from wiring harness (6)
6 Cut off vacuum line (7) below luggage box (1)

NOTE: Connect separation point to vacuum hose.

7 Take out luggage box (1)
8 Remove cover of rear luggage box

NOTE: Only when required.

9 Install in the reverse order
