Accessory Compartment: Service and Repair

AR68.10-P-1600R Remove/Install Stowage Compartment or Beverage Holder







1 Remove center console cover

NOTE: Remove only until screws (2) are accessible Do not disconnect electrical connectors of switch groups and AC pushbutton control module in center console cover

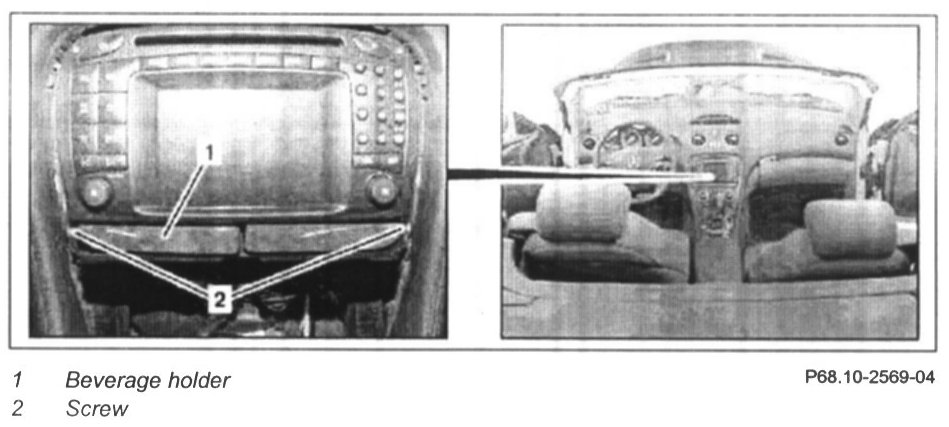

2 Unscrew screws (2) and pull beverage holder (1) out of instrument panel
3 Install in the reverse order
