Trunk Lid Emergency Release Switch, Location/Purpose/Function

Trunk Lid Emergency Release Switch, Location/Purpose/Function






Position

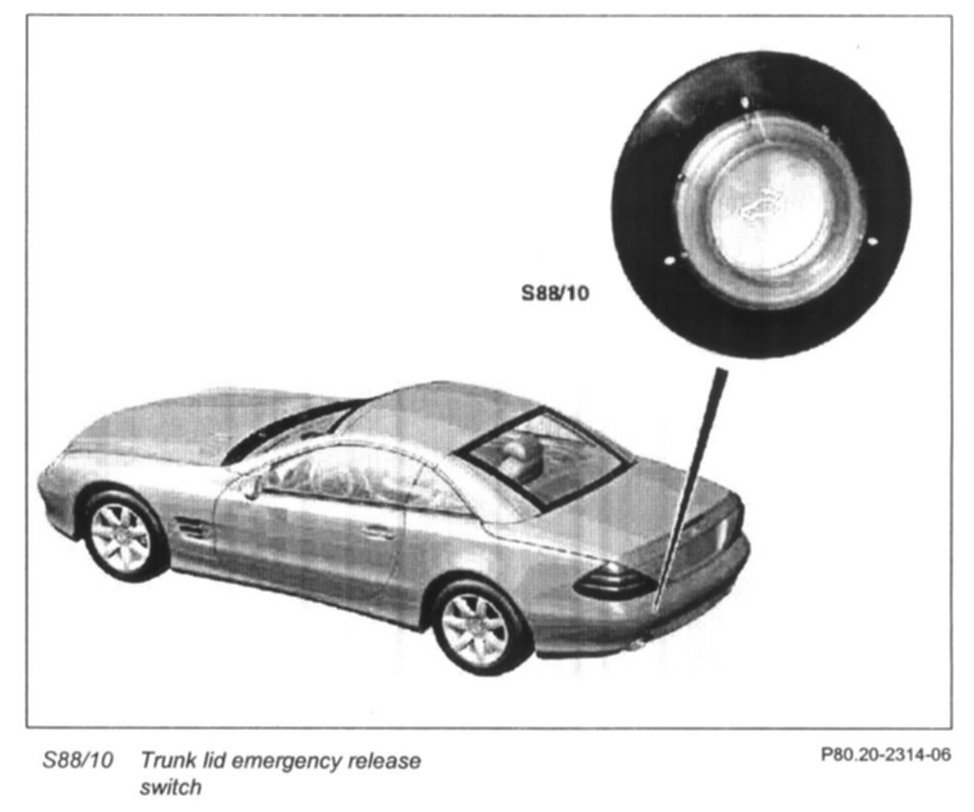

The trunk lid emergency release switch (S88/10) is located below the left taillamp (E3) on the inside of the trunk.

Purpose
Emergency opening of trunk lid from inside of trunk.

Function
The trunk lid emergency release switch (S88/10) is read in voltage-coded by the PSE control module (combined) (A37) and is illuminated.
