AR82.62-P-7838RBS Remove/Install Speakers In Rear Wall (Interior)



AR82.62-P-7838RBS Remove/Install Speakers In Rear Wall (interior)
- with CODE (P99) Special model "AMG Black Series"

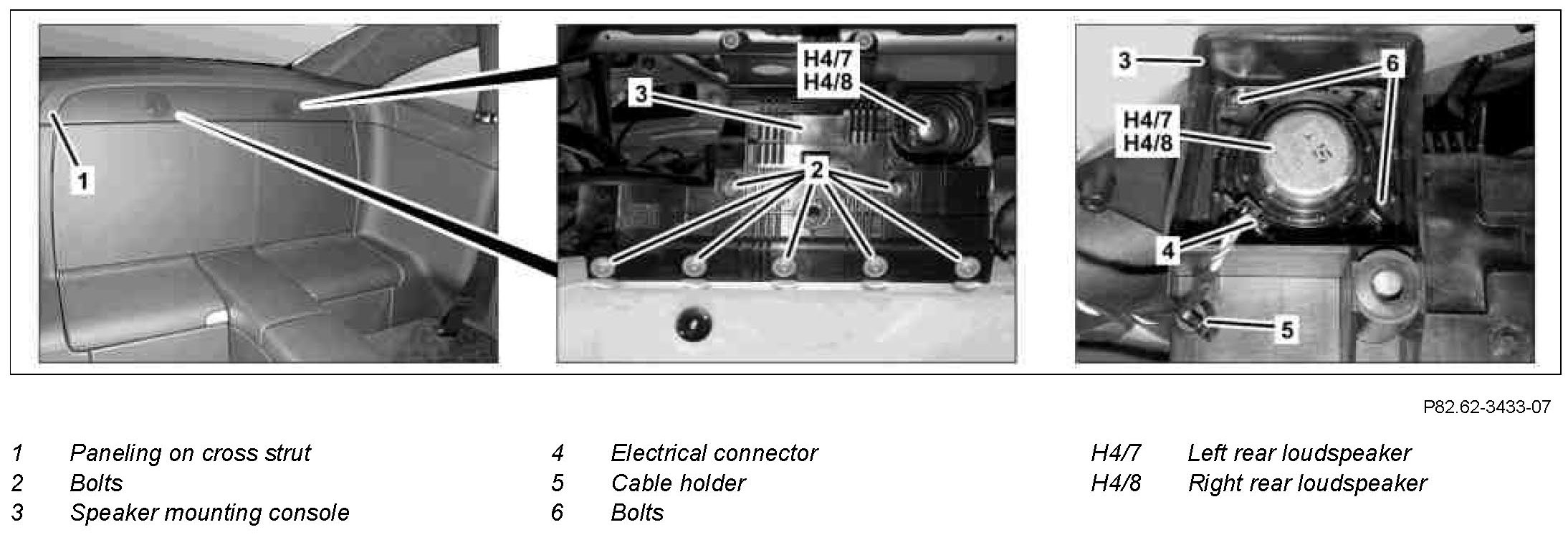

Component Identification:

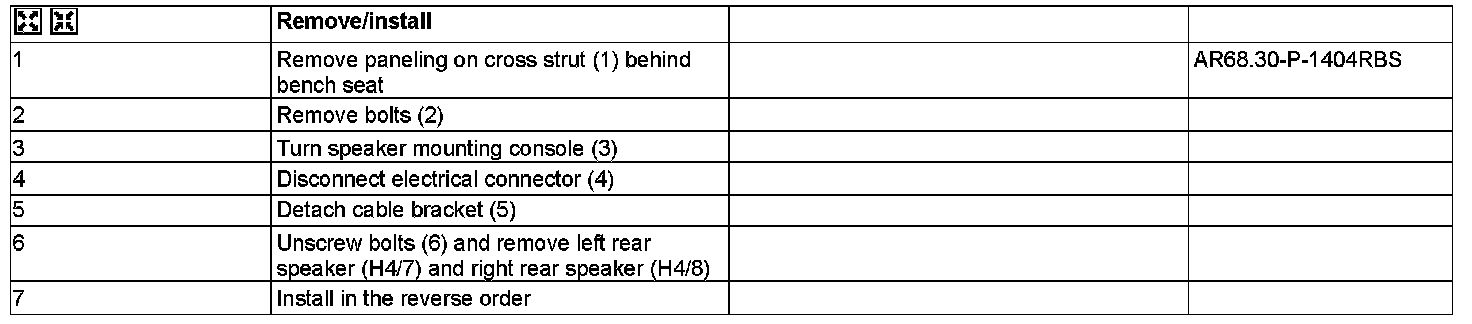

Steps 1 - 7:
