AR68.10-P-1050R Remove/Install Cover For Loudspeaker

AR68.10-P-1050R Remove/Install Cover For Loudspeaker

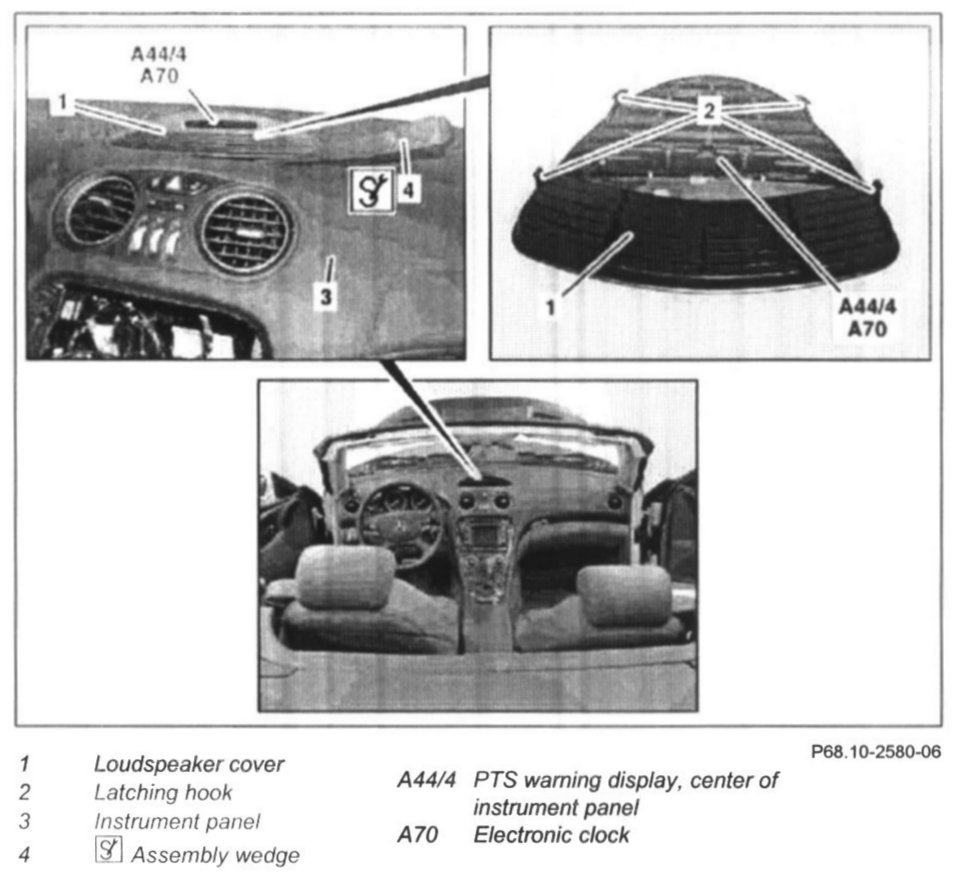

1 Unclip loudspeaker cover (1) from instrument panel (3) on retaining hooks (2) with assembly wedge (4)
2 Disconnect electrical connector from electronic clock (A70)

NOTE: Installation: Set time on electronic clock

3 Disconnect electrical connector for PTS warning display, center instrument panel (A44/4)

NOTE: Only with code (220a) Parktronic system (PTS)

4 Remove loudspeaker cover (1)
5 Install in the reverse order
