GF82.62-P-4220RIU Speaker System, Component Description

GF82.62-P-4220RIU Speaker System, Component Description
- with CODE (359) TELE AID emergency call system

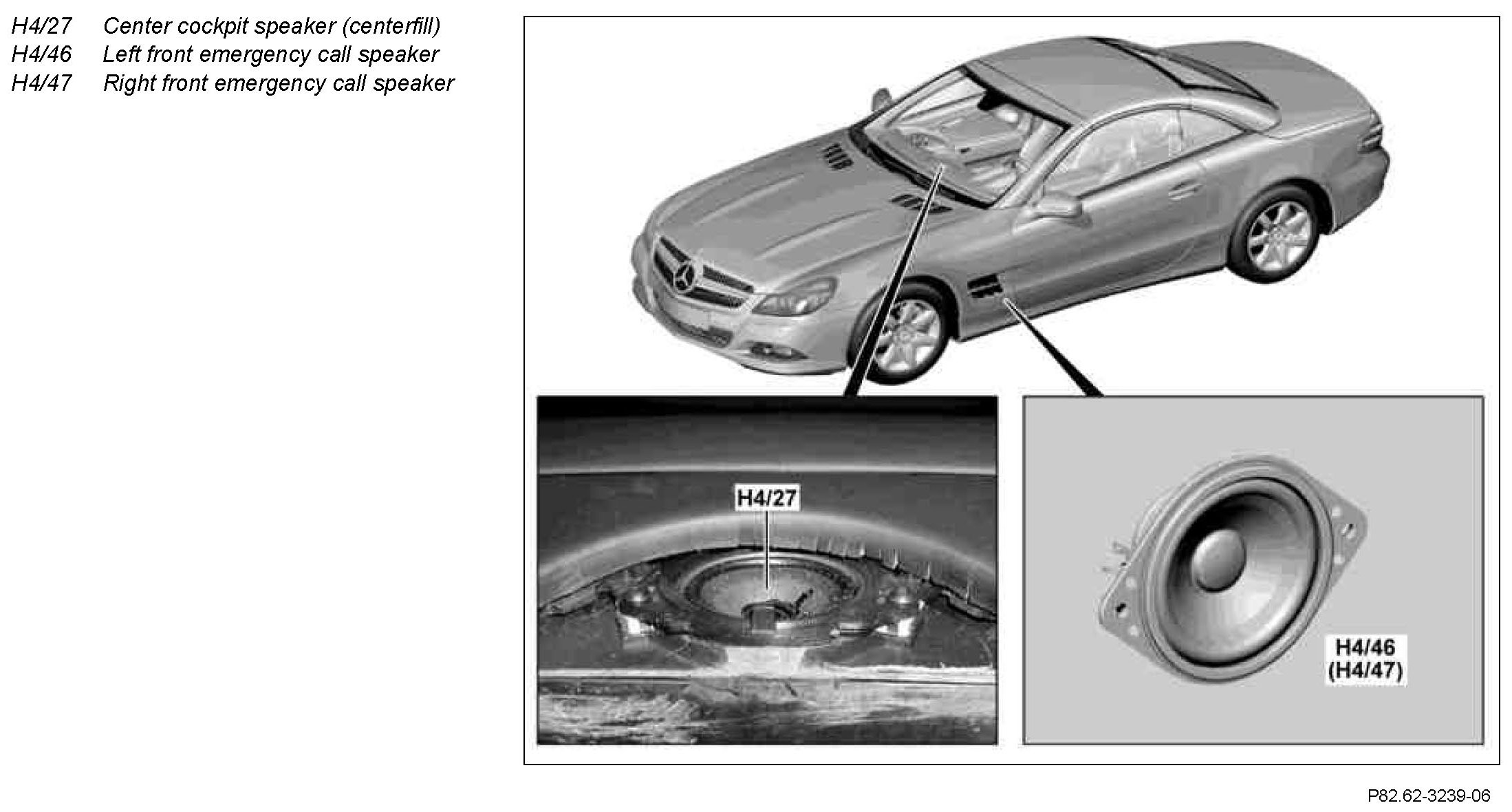

Component Identification:

Location
The center cockpit speaker (Centerfill) is located in the top middle of the dashboard. The left front emergency call speaker is located at the left in the driver footwell behind the left front wall trim.
The right front emergency call speaker is located at the right in the front passenger footwell behind the right front wall trim.

Task
^ Receiving signals
^ Converting signals
^ Transmitting signals

Receiving signals
Direct lines
- Electrical signals (frequency) from emergency call system control unit (N123/4) via direct lines

Converting signals
- Converting electrical signals (frequencies) into acoustic (audible) signals for the following actions:
- Voice output
- Handsfree

Transmitting signals
No signals are transmitted in this sense.
Only acoustic (audible) signals are output, which are transmitted by means of sound waves.
