AR82.62-P-8300RBS Remove/Install Antenna Amplifier Module



AR82.62-P-8300RBS Remove/Install Antenna Amplifier Module
- with CODE (P99) Special model "AMG Black Series"
- Rear window antenna amplifier module

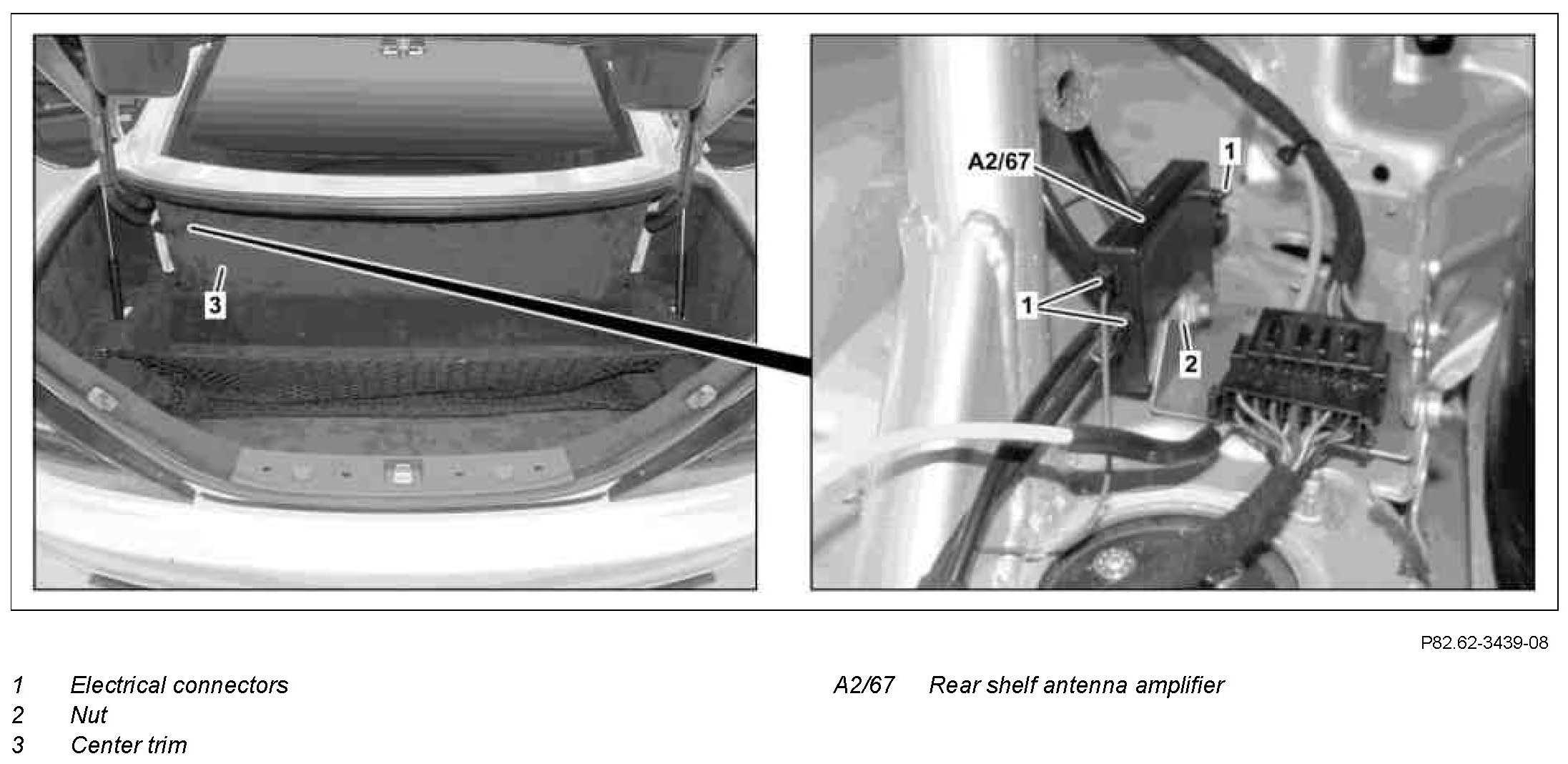

Component Identification:

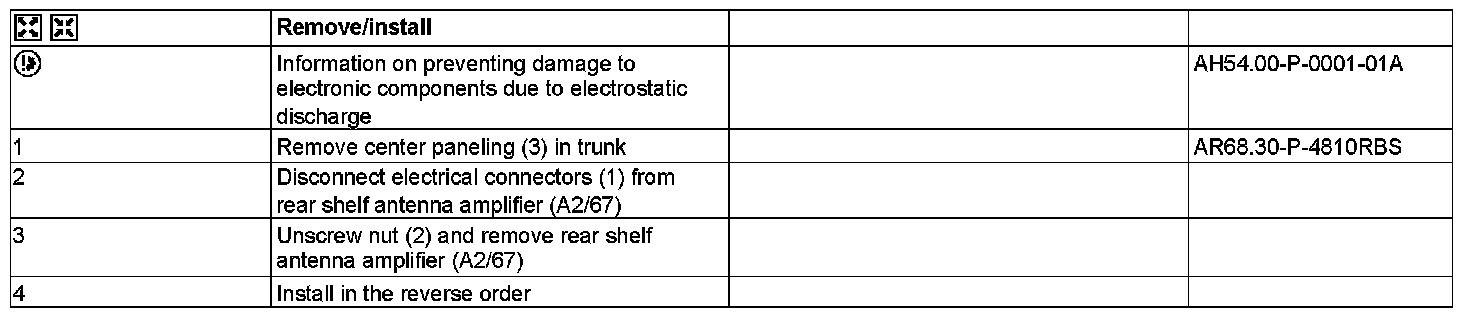

Steps 1 - 4:
