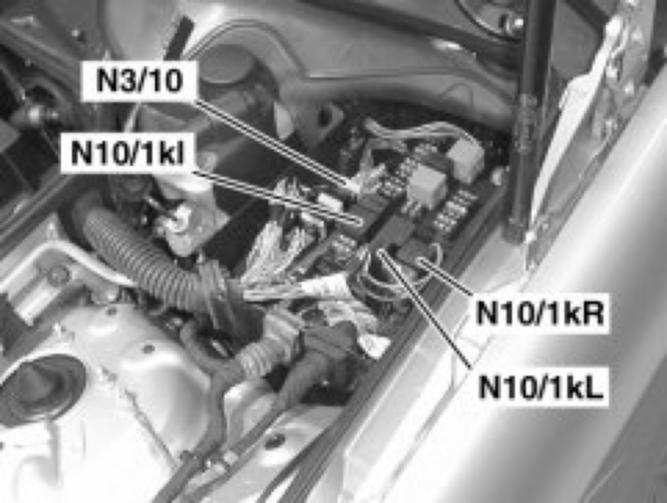

ME-SFI Control Module Position

ME-SFI Control Module Position

Model 211




N3/10 ME-SFI control unit
N10/1kI Circuit 87 relay, engine
N10/1kL Starter relay
N10/1kR AIR pump relay

The ME control module is located in the relay and fuse box in the engine compartment at the rear on the left.
