AR54.10-P-1135A Check Battery Control Unit

AR54.10-P-1135A Check Battery Control Unit

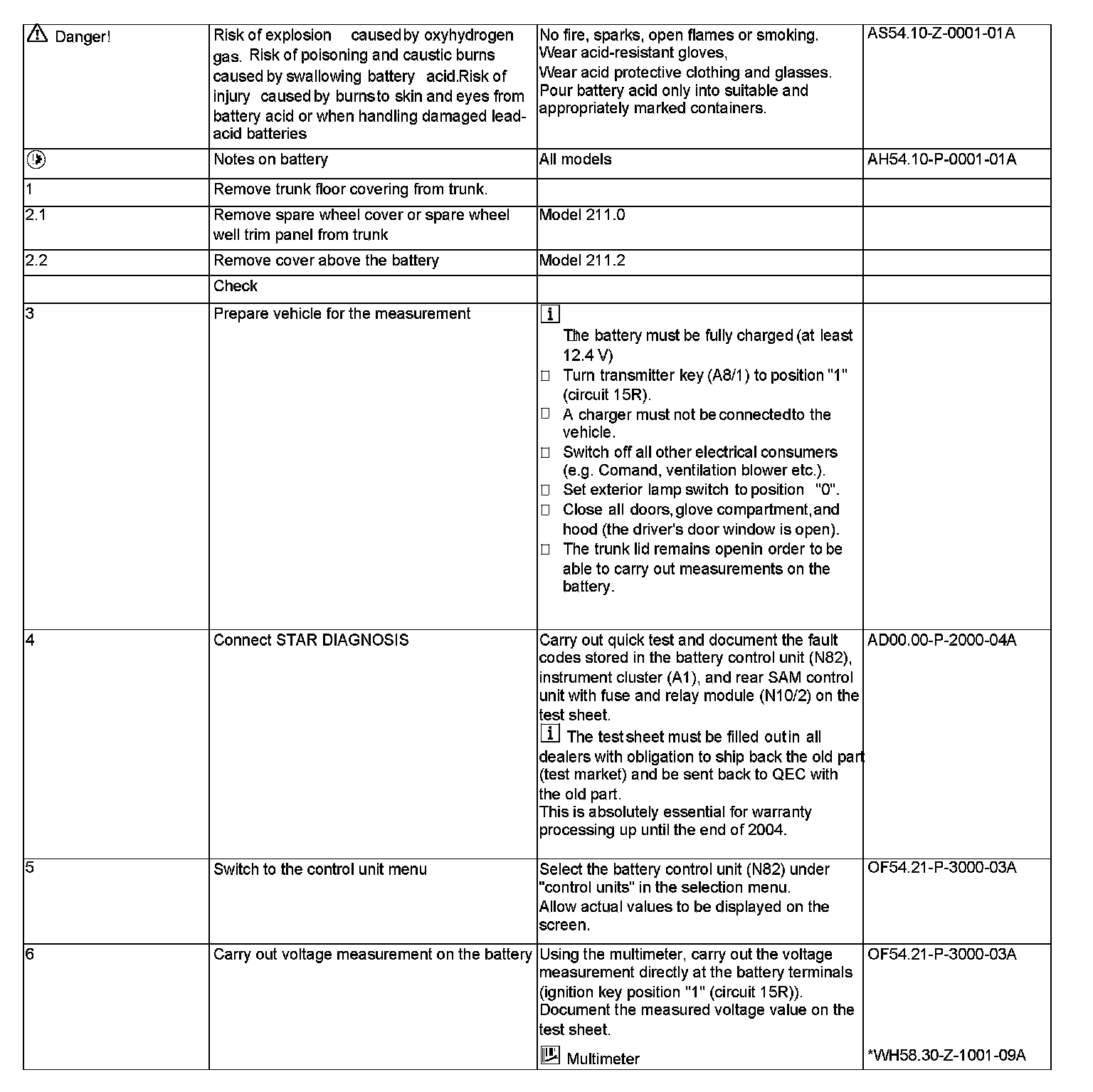

Part 1:

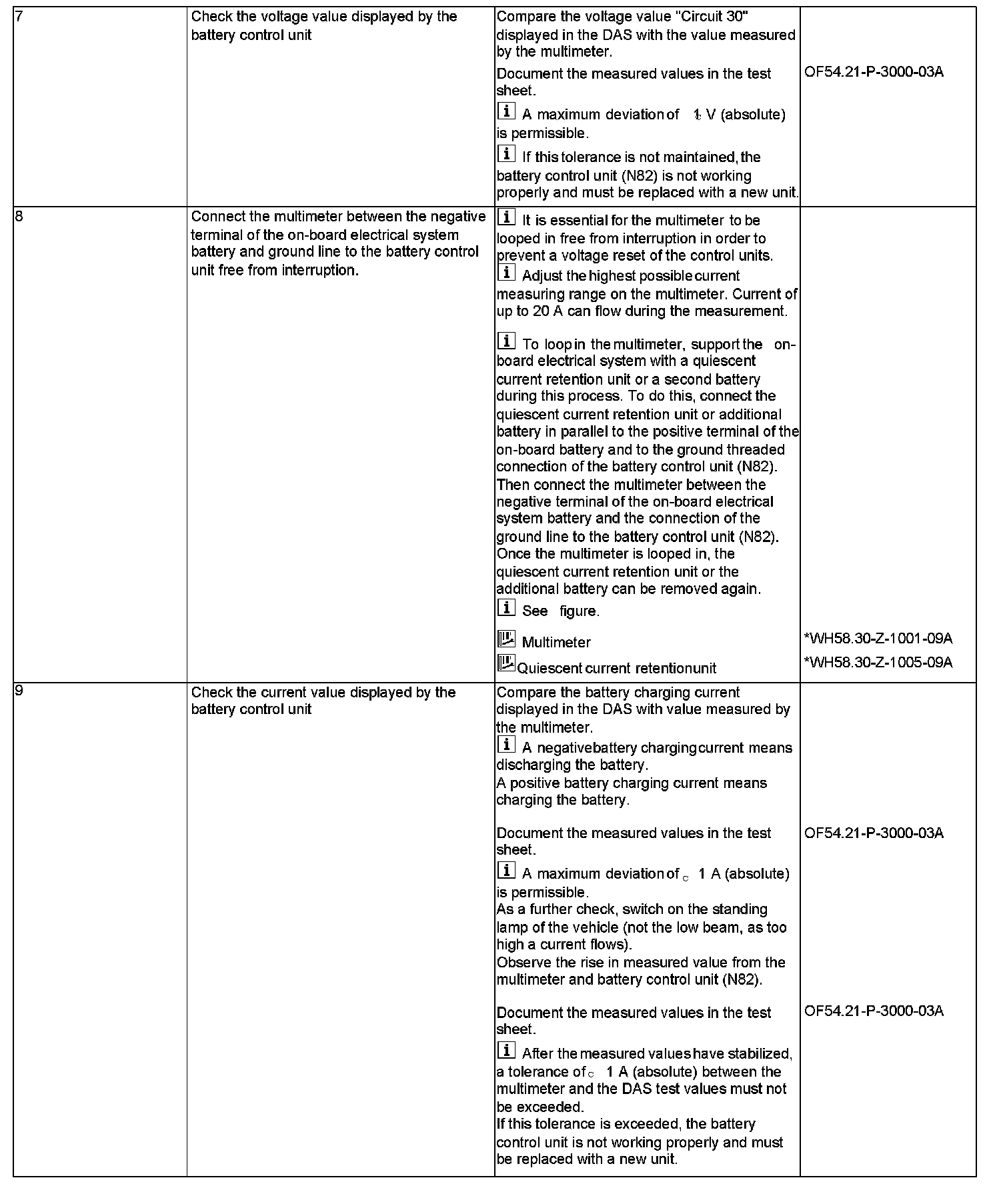

Part 2:

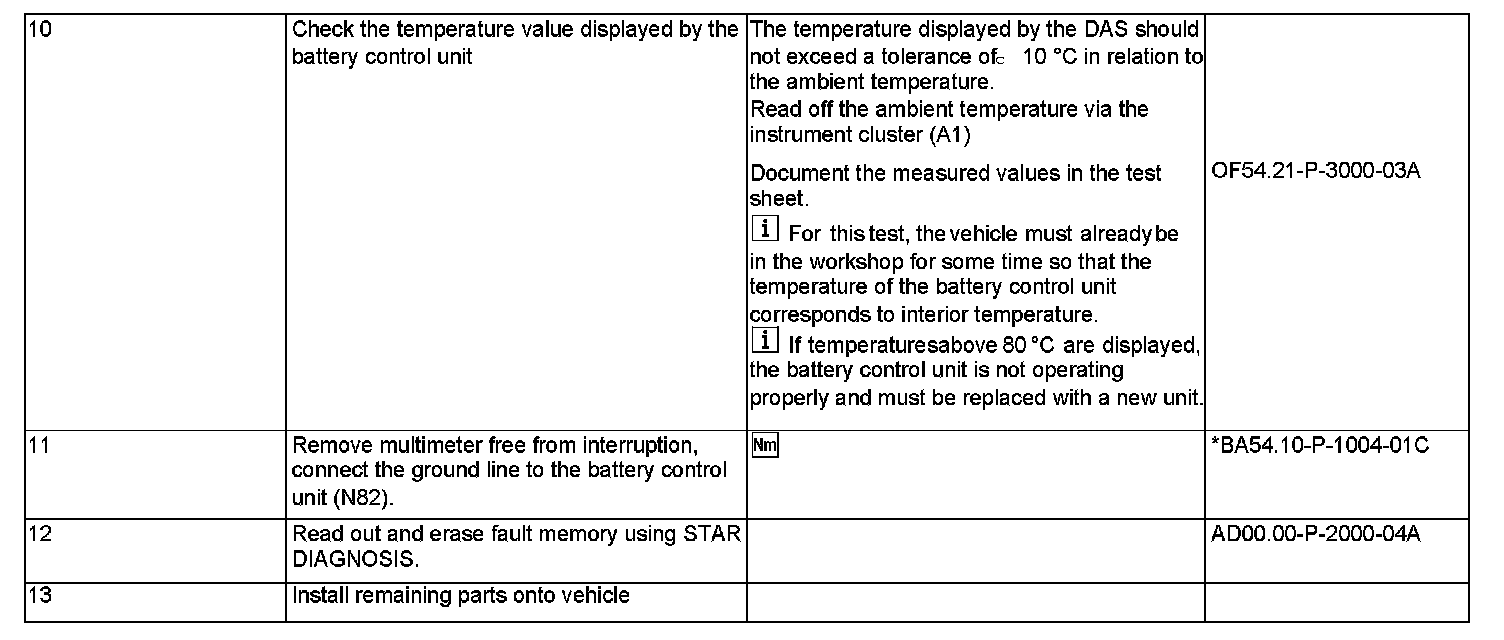

Part 3:

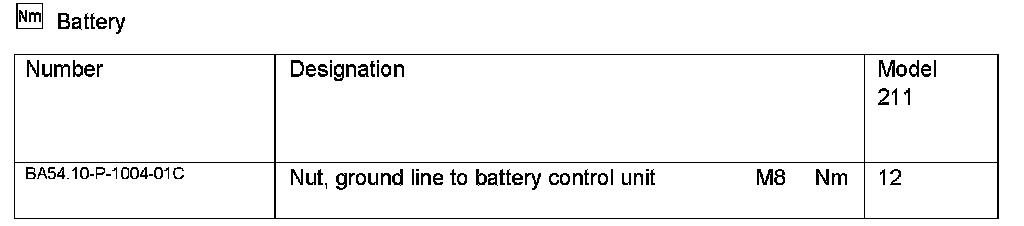

Battery

Battery:
