Steering Angle Sensor: Service and Repair

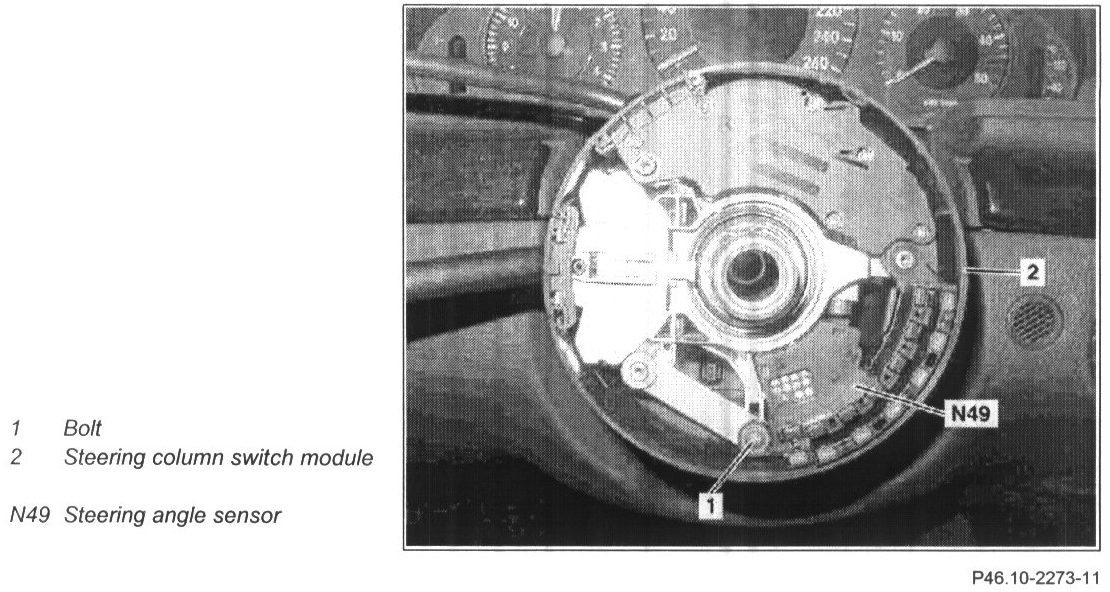

Remove/Install Steering Angle Sensor






1 Remove clock spring contact
2 Unscrew bolt (1)
3 Remove steering angle sensor (N49) from steering column switch module (2)
4 Install in the reverse order.
