Home >> Mercedes Benz >> 2003 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Service and Repair

Seat Occupant Sensor: Service and Repair

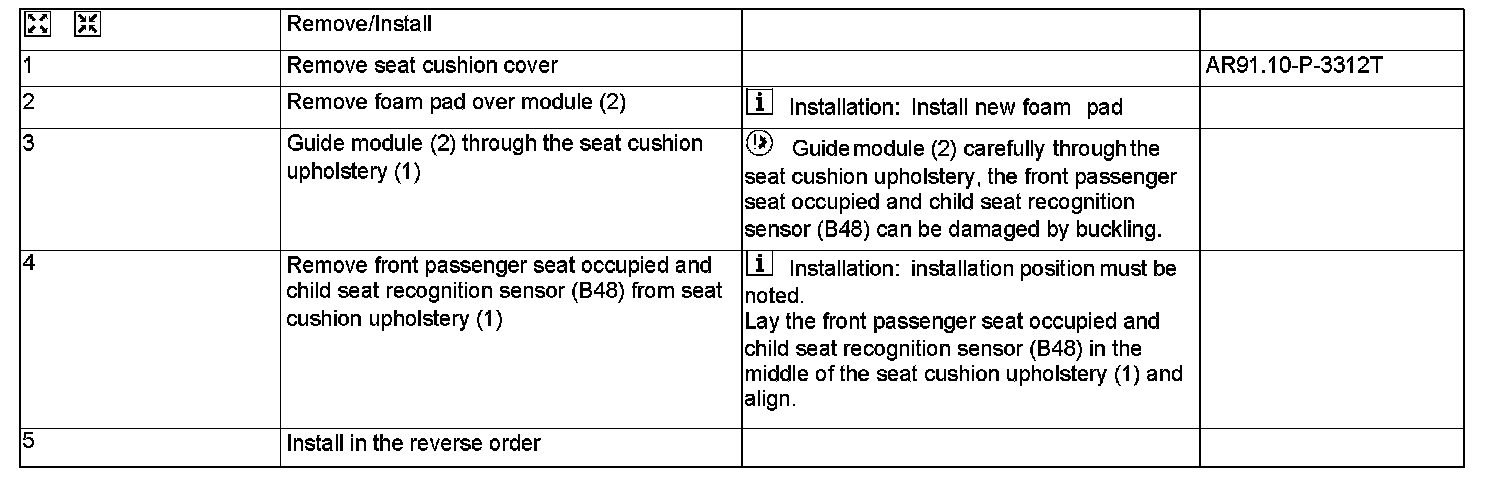

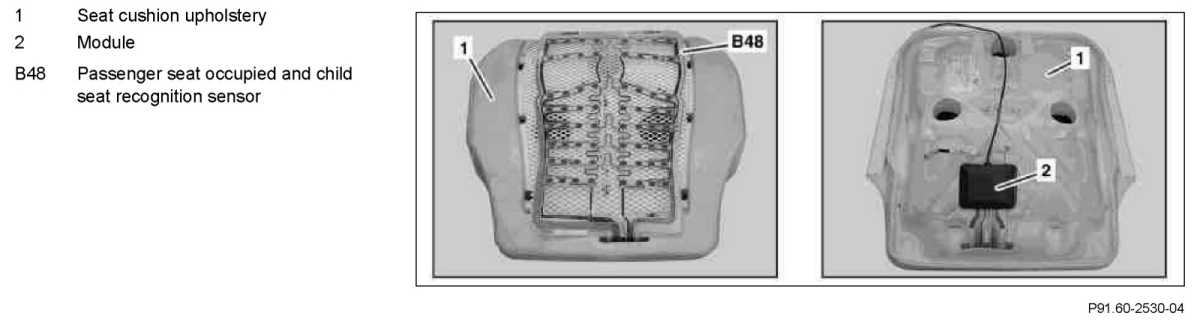

AR91.60-P-0720T Remove/Install Seat Occupied Recognition Sensor
- Front passenger seat
