AR54.25-P-2802T Remove/Install Steering Column Module
AR54.25-P-2802T Remove/Install Steering Column Module
AR54.25-P-2802T Remove/Install Steering Column Module

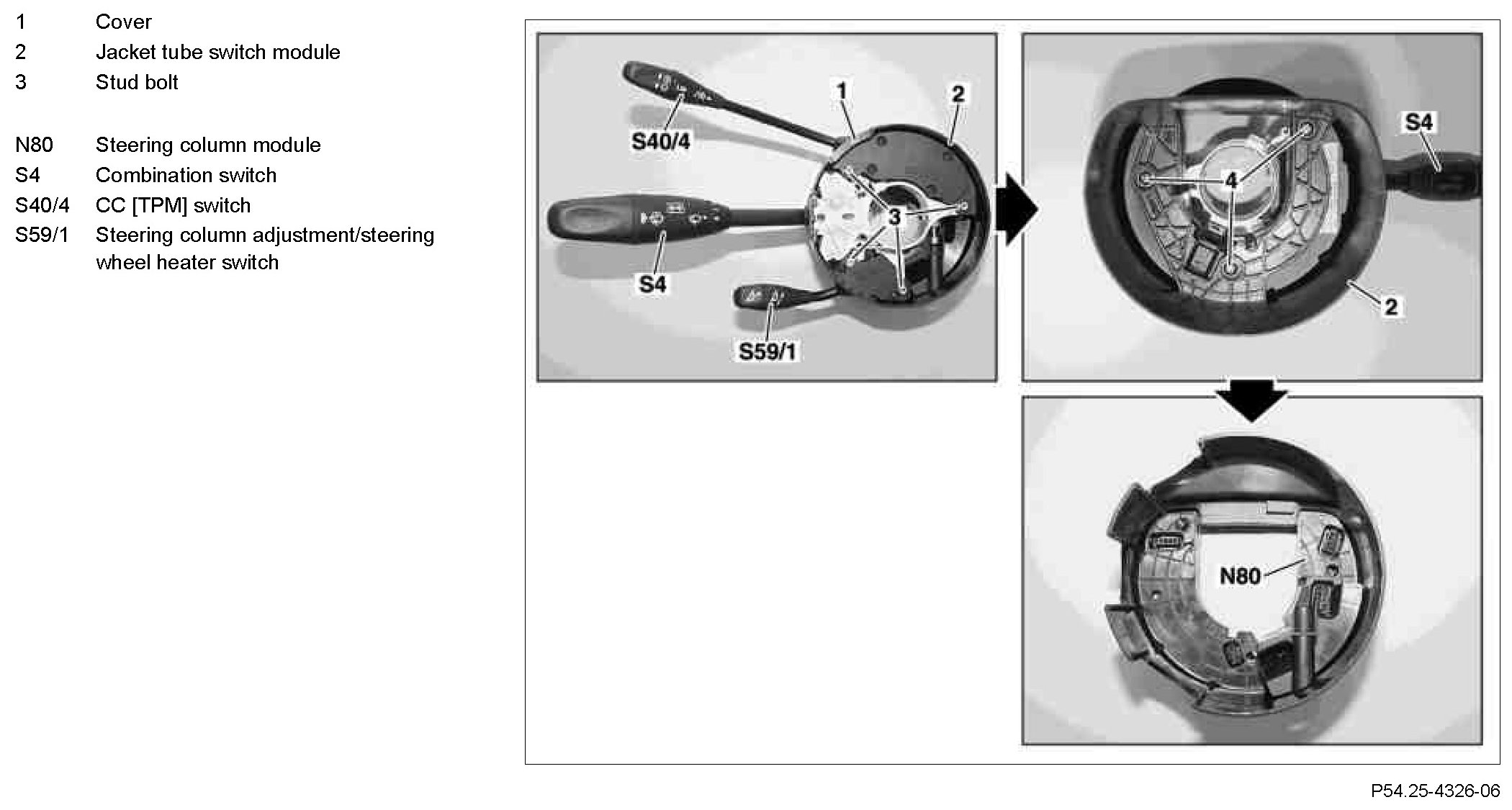

Component Identification:

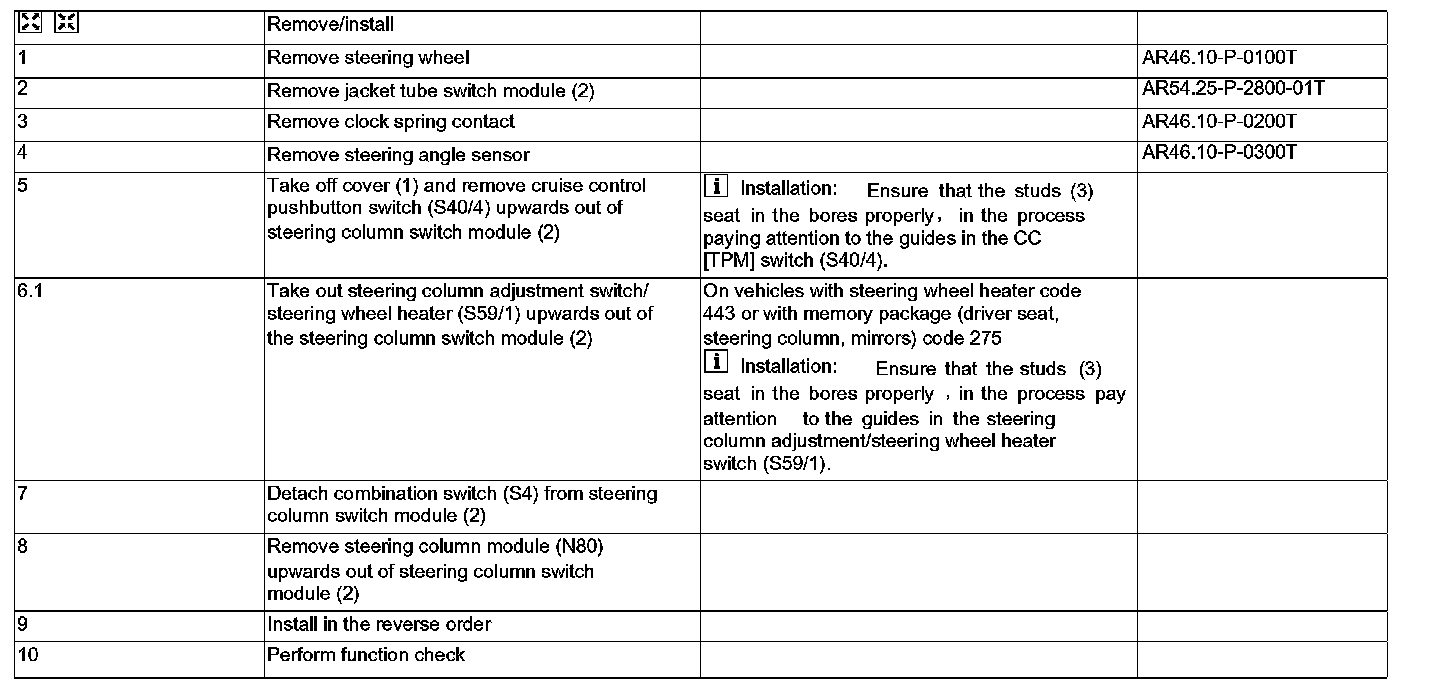

Steps 1 - 10:
