Evaporative Vapor Pressure Sensor: Locations

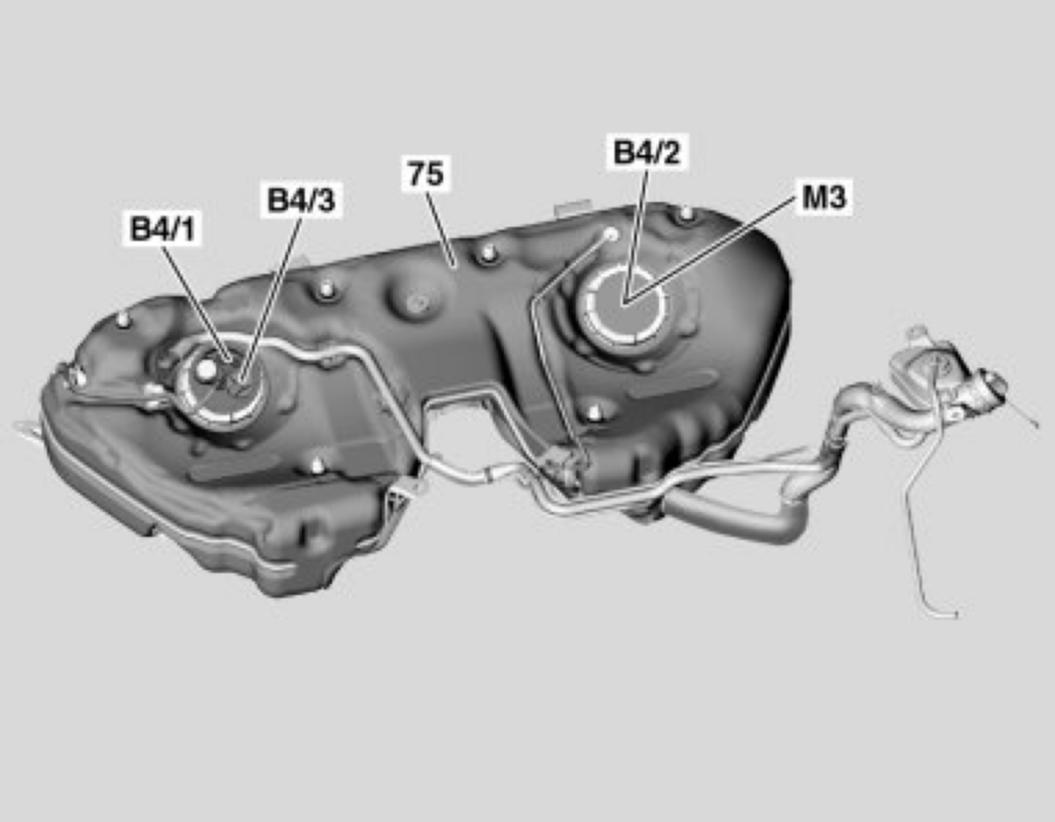

Fuel Tank Pressure Sensor, Position




75 Fuel tank
B4/1 Fuel level sensor, left half of tank
B4/2 Fuel level sensor, right half of tank
B4/3 Fuel tank pressure sensor
M3 Fuel pump (FP)

The fuel tank pressure sensor is integrated into the closing plate of the left fuel tank chamber.
