Pedal Value Sensor, Location




Pedal Value Sensor, Position

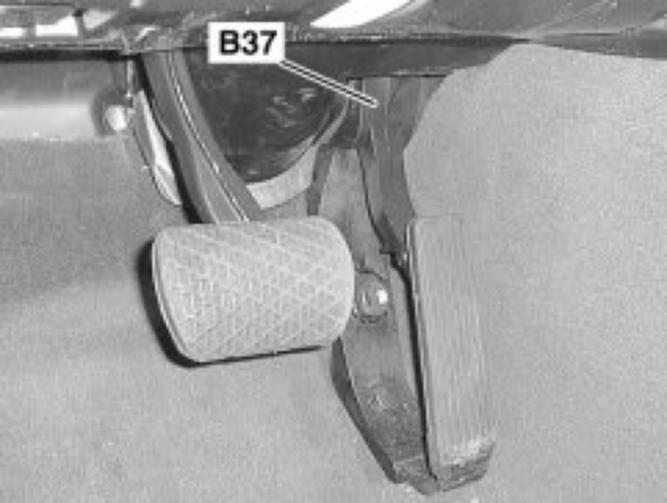

B37 Accelerator pedal sensor

The accelerator pedal sensor is located at the top of the accelerator pedal module.
