Chassis Specific Locations

Motor Electronics (ME-SFI) Fuel Injection And Ignition System Arrangement Of Components

Model 211

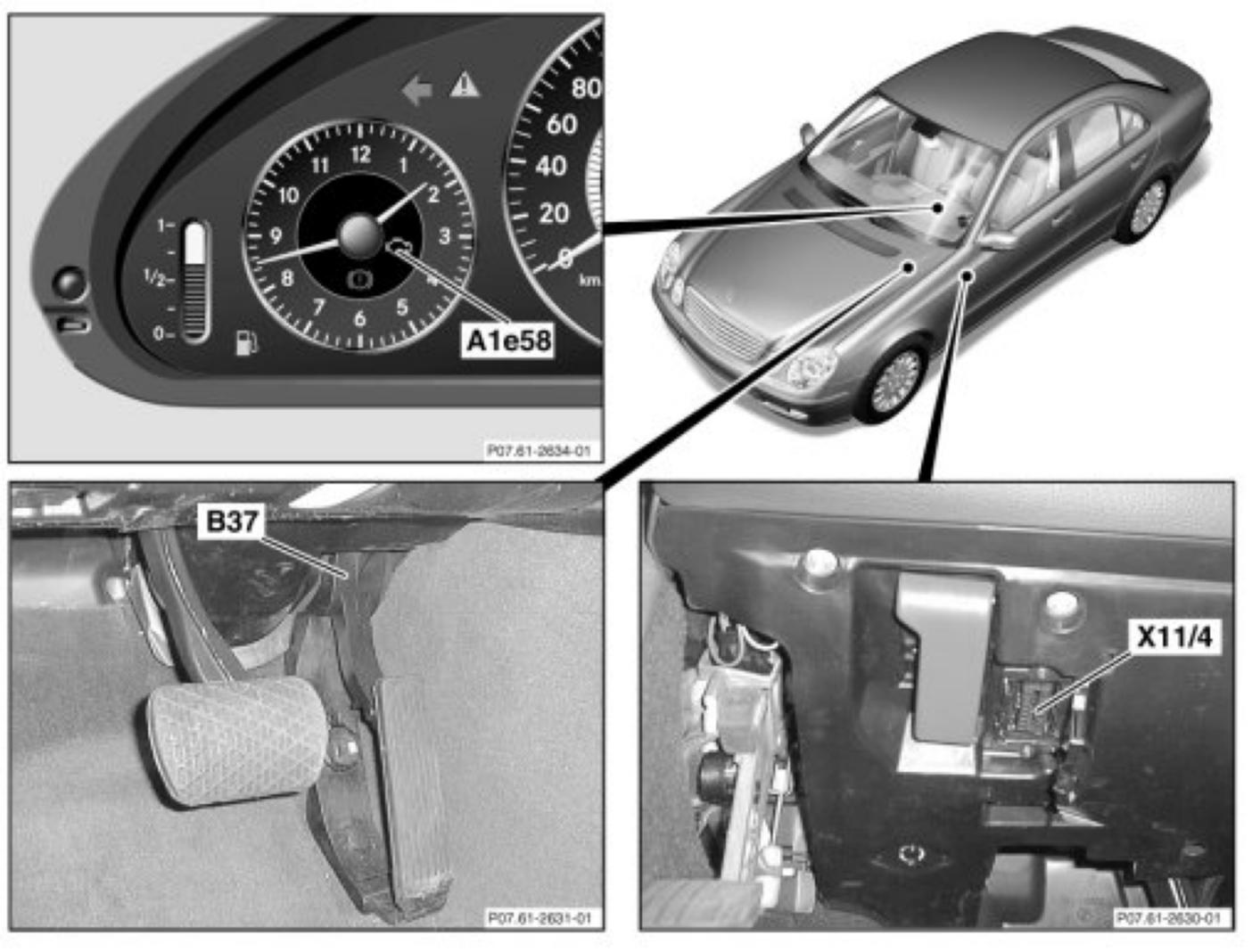

A1e58 Engine diagnosis indicator lamp
B37 Pedal value sensor
X11/4 Data link connector

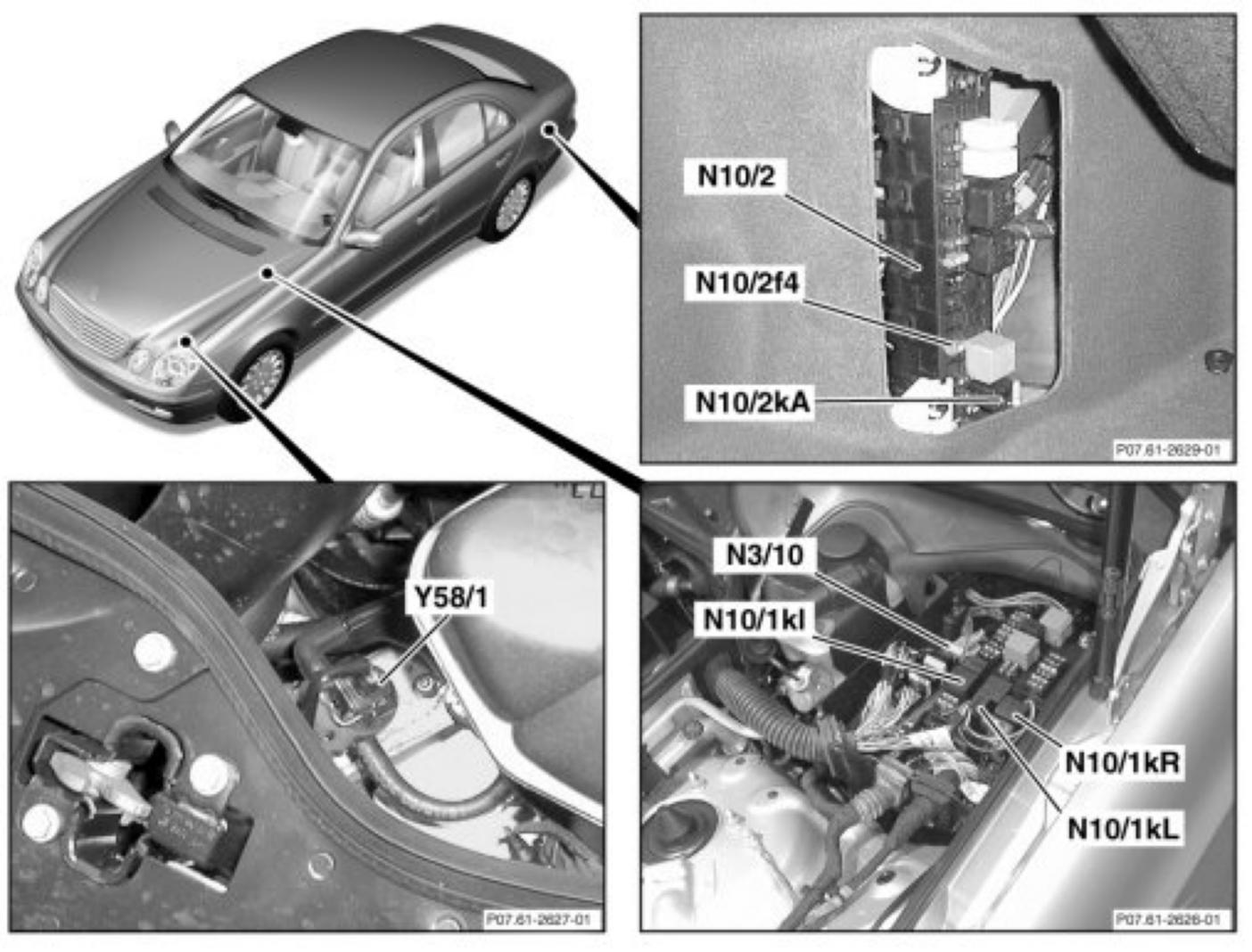

N3/10 ME-SFI control unit
N10/1IC Circuit 87 engine relay (driver-side SAM control unit with fuse and relay module)
N10/1kL Starter relay
N10/1kR AIR pump relay
N10/2 Rear SAM control unit with fuse and relay module
N10/2F4 Fuse 4 for fuel pump
N10/2KA Fuel pump relay module
Y58/1 Purge control valve




G3/3 Left O2 sensor upstream of TWC
G3/4 Right O2 sensor, upstream of TWC
G3/5 Left O2 sensor downstream of TWC
G3/6 Right O2 sensor, upstream of TWC
M4/7 Electric suction fan engine and AC with integrated control
