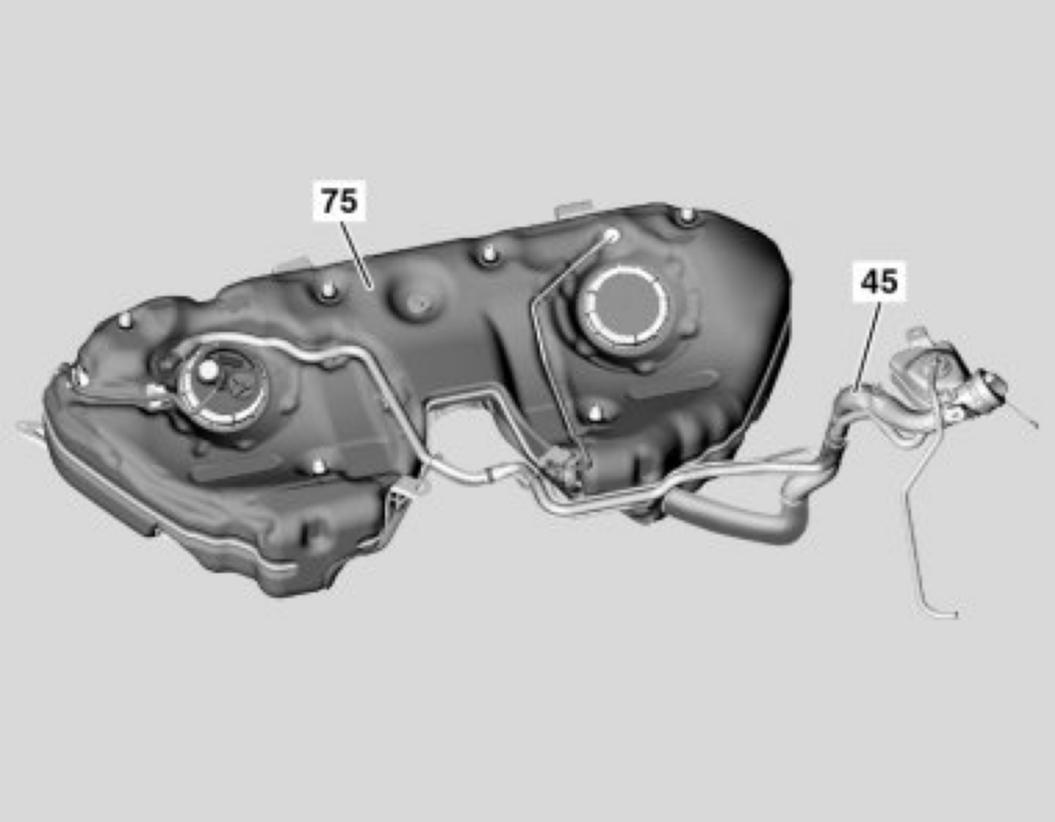

Fuel Tank, Location

Fuel Tank, Position




45 Filler neck
75 Fuel tank

The fuel tank is positioned at the frame floor ahead of the rear axle because of the through-loading facility (from trunk into passenger compartment).
T-Model: Position as for sedan.
