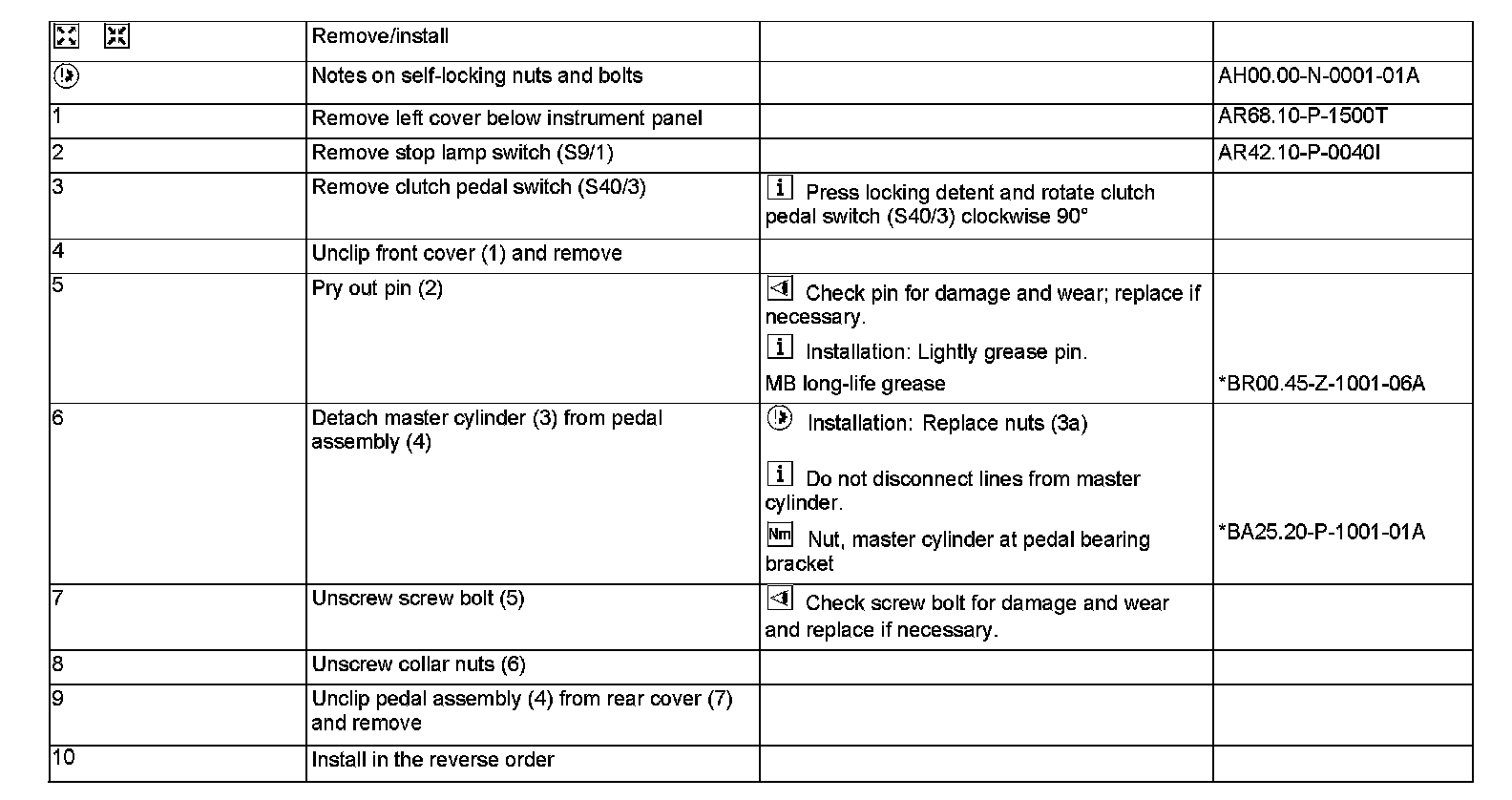

AR29.10-P-0300T Remove/Install Pedal Assembly




AR29.10-P-0300T Remove/Install Pedal Assembly
- with transmission 716.6
- except CODE (424) Sequentronic (SEQ)
