AR91.10-P-1465T Remove/Install Front Seat Backrest



AR91.10-P-1465T Remove/Install Front Seat Backrest
- with CODE (842) Folding front passenger armrest (usable as table)

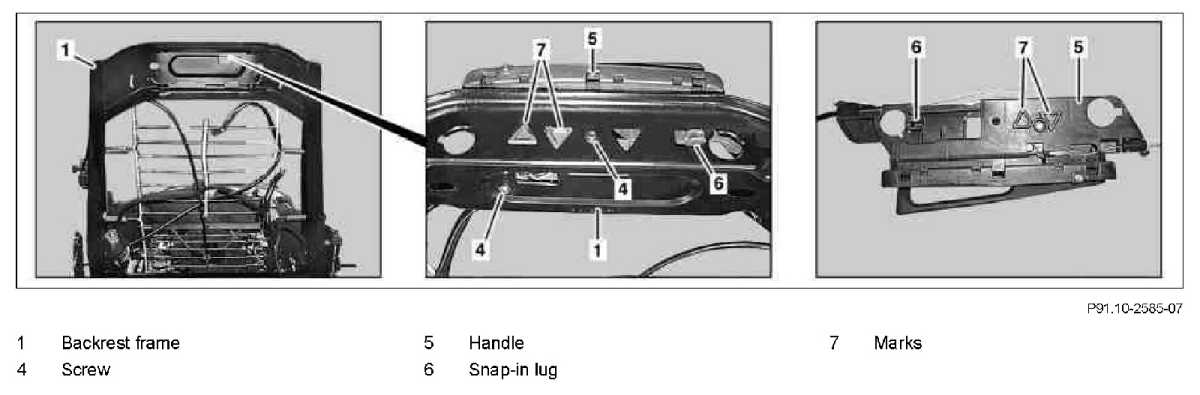

Part 1:

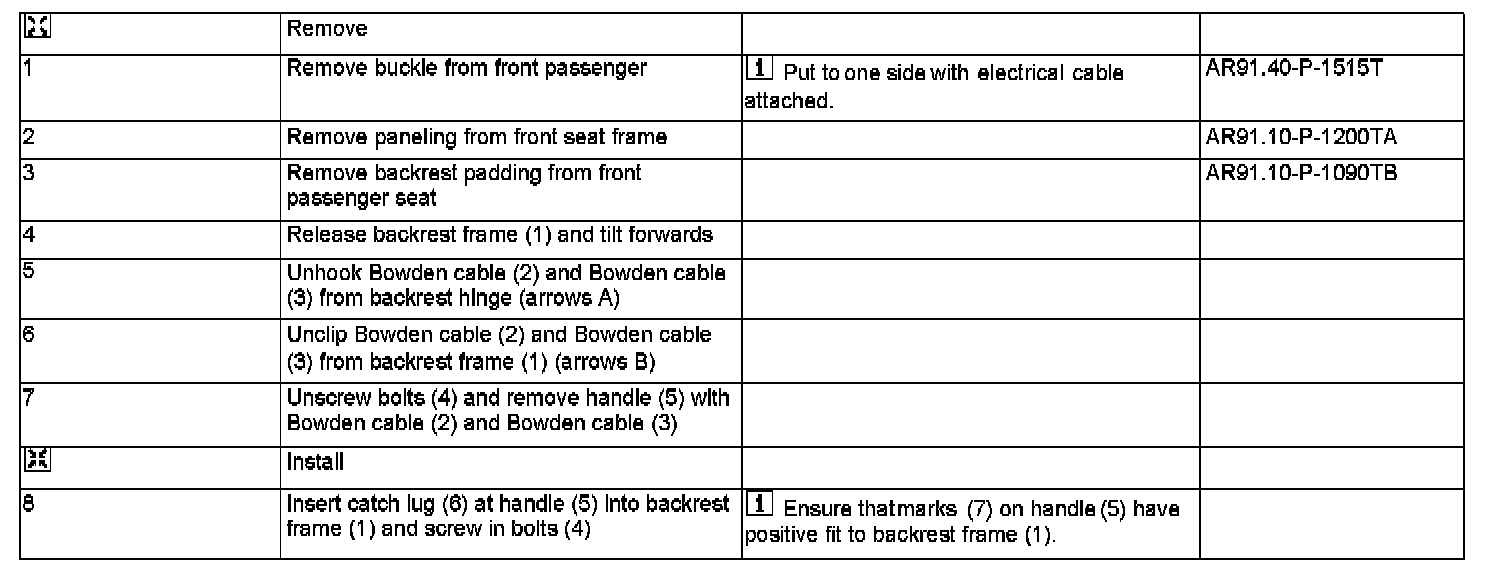

Part 2:
