Campaign - Remote Trunk Closing Unit Replacement

Campaign No. 2006010006, February 2006

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER

PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 211 MODEL YEAR 2003-04

REPLACE REMOTE TRUNK CLOSING CONTROL UNIT

This Service Campaign has been initiated because DCAG has determined that on the affected vehicles with remote trunk closing (SA Code 881; see VIN range) the remote trunk closing control unit may not be sufficiently durable and may result in the need to open and close the trunk manually. Dealer will replace the control unit.

Please review the Effective Serial Number chart located below, and, if necessary, repair the subject vehicles during the vehicle's next service.

Prior to performing this Service Campaign:

^ Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.

^ Please review the entire Service Campaign bulletin.

Approximately 1551 vehicles are affected.

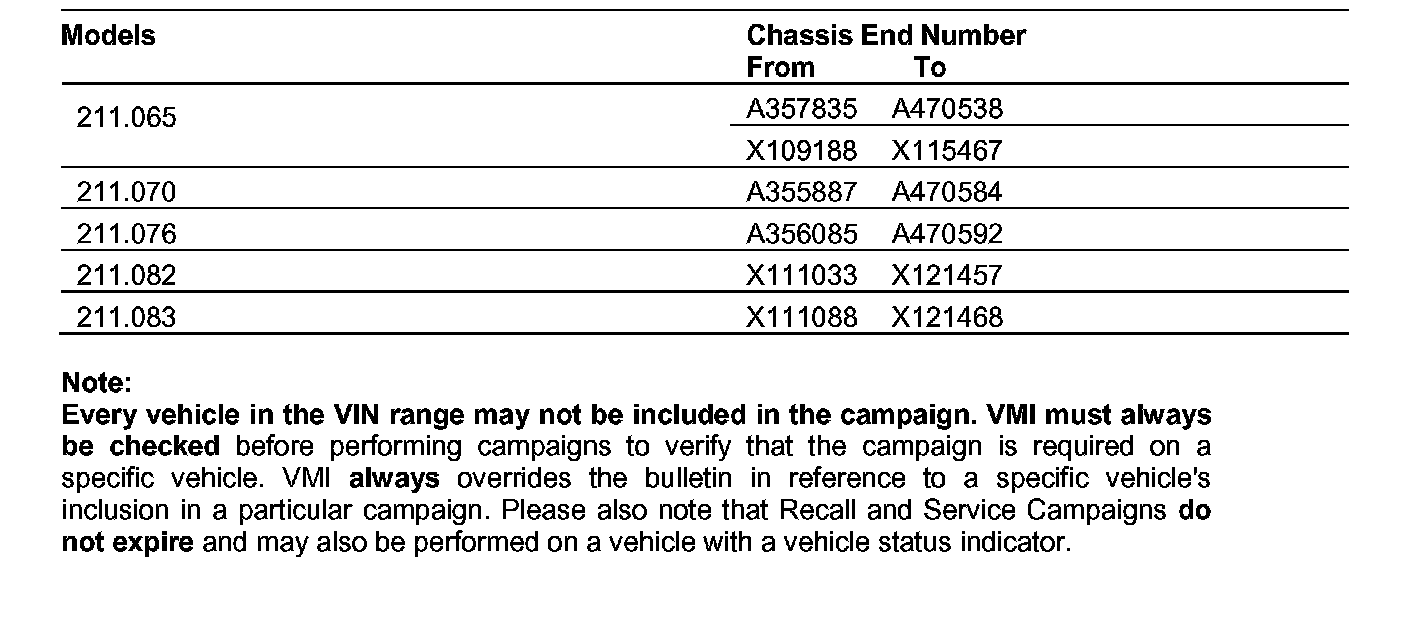

Effective Serial Number Range

Procedure

A. INSPECT REMOTE TRUNK CLOSING CONTROL UNIT

1. Withdraw ignition key.

2. Remove old trunk closing remote control unit.

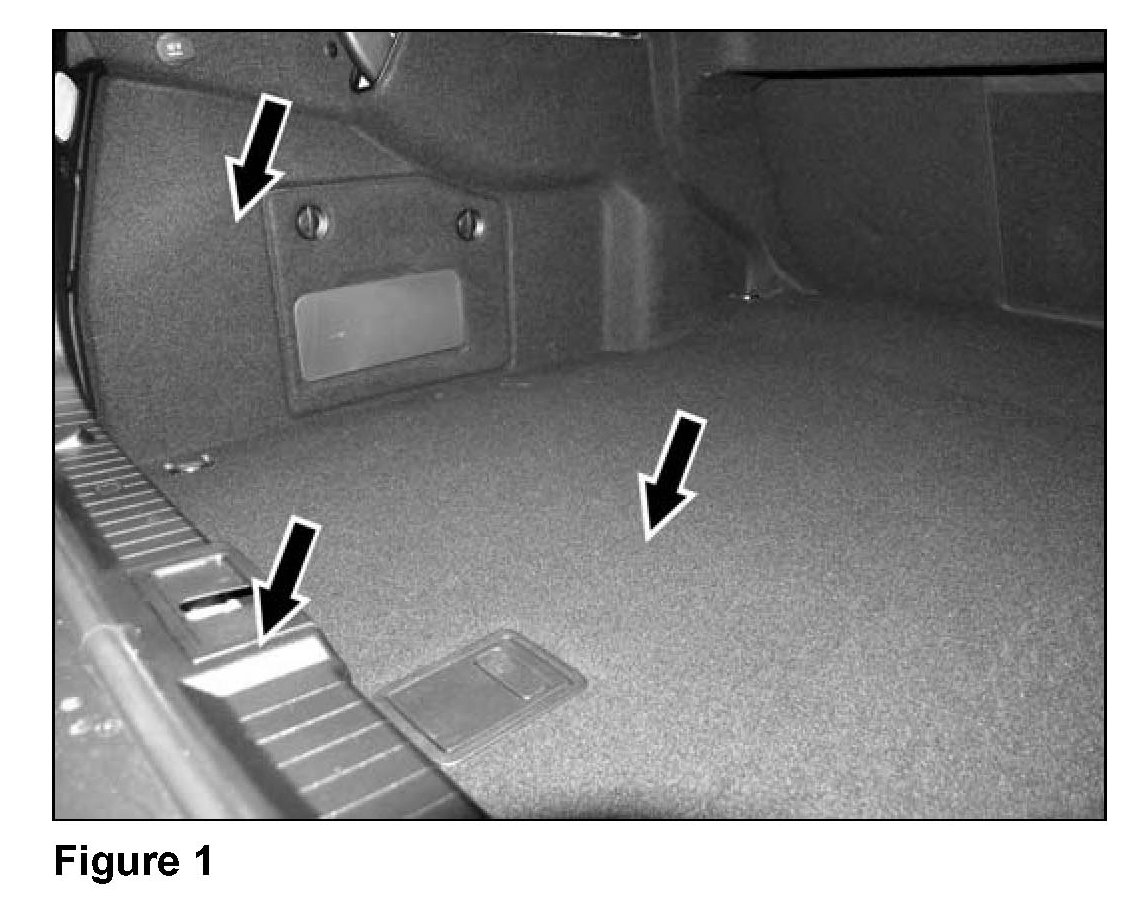

^ Remove panels (arrows, Figure 1) to access control unit.

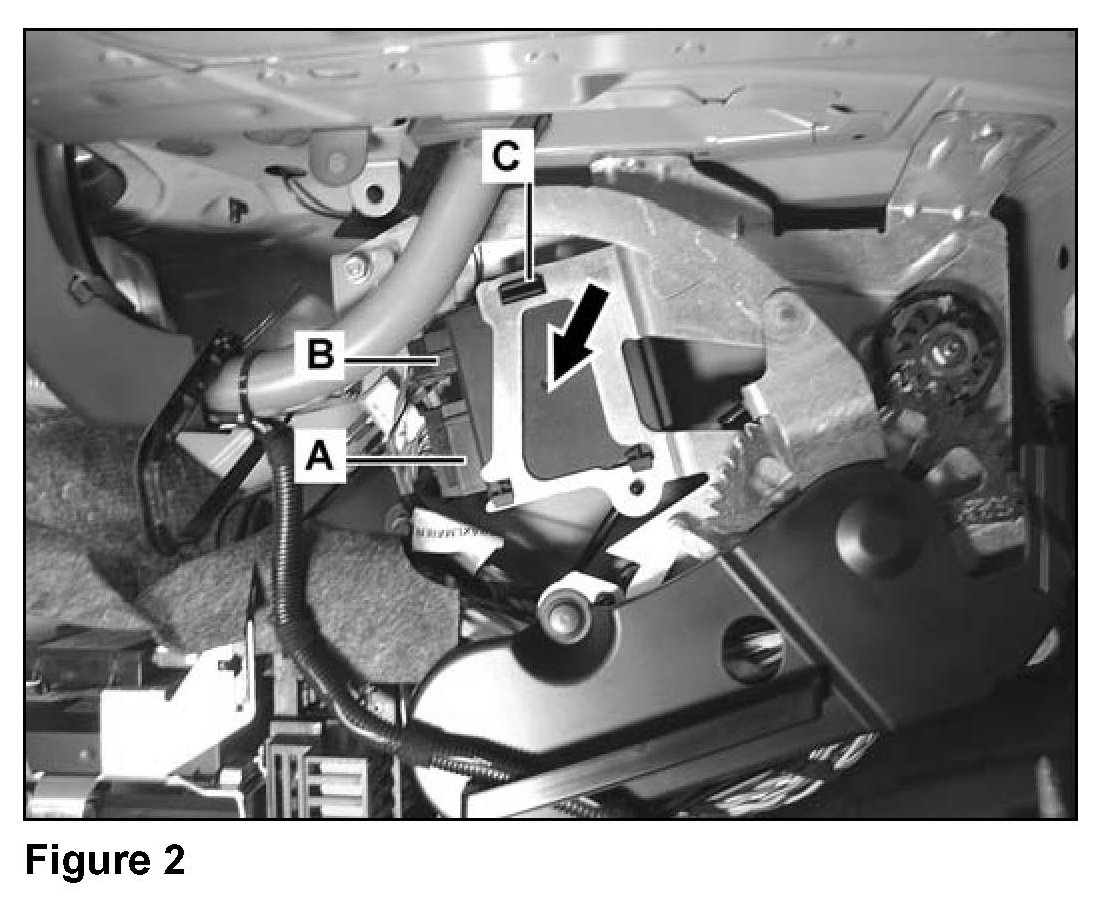

^ Disconnect electrical connectors X1 (A, Figure 2) and X2 (B) from control unit (arrow).

^ Remove retainer tab (C) and remove control unit.

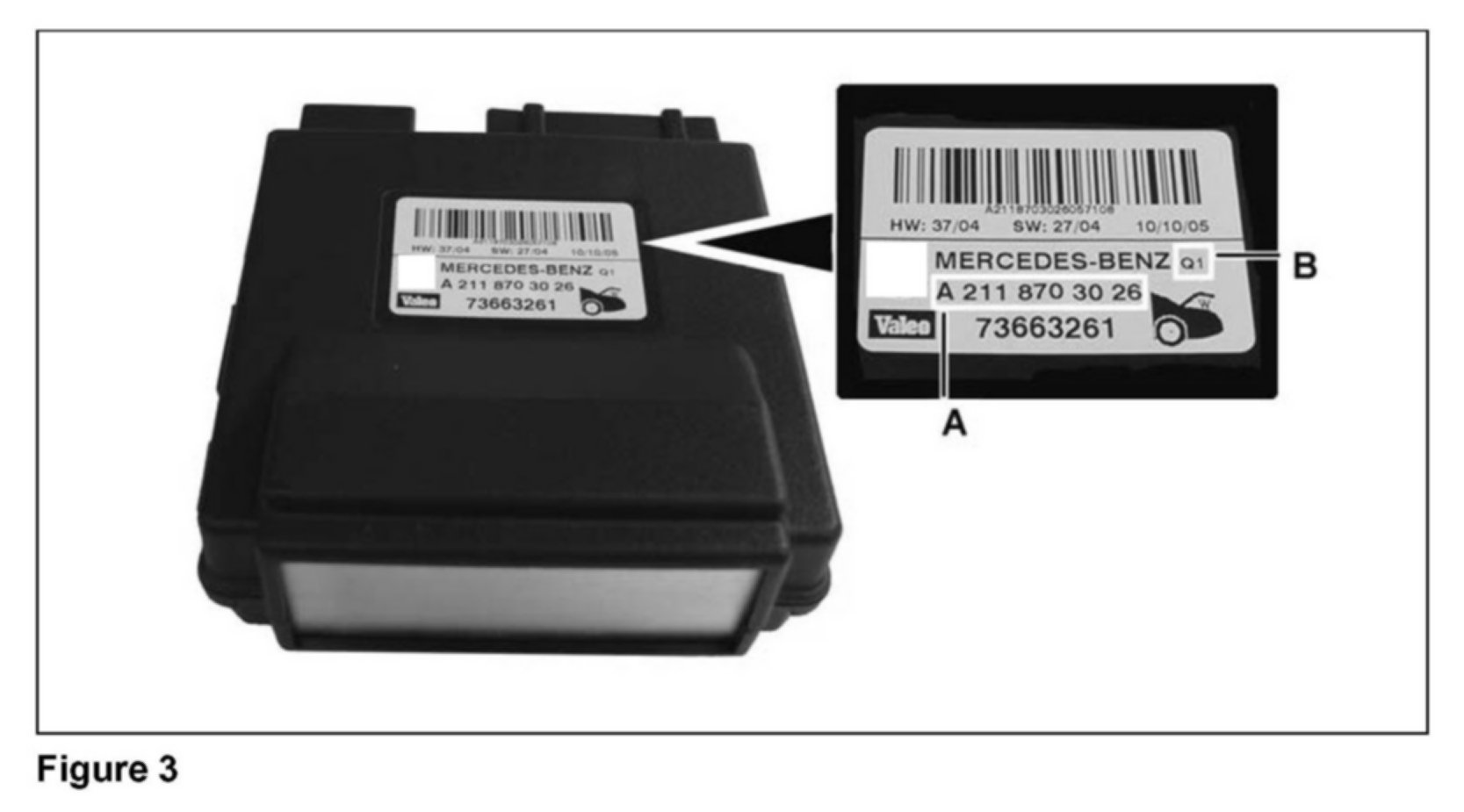

3. Check part number (A, Figure 3) and Q number (B) of unit.

^ If part number is A 211 820 45 26 and Q number is 8, proceed to SUBJECT B - REPLACE REMOTE TRUNK CLOSING CONTROL UNIT.

^ If part number is not A 211 820 45 26 and/or Q number is not 8, proceed to step 4.

4. Reinstall control unit, first connecting the smaller connector (X2; B in Figure 2), then the larger one (X1; A in Figure 2).

CAUTION!
Ensure to connect electrical connectors in the order outlined above to avoid possible damage to the control unit.

Note:
It is not necessary to renormalize the control unit.

5. Reinstall trunk panels.

B. REPLACE REMOTE TRUNK CLOSING CONTROL UNIT

1. Connect Star Diagnosis.

2. Navigate through the following SDS menus:

"Control unit groups/ Seats and doors/ TLC - Trunk lid control/Initial startup/ Initial startup with manual settings input for new control unit".

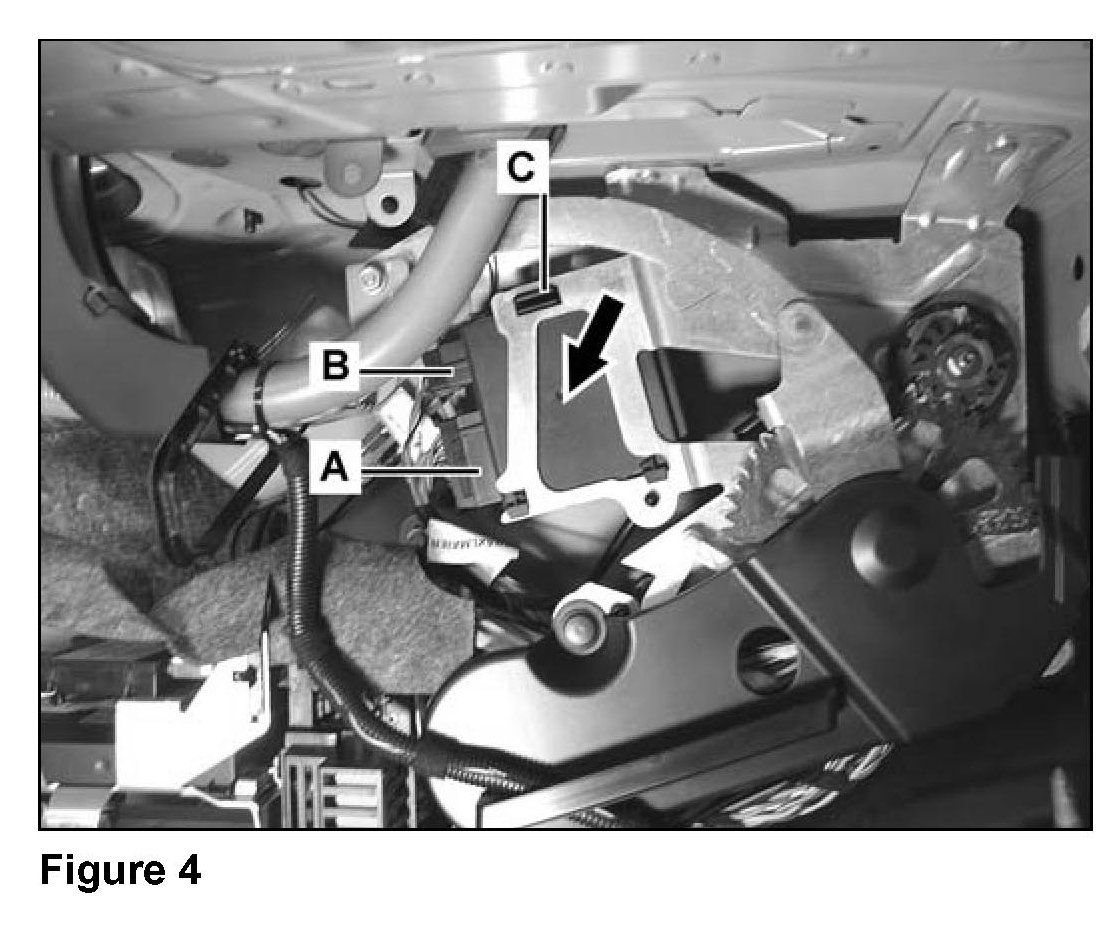

3. Install new control unit, first connecting the smaller connector (X2; B in Figure 4), then the larger one (X1; A in Figure 4); reinstall retainer tab (C).

CAUTION!
Ensure to connect electrical connectors in the order outlined above to avoid possible damage to the control unit.

4. Follow on-screen instructions for Steps 3-6, then continue to follow on-screen instructions to normalize trunk lid.

5. Test proper function of remote trunk closing by opening and closing trunk lid with various actuation possibilities.

6. Read out and erase fault codes and event memory; disconnect Star Diagnosis.

7. Reinstall trunk panels.

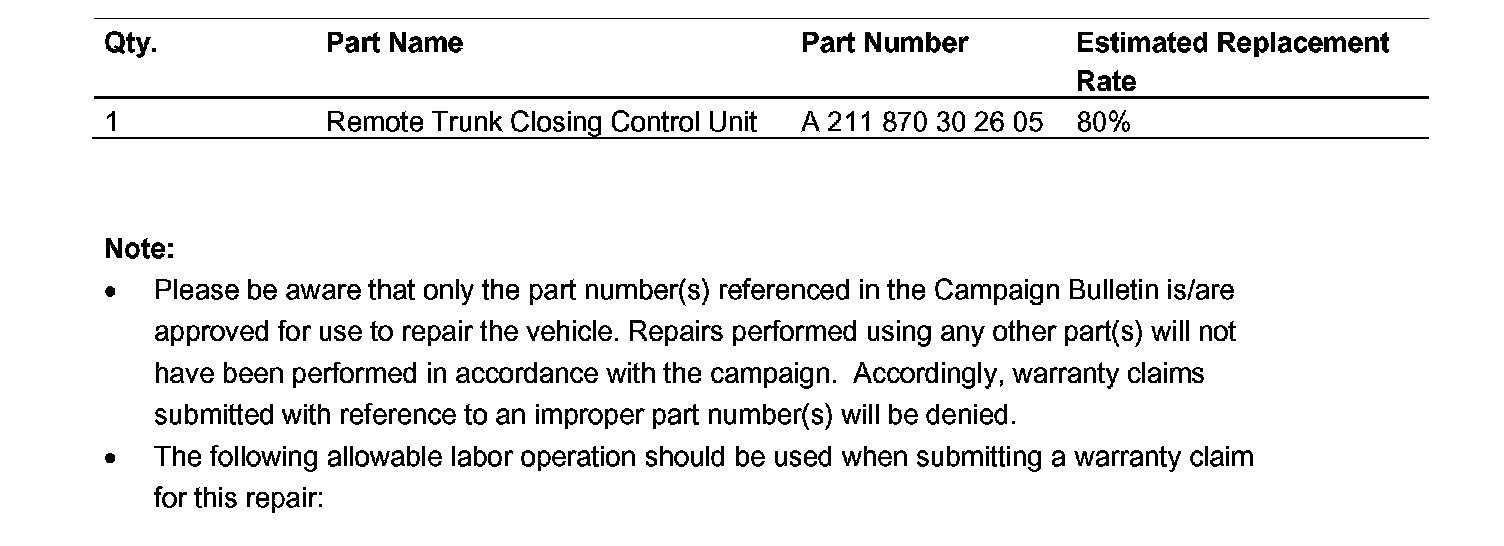

Parts Information

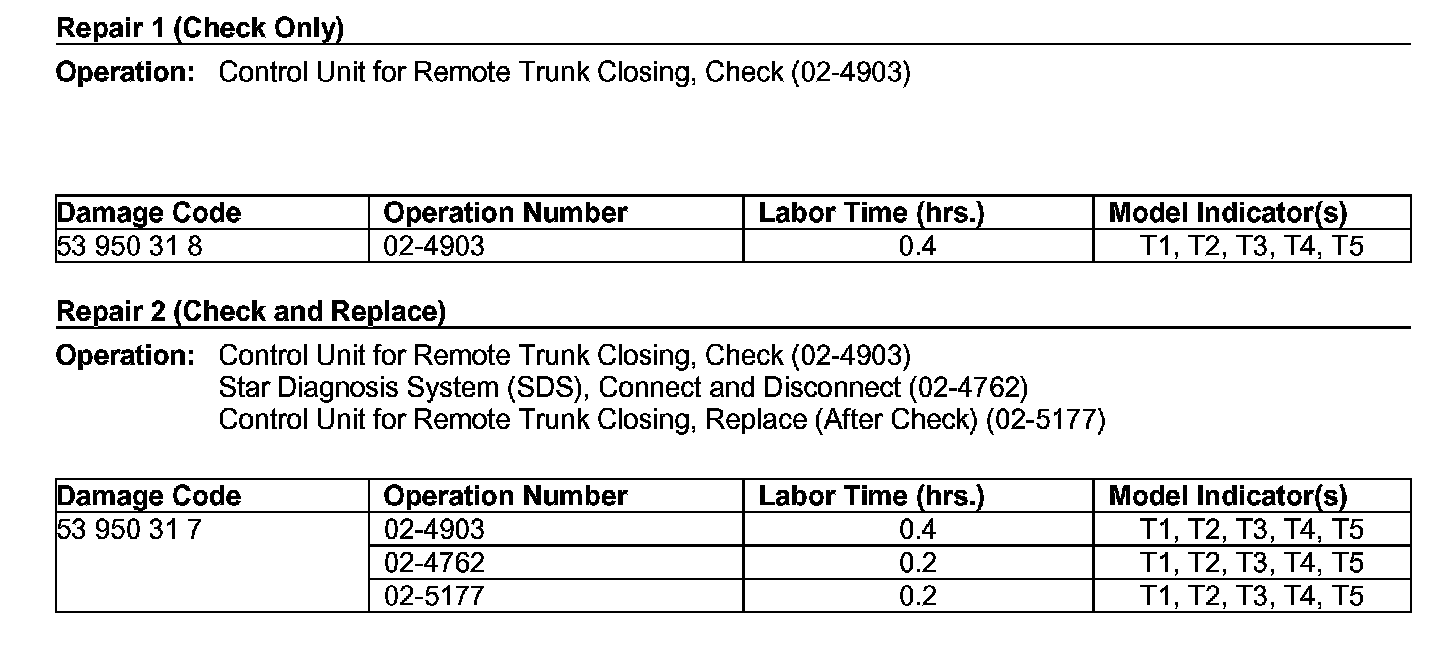

Warranty Information
