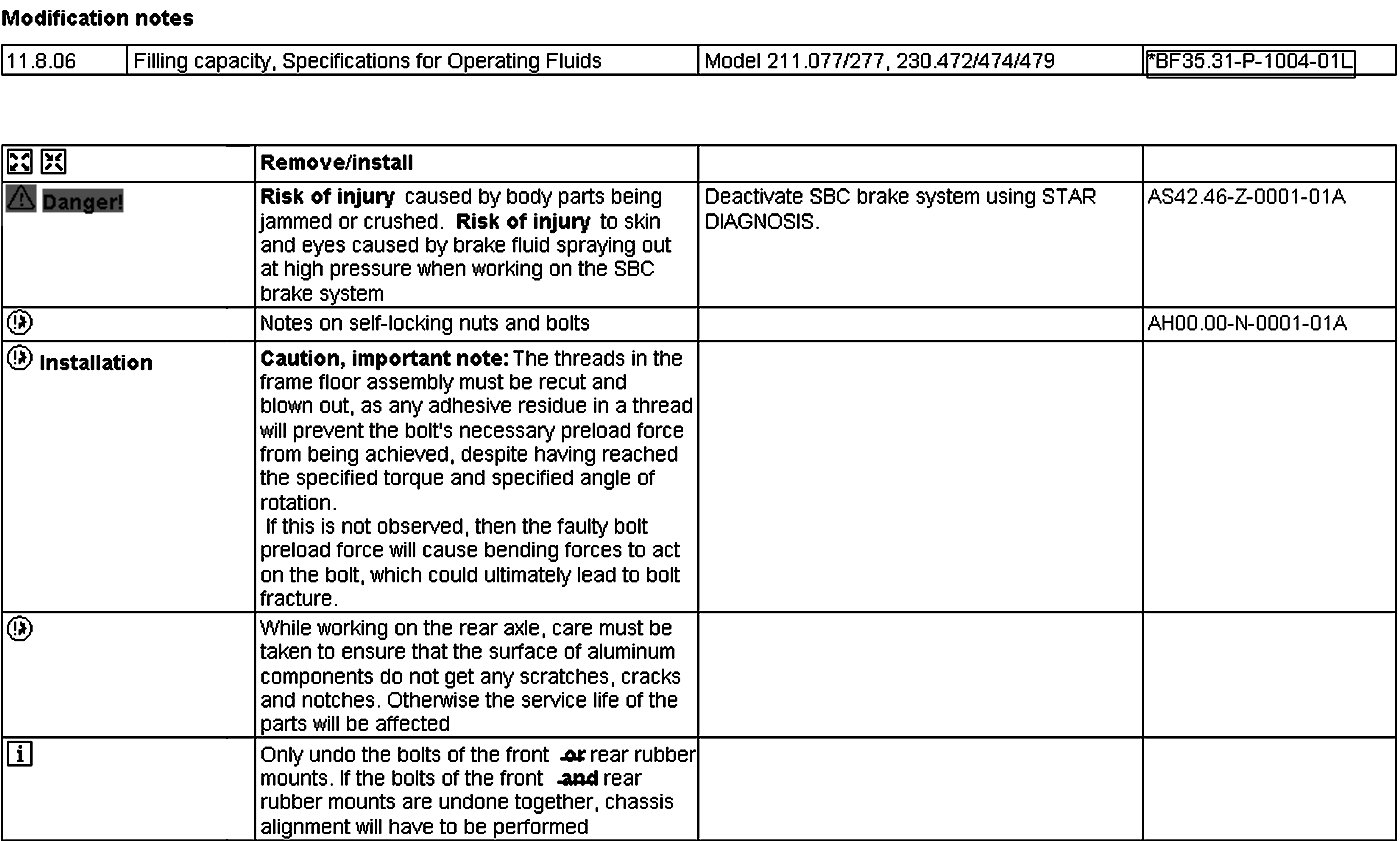

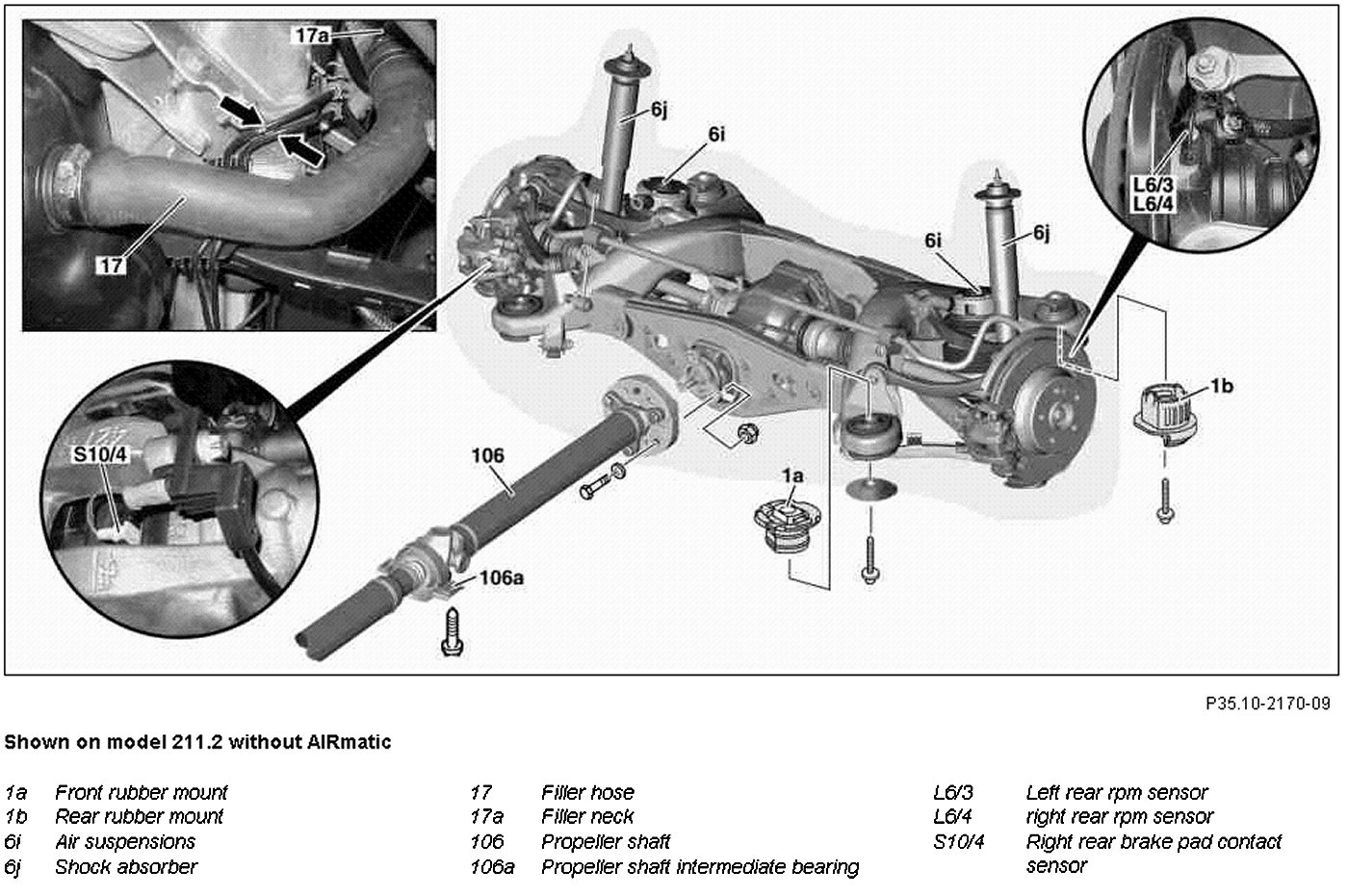

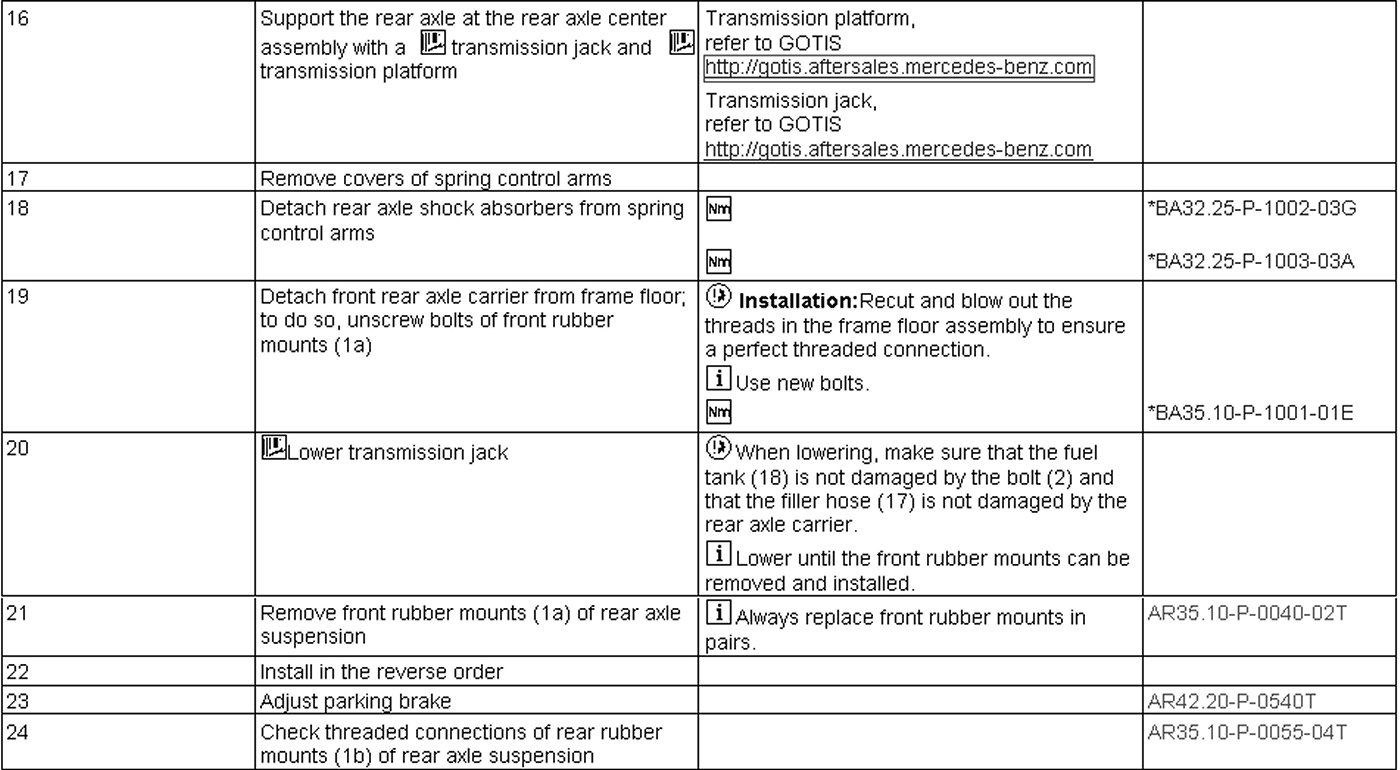

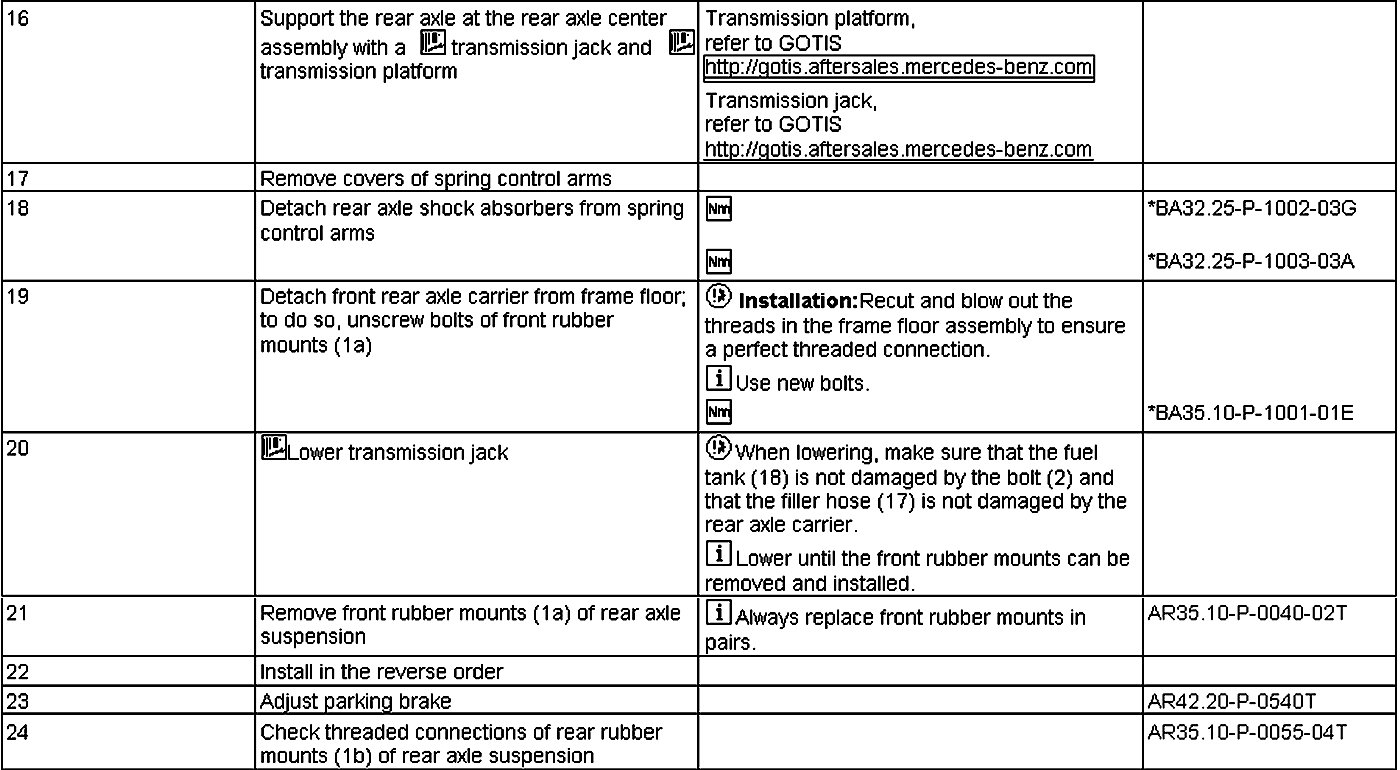

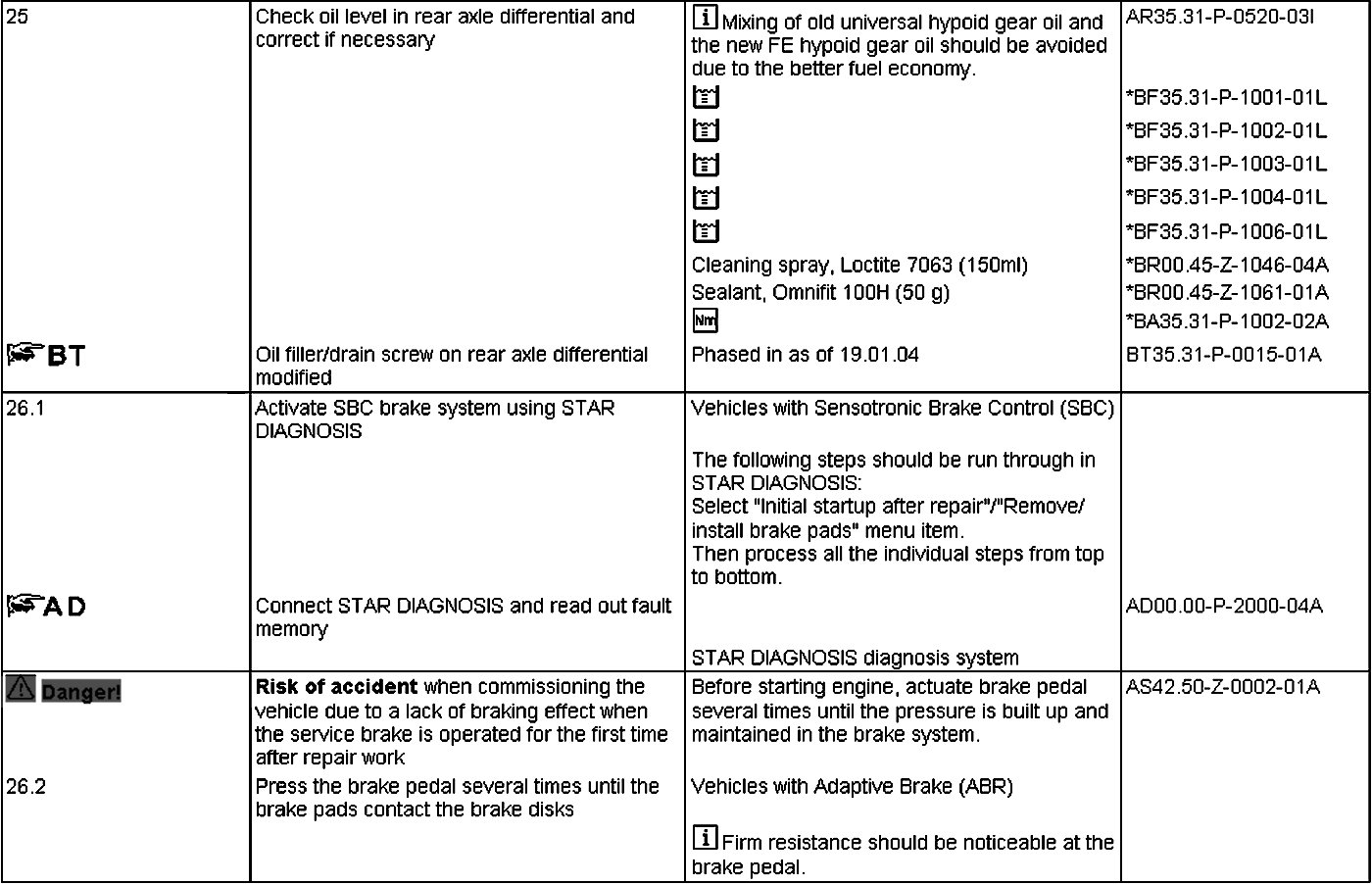

AR35.10-P-0041T Front Rubber Mount of Rear Axle Mount - Removal and Installation
AR35.10-P-0041T Front Rubber Mount of Rear Axle Mount - Removal and Installation
AR35.10-P-0041T Front Rubber Mount of Rear Axle Mount - Removal and Installation
