AR68.10-P-1050T Remove/Install Cover For Loudspeaker



AR68.10-P-1050T Remove/Install Cover For Loudspeaker

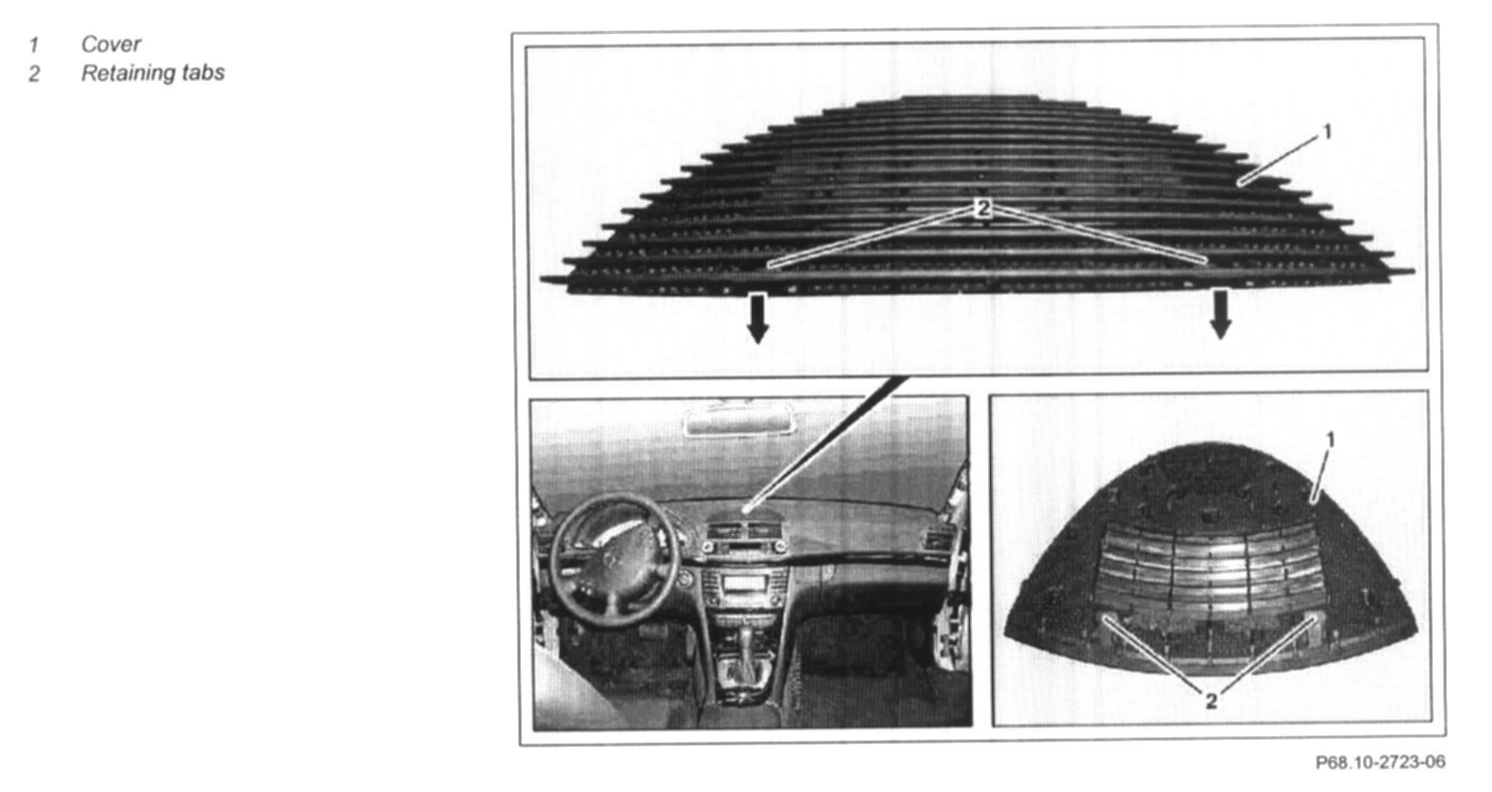

1 Release retaining tabs (2) with screwdriver in the direction of the arrow
2 Pull cover (1) toward rear out of instrument panel
3 Install in the reverse order
