AR82.30-P-6400P Remove/Install Wiper System

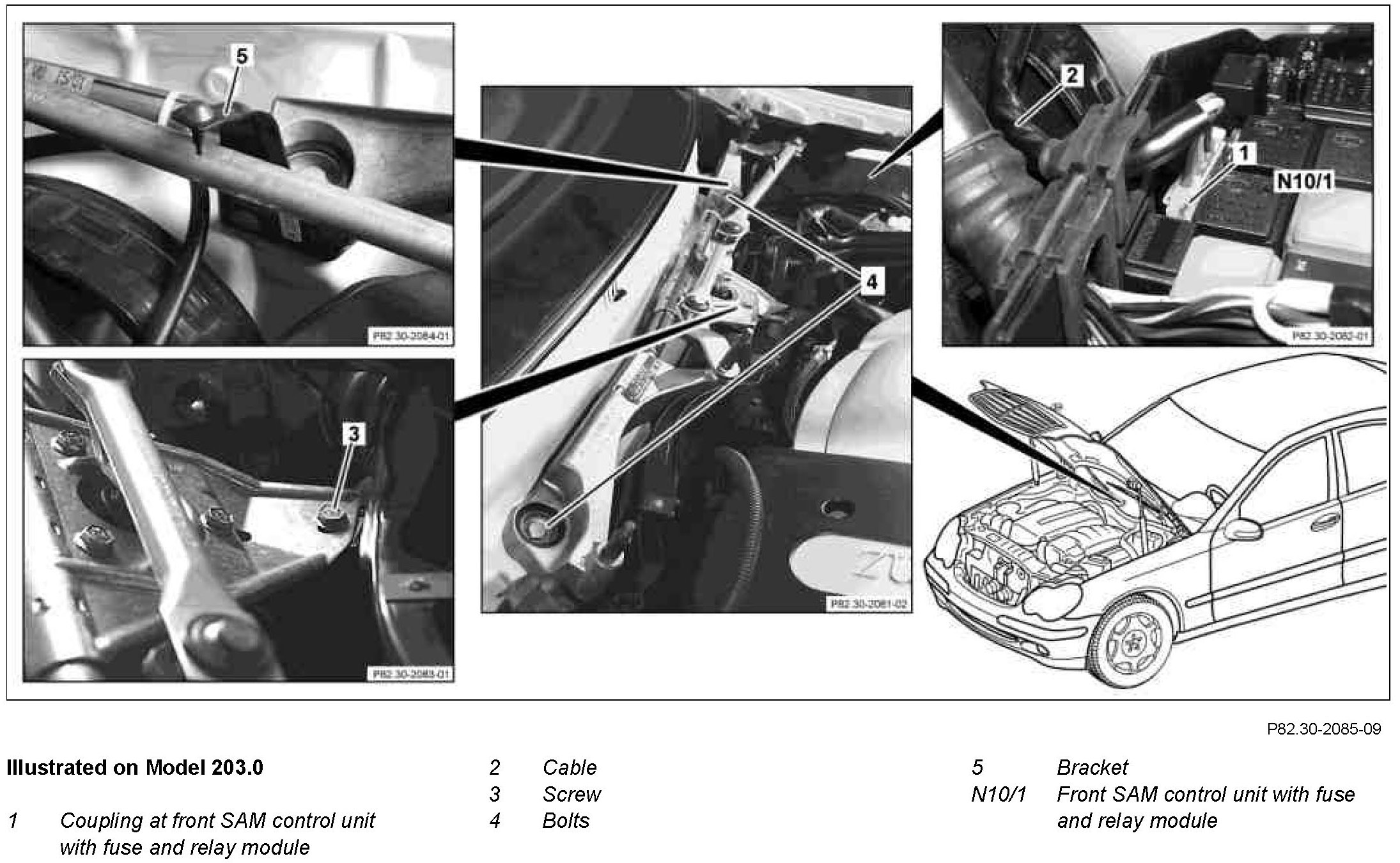

Component Identification:

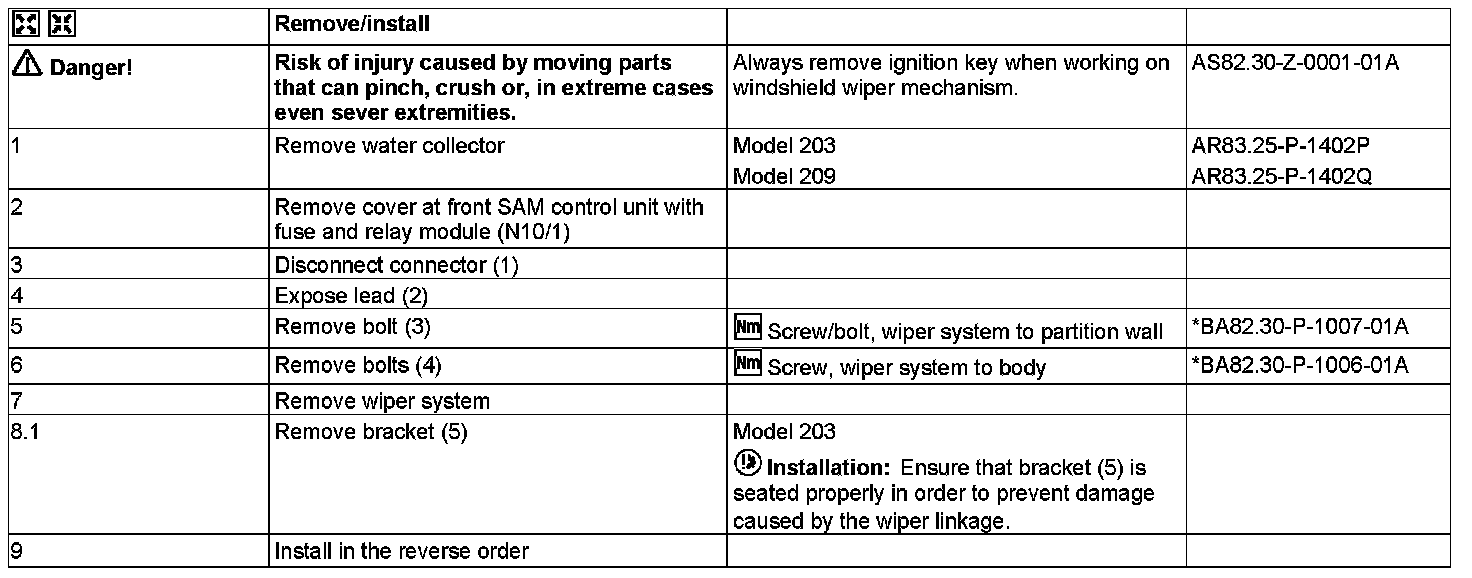

Steps 1 - 9:

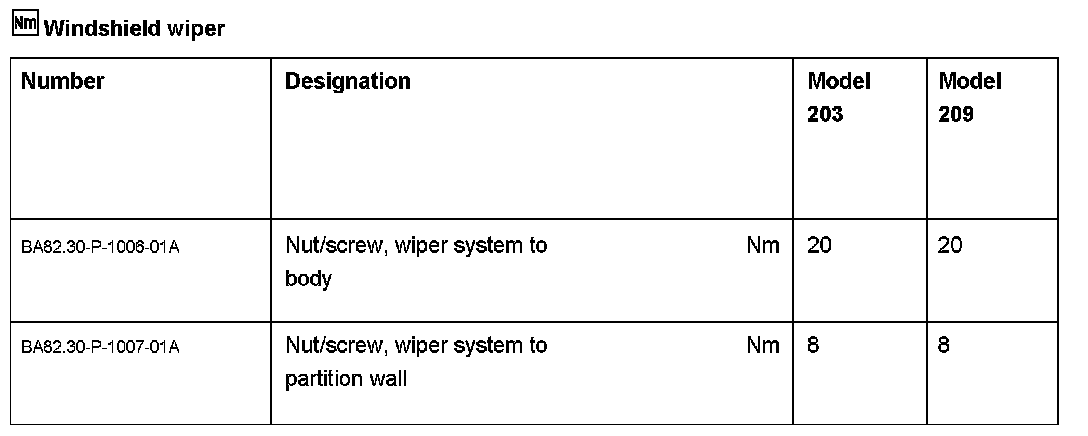

Windshield Wiper:
