AR67.10-P-1200Q Remove/Install Windshield Molding

AR67.10-P-1200Q Remove/Install Windshield Molding







Remove

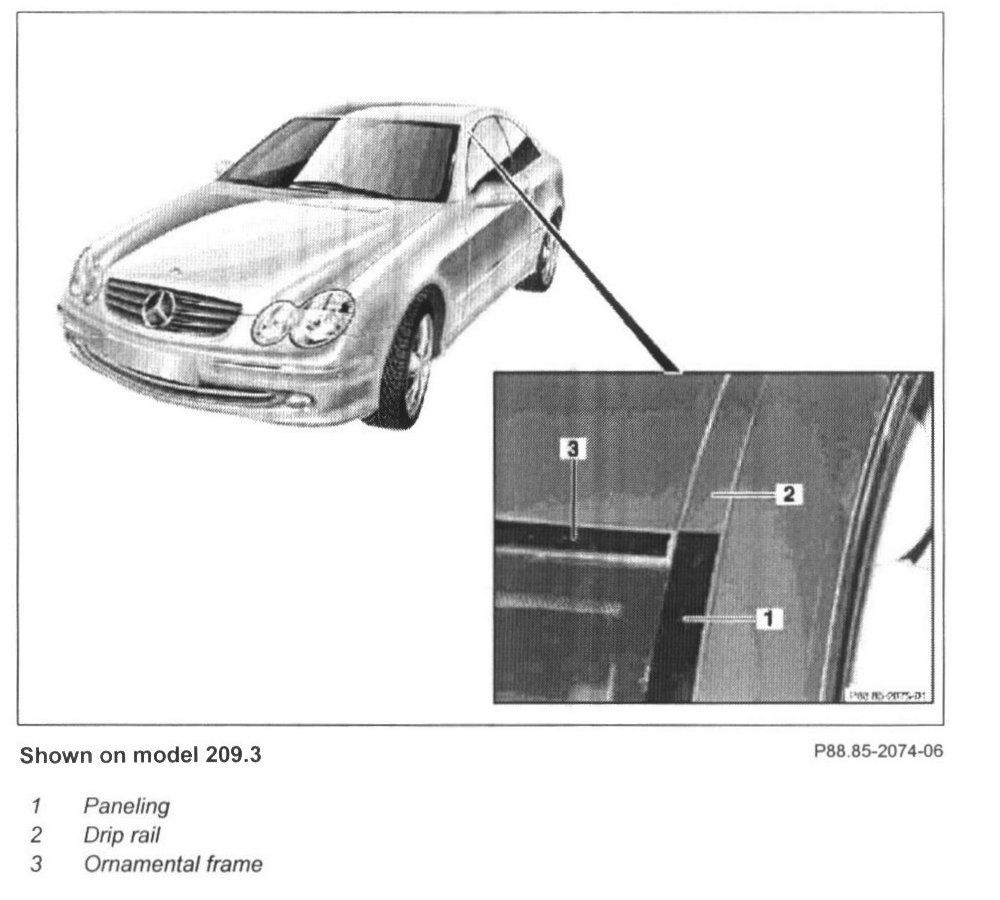

1 Remove paneling (1)
2 Remove front drip rail (2).
3 Unclip ornamental frame (3), remove upward
Assembly wedge, See Special Tools below

Install
4 Install ornamental frame (3), align at side and press on
5 Press on front drip rail (2).
6 Install paneling (1).

Special Tools

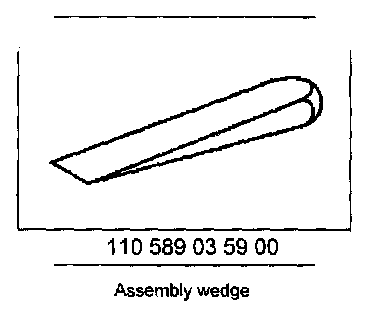

Assembly Wedge - 110 589 03 59 00:
