Window Shade: Diagrams

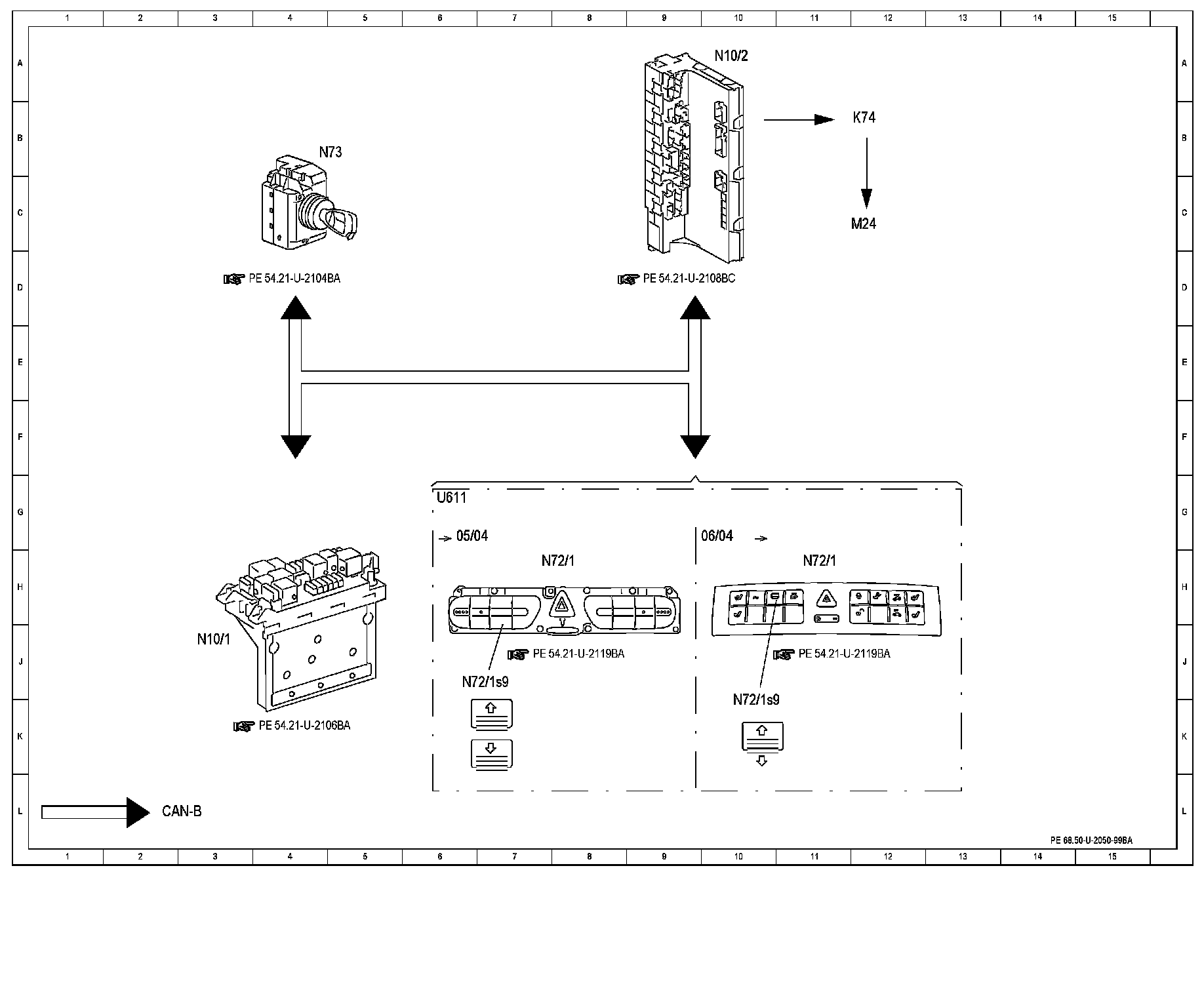

Function Diagram For Rear Sun Shade PE68.50-U-2050BA
- with CODE (540) Electric rear window roller blind

Function Diagram:

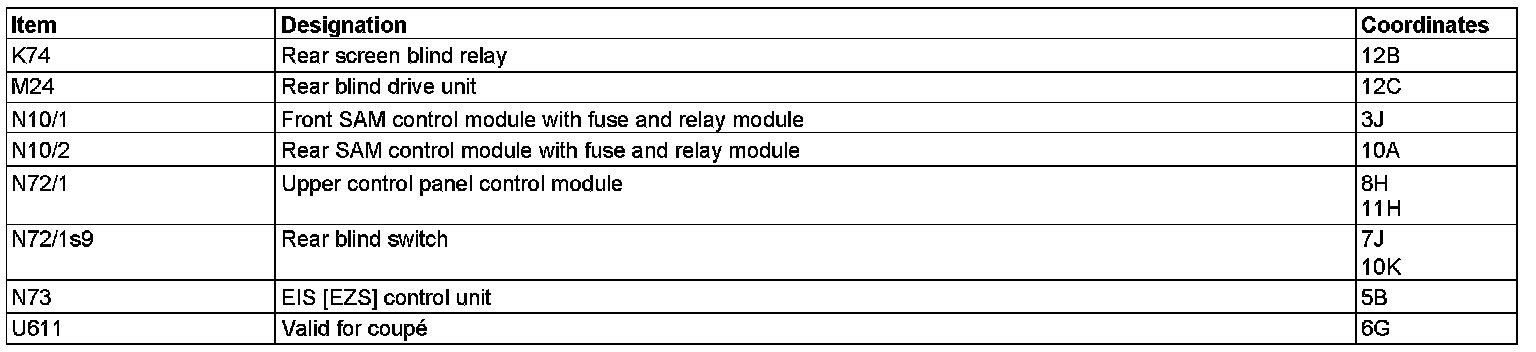

Component Description/Coordinates, K74 To U611:
