Quarter Window Regulator: Service and Repair

AR67.39-P-4150Q Remove/Install Electric Power Window on Rear Side Window

1 Remove rear side window glass

DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

2 Disconnect ground cable of battery

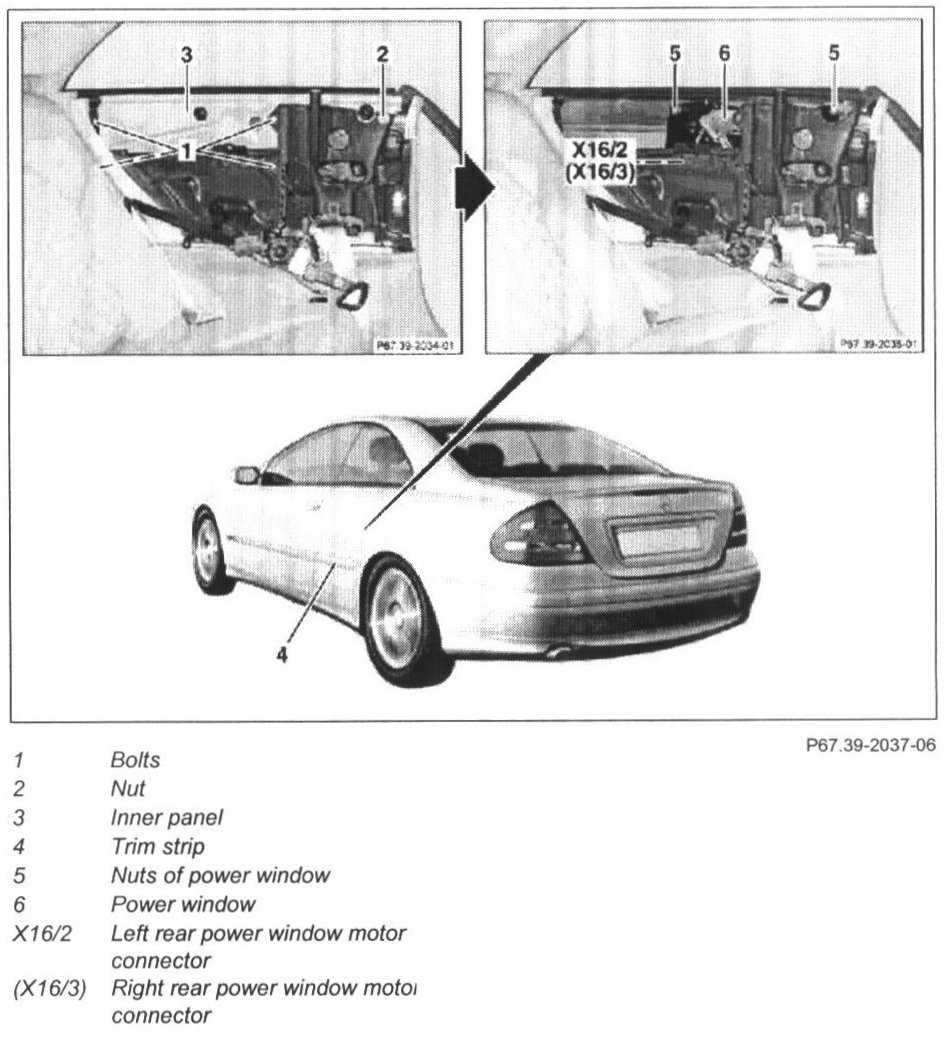

3 Unscrew bolts (1)
4 Slacken nut (2)
5 Take out inner panel (3) toward top
6 Unclip trim strip (4) at rear fender
- See Special Tools below

7 Detach adhesive tape
8 Unscrew bolt
- See Special Tools below

9 Disconnect left rear power window motor connector (X16/2)

NOTE: Left rear power window motor connector (X16/2) or right rear power window motor connector (X16/3).

10 Unscrew nuts of power window (5)
11 Take out power window (6) through access opening
12 Install in reverse order
13 Perform basic programming
14 Read diagnostic trouble code memory and erase
15 Check for proper function

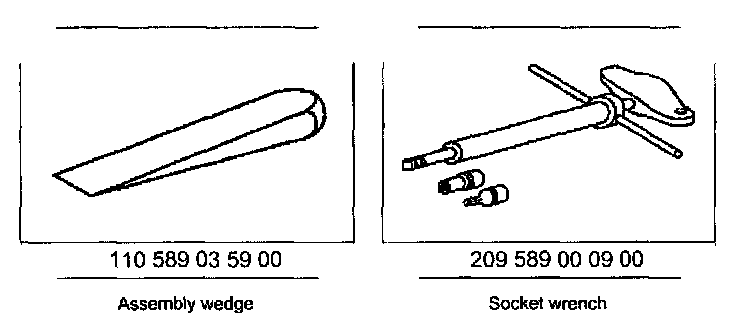

Special Tools
