Window Frame: Service and Repair

AR67.30-P-4020Q Remove/Install Ornamental Frame at Side Windows







Remove
1 Open rear side window

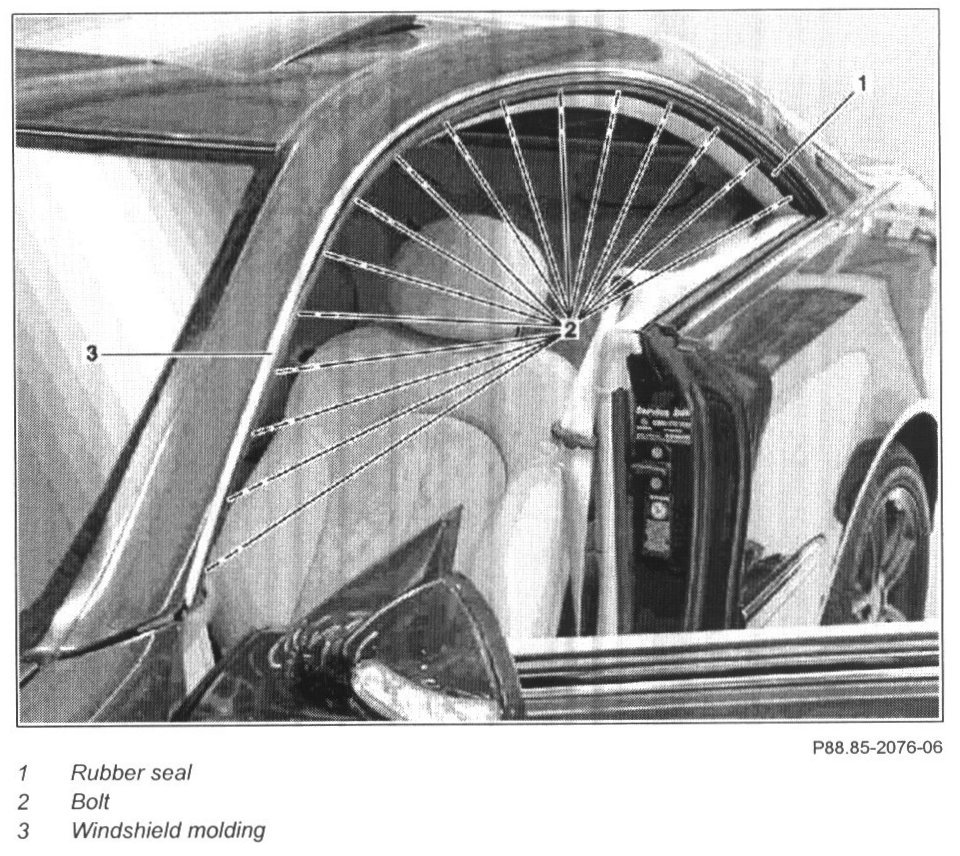

2 Detach rubber seal (1)

NOTE: Starting at A-pillar.

3 Unscrew screw (2)
4 Remove ornamental frame (3)

Install
5 Attach ornamental frame (3)
6 Screw in bolts (2)
7 Press in rubber seal (3).

NOTE: Starting at A-pillar. Pay attention to correct seating of rubber seal (3).

8 Align rubber seal (3) in area of headliner
9 Close rear side window
