Quarter Window Motor: Service and Repair

AR67.39-P-4160Q Remove/Install Power Window Motor For Rear Side Window







1 Remove power window of rear side window and put down on a suitable base

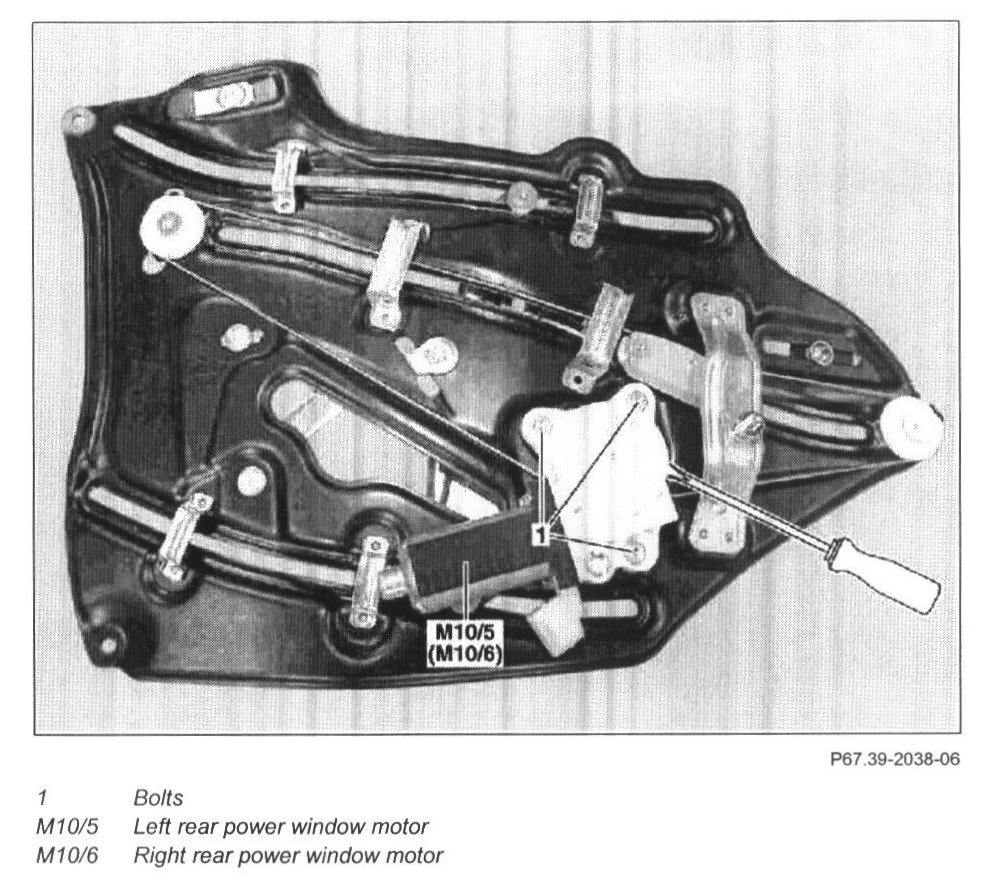

2 Unscrew screws (1)
- Bolt of motor of electric power window of rear side window = 4.5 Nm
3 Press cable roller with a suitable screwdriver downward
4 Remove left rear power window motor (M10/5) toward top

NOTE:
- Left rear power window motor (M10/5), or right rear power window motor (M10/6).
- Installation: Coat gear on left rear power window motor (M10/5)/right rear power window motor (M10/6) with Isoflex Topas L 32.

- Isoflex Topas L 32
5 Install in reverse order
