GF72.29-P-3009Q Power Window Automatic Lowering, Function

GF72.29-P-3009Q Power Window Automatic Lowering, Function

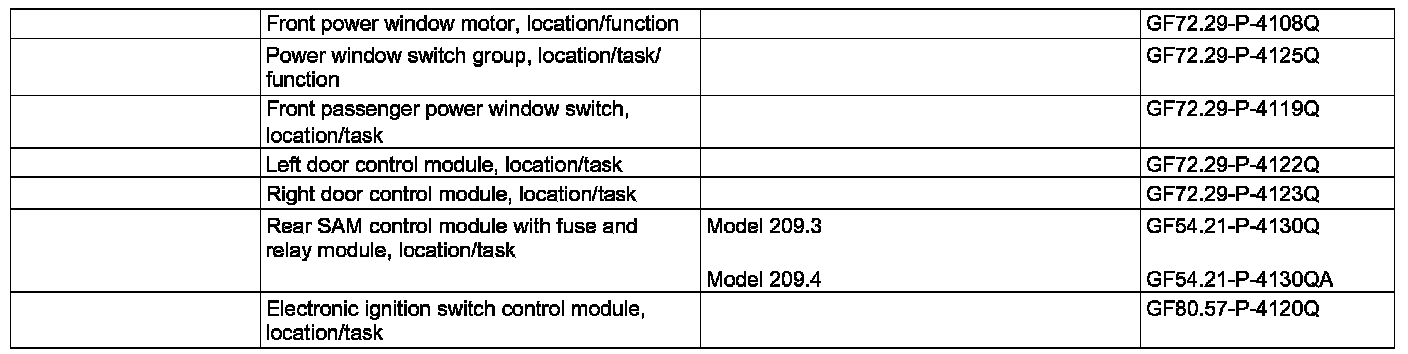

Component Identification:

Function prerequisites:
^ No overvoltage or undervoltage
^ Circuit 15 ON or circuit 15R ON

The automatic lowering function is only possible for the windows in the door

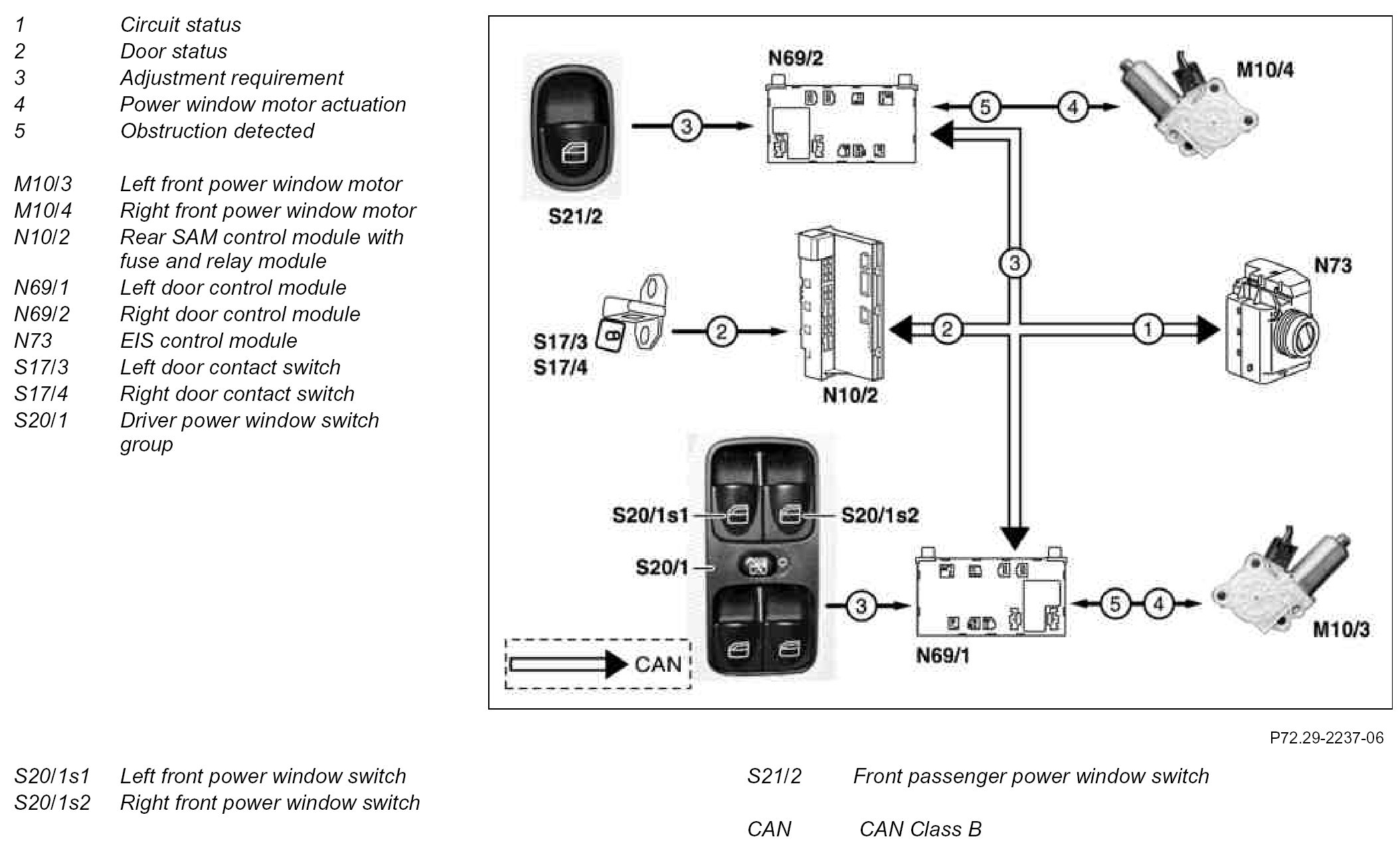

Driver-side control point
The window in the driver and passenger door can be opened automatically via the left front power window switch (S20/1s1) and right front power window switch (S20/1s2).
For this purpose, momentarily actuate left front power window switch (S20/1s1) and right front power window switch (S20/1s2) beyond the catch point.The corresponding signal is read in by the left door control module (N69/1).
The left front power window motor (M10/3) is directly actuated by the left door control module (N69/1).
The requests for the right front power window motor (M10/4) are transmitted to the right door control module (N69/2) via CAN class B bus, which then actuates the right front power window motor (M10/4).

Passenger control point
The window in the passenger door can be opened via the front passenger power window switch (S21/2).
For this purpose momentarily actuate front passenger power window switch (S21/2) beyond catch point.The opening request is read in by the right door control module (N69/2).
The right front power window motor (M10/4) is actuated directly by the right door control module (N69/2).

The window can be stopped by reactuating (momentarily pressing) the corresponding power window switch (S20/1s1, S20/1s2 or S21/2).

The windows can still be opened or closed for 5 min. after switching off circuit 15R as long as the doors are not opened. The valid door status (door open or closed) is transmitted to the rear SAM control module with fuse and relay module (N10/2) by the left door contact switch (S17/3) and right door contact switch (S17/4), which then relays the information to the CAN class B bus. When a door is opened or the vehicle is locked all active power window functions are terminated
