GF72.29-P-3004Q Power Window Convenience Opening, Function

GF72.29-P-3004Q Power Window Convenience Opening, Function

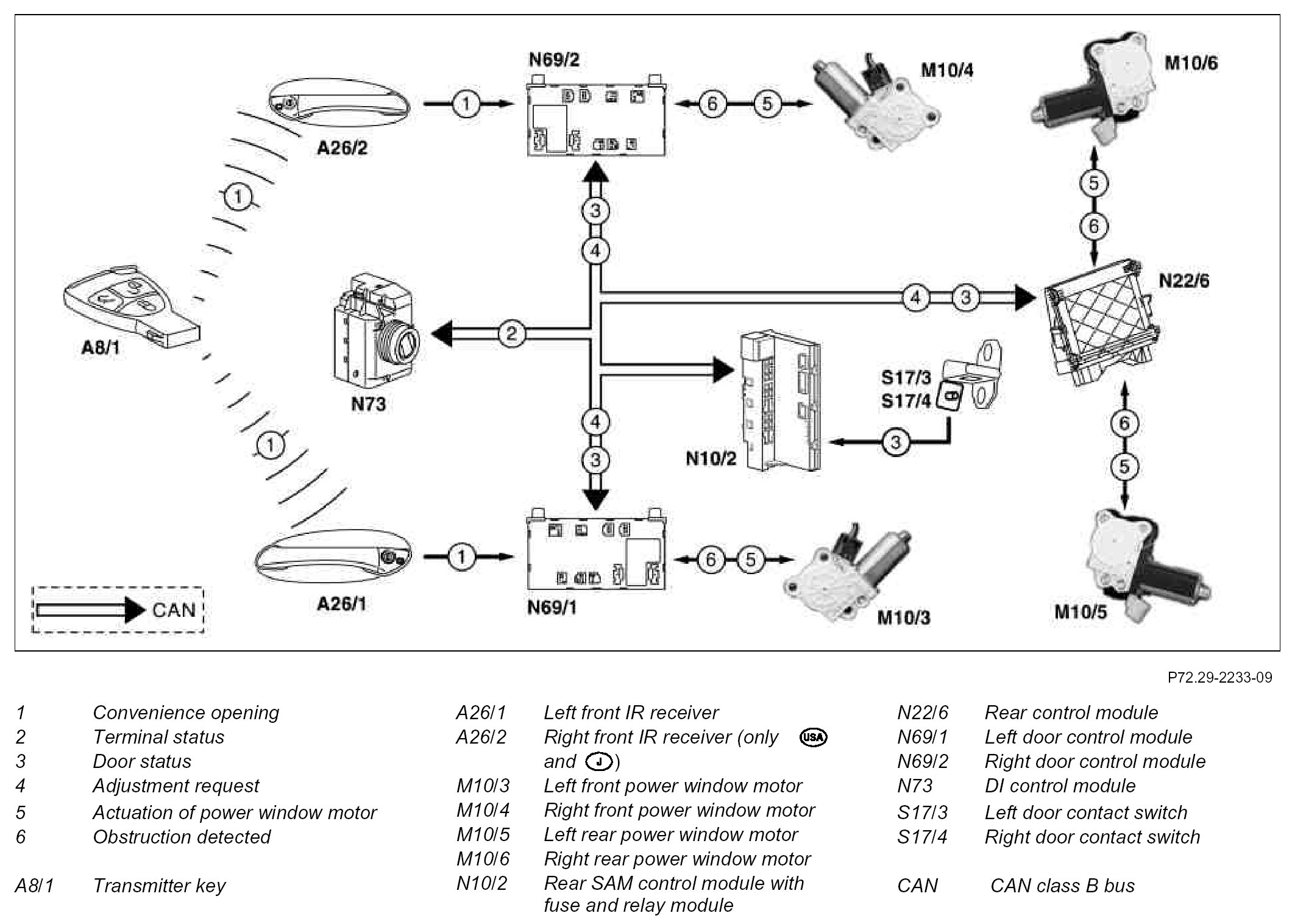

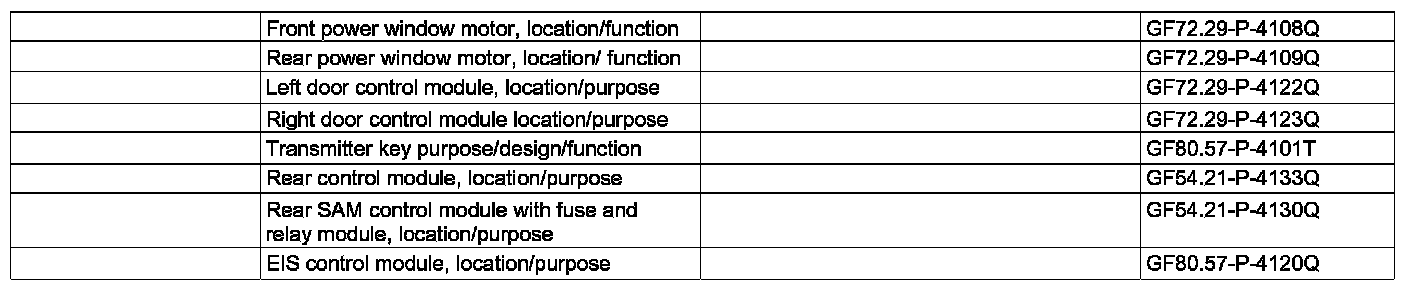

Component Identification:

Function prerequisites
^ Valid Ident. code via infrared
^ No circuit switched
^ No overvoltage or undervoltage
^ All doors closed (Status: Central locking locked)

The convenience opening feature is performed even when the windows are not synchronized

Abort
The convenience opening function is aborted if
^ the request is no longer received via the CAN class B bus or
^ the function requirements listed above are no longer satisfied.

Function
Press the "Unlock" button on the remote control key (A8/1) for longer than 1 s and hold down (while pointing at the left front IR receiver (A26/1)).
The actuation request is transferred from the left front IR receiver (A26/1) to the left door control module (N69/1), which relays the information via the CAN class B bus to the right door control module (N69/2) and rear control module (N22/6).
The left front power window motor (M10/3) is actuated by the left front door control module (N69/1) and the right front power window motor (M10/4) by the right door control module (N69/2).
The left rear power window motor (M10/5) and right (M10/6) are actuated by the rear control module (N22/6).

On vehicles with United States of America or Japan version, the right front IR receiver (A26/2) is also installed. This relays the signal to the right door control module (N69/2).
