AR26.60-P-0600PA Remove/Install Floor Shift



AR26.60-P-0600PA Remove/install floor shift
- with transmission 716.6 with single-rod gearshift

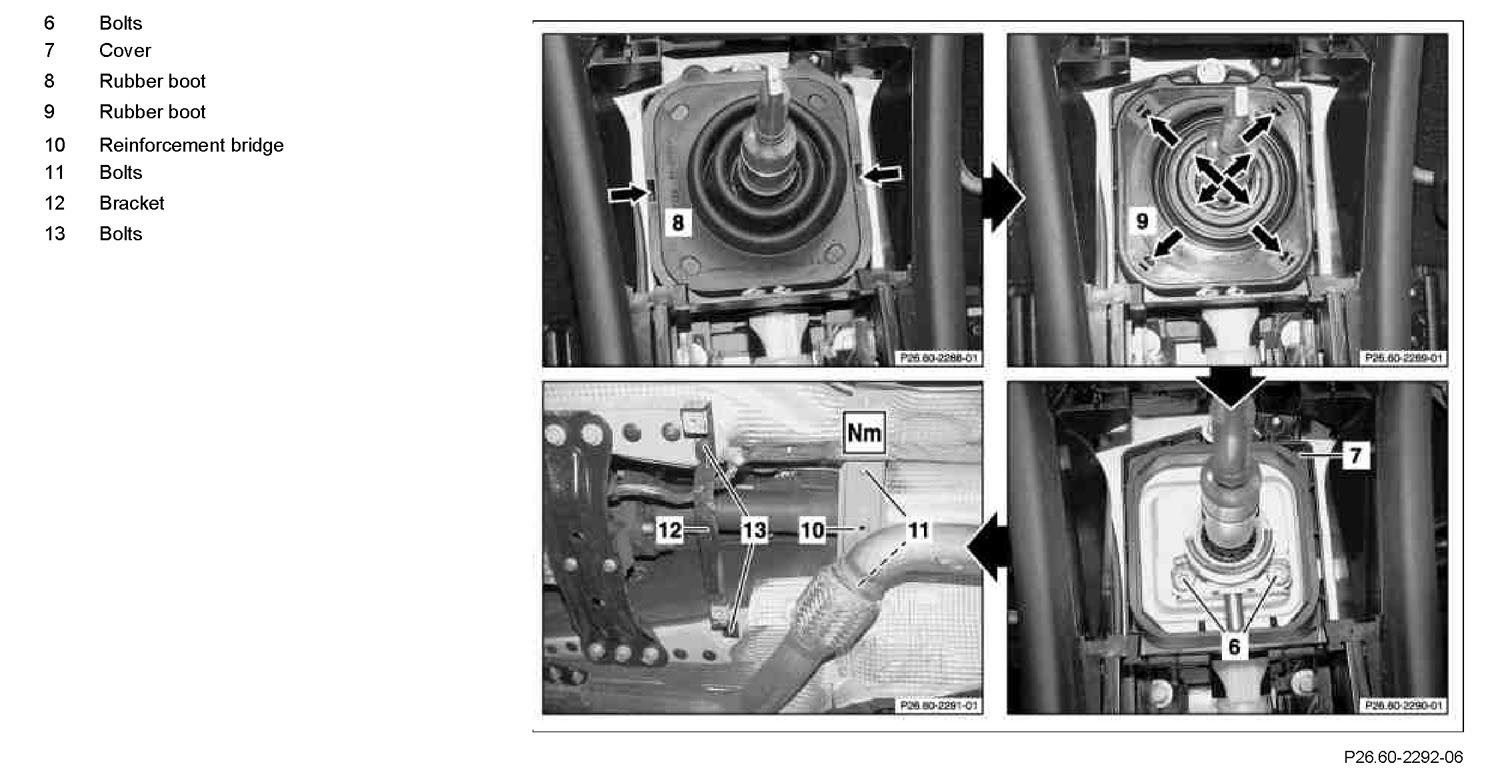

Component Identification:




Component Identification:




Steps 1 - 3:

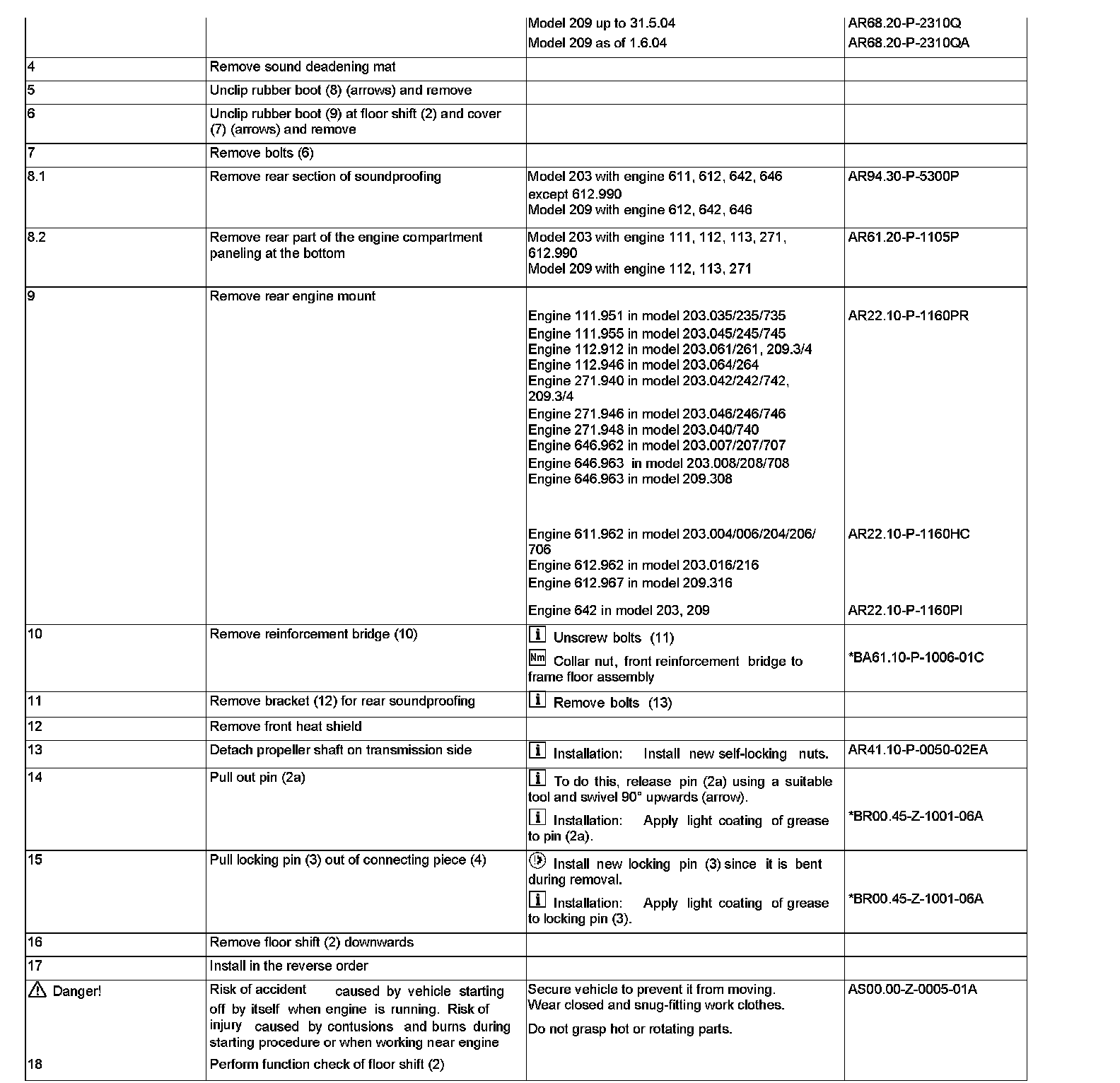

Steps 4 - 18:

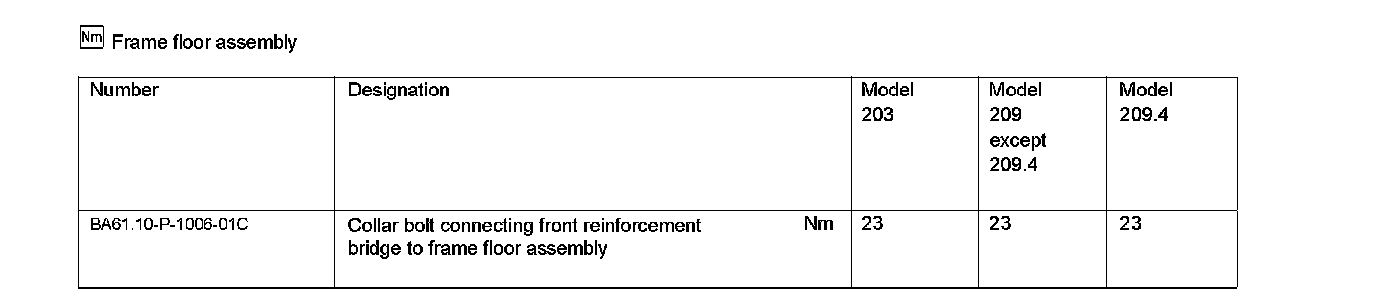

Frame Floor Assembly:

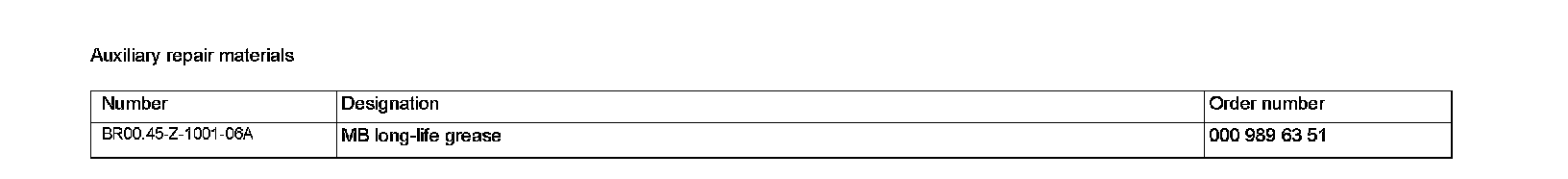

Auxiliary Repair Materials:
